Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
Specifications
Brand Name :
HUITONG
Model Number :
HT123
Certification :
ISO9001
Place of Origin :
Guangzhou
MOQ :
1 piece
Price :
$1750-1800
Payment Terms :
T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
15-20days
Warranty :
Six months
Hose For Rotatiing :
3/8 Inch BSP
Jaw Opening :
2300mm,2.5M
Application :
Grabbing Steel Scrap
Power :
hydraulic
Closed Volume :
0.31cum
Color :
Yellow
Structure :
Simple and durable structure
Bucket Capacity :
0.8 Cum
Package :
Wooden Case Packing
Close Height :
1890 mm
Opening Width :
1000-2200mm
Rotation Angle :
360 degrees
Grab Flow :
80~200L/min
Pressure :
100-130
Description

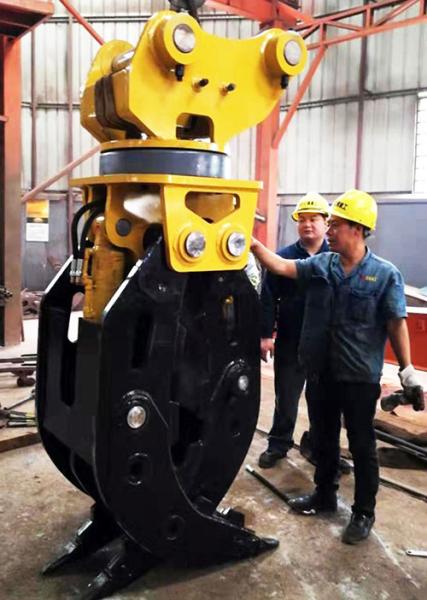

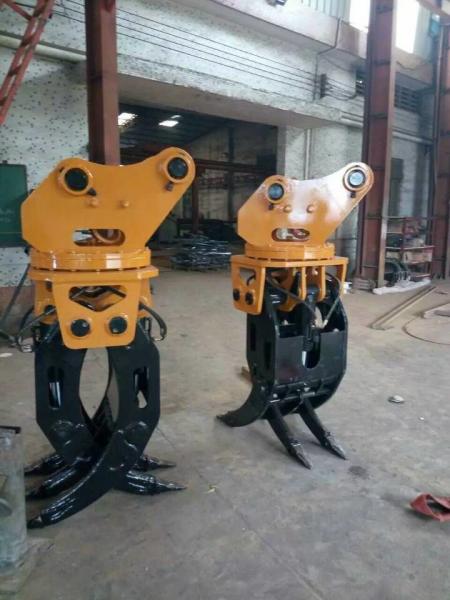

Excavator Rotating Grapple

Production Description

HT Excavator Rotating Grapple, also called "Excavator Log Grab, Timber Grab", adopts Q690 High Strength Steel and advance rotating motor. 360-degree clockwise or anticlockwise rotation and the rotation speed can be controlled by operator, special rotary gears are used to prolong lifespan and lower the cost, fit for all operations where there need grappling and loading, such as stone, timber, waste, tube operations, garden and stone laying projects

Advantages

1. Material:

1) Entire jaw structure is manufactured of quenched and tempered Q690 High Strength alloy steel, 130,000-psi min. yield 360-440
BHN. Instead of traditional Q355b.
2) The tine tips are 175,000-psi min. yield 450-550 BHN. Chromium plating.

2. Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
3) Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
Moment Torque 26kN.m-203kN.m(150,000lbf.ft)

3. Strengths:
1) Sealed type rotary drive solve the oil leakage problem, only required light greasing(80g of grease) once 6 months(unlike most
of the product on the market needed greasing everyday) and better protect the product.
2) Motor drive adopted symetrical double support design, reducing the bearing load and extend service life.
3) The jaw structure is manufactured of Q690 High Strength Alloy Steel, lighter weight with twice of the strength comparing with
Q345(normally used on the market)

Specification
Grapple
Machine Tonnage Description Max.Opening ranging(in) Weight(lbs) Material
6-10T Rotating/non-rotating 57.1 1430/1562 Q690+NM360
11-16T Rotating/non-rotating 66.9 1760/1914 Q690+NM360
17-20T Rotating/non-rotating 74.8 2134/2310 Q690+NM360
21-24T Rotating/non-rotating 80.7 2354/2530 Q690+NM360
25-30T Rotating/non-rotating 86.6 2640/2860 Q690+NM360
31-35T Rotating/non-rotating 90.6 3080/3344 Q690+NM360
36-40T Rotating/non-rotating 94.5 3630/3938 Q690+NM360
41-45T Rotating/non-rotating 98.4 4268/4620 Q690+NM360
65T Rotating/non-rotating 98.4 8140/9240 Q690+NM360

Material

Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Rotating Grapple.

Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.


Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.Q355B High-Quality 47'' Excavator Hydraulic Ratating Grapple Customizable Color Customizable Design.
