360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools
Specifications
Brand Name :
HUITONG
Model Number :
Concrete Pulverizer
CertifiPCion :
CE
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
$ 200-2000 per pcs
Payment Terms :
Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability :
500 pcs/ moth
Delivery Time :
5-8 days
Warranty :
6 Months-12months
Material :
NM360/400
After-sales service provided :
Engineers available to service machinery overseas
Weight :
890kgs-4200kgs
Product name :
concrete pulverizer,Hydraulic Concrete Demolition Equipment Multi Processor Pulverizer
Packing :
Pallet with wrapping or Customization
Jaw opening :
0-890MM
Suitable :
13t-50t Excavator and backhoe
Description

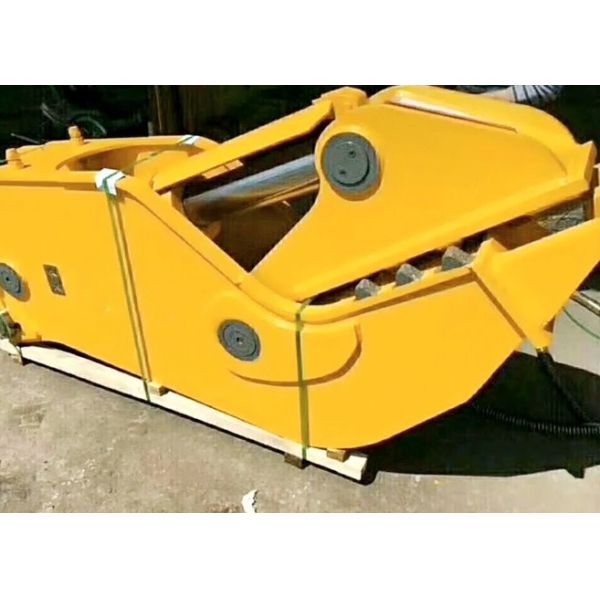

20 Ton Demolition Tools Excavator Hydraulic Concrete Crusher / Pulverizer


Production Description

Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.

1.Large bore dual cylinders: Strong power and excellent durability.
2. Speed up valve: Fast cycle time.
3. Lighter and stronger structure: High tensile special steel plate.
4. 360 degree hydraulic rotation optional.
5. Working efficiency is two or three times of hydraulic breaker
6. Large opening design,working easily and conveniently.
7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time.
8. Low noise, can be used for city and high-tech zone demolition project.

MCP600 MCP800 MCP910 MCP1000
Jaw opening A(mm) 800 1050 1100 1350
Height B(mm) 1800 2030 2200 280
Width C(mm) 415 550 605 660
Jaw depth C(mm) 730 810 900 1160

Tip 2: Makesure of the weight of excavator, the oil flow and the working pressure of your excavator.

MCP600 MCP800 MCP910 MCP1000
Excavator weight (t) 10-18 18-25 25-35 35-45
Tool weight* (kg) 1000 2050 2850 3800
Cylinder force (t) 100 145 157 197
Force at upper tips F1
(front teeth)		 (t) 54 73 99 123
Force in the middle F2
(middle of blade)		 (t) 79 115 153 195
Cutting force F3 (t) 155 196 276 348
Hydraulic working pressure (bar) 280-320 280-320 280-320 280-320
Oil flow (l/min) 100-180 180-220 220-280 280-320
Rotation type NO ROT. NO ROT. NO ROT. NO ROT.
Time of closing
at max oil flow		 (s.) 3,09 2,28 2,94 3,50
Time of opening
at max oil flow		 (s.) 1,88 2,26 2,74 3,36
N°of cycles per minute
at max oil flow		 (cycles/min) 12,1 13,2 10,6 8,7
Hyd. ports size cylinder / 1’’ SAE
6000 p.s.i.		 1’’ SAE
6000 p.s.i.		 1’’1/4 SAE
6000 p.s.i.		 1’’1/4 SAE
6000 p.s.i.
Speed valve / Optional Yes Yes Yes
Max diameter to be cut** (mm) 50 55 60 65
Blade length (mm) 122 180 180 220
Interchangeable wear parts / NO Yes Yes Yes
Automatic grease system / NO NO NO NO

Quality is guaranteed

Faster

Safer

1.12 month after-sales warranty

2. We have the profession team (Pre-sale service, Technical team, After-sales service.) and will solve all your problems.

3.13 years working experience in this filed.
We are near Shanghai Port,
Ningbo Port.
Our hot sale products will
be deliveied within 7days.

1.We have joined the Trading Assurance

2. All products are packed by plastic paper with the wooden box.

Advantages

1. The working efficiency is 3-5 times higher than the traditional hydraulic breaker;
2. Larger opening, larger bite force, smaller bite gap;
3. Adopt high strength, light and wear-resisting manganese plate, long working life;
4. Easy to disassemble and install, unique oil circuit design, fast cylinder speed;
5. Flexible and convenient operation, low noise and no vibration.
