20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
Specifications
Brand Name :
HUITONG
Model Number :
Pile Hammer
CertifiPCion :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
$500-5000 USD
Payment Terms :
Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability :
200 PCS / Month
Delivery Time :
5-8 days
Marketing Type :
New Product 2020
Model Number: :
Excavator Mechanical Grapple
Suitable Excavator(ton) :
0, 20, 30, 40, 50, 60, 70, 80, 90
MOQ: :
1 PCS
Material: :
Q345/Q460/NM360/NM400/WH60/Hardox
Suitable: :
1t-50t Excavator
Loading capacity: :
1.2m3~60m3
Advantage: :
Long Working Life
Description

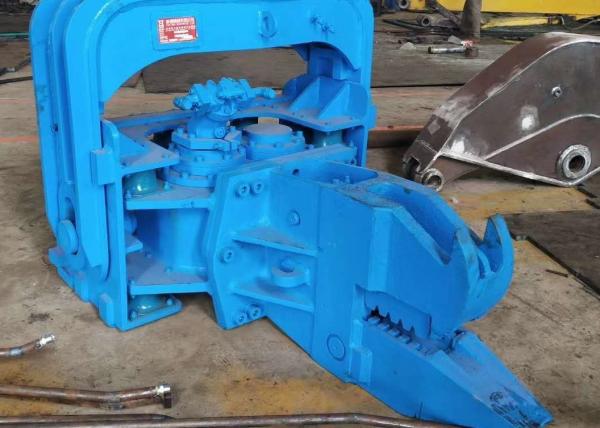

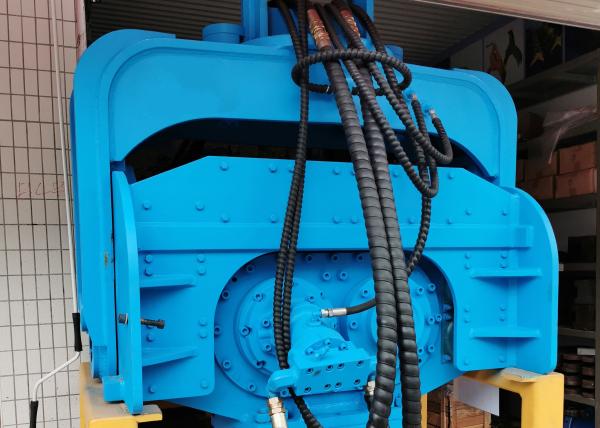

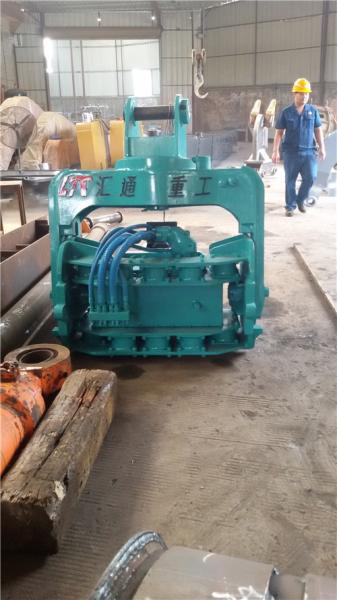

20 To 30 Ton Excavator Hammer Pile Driver Attachment For Excavators

Product Description

- Improving the efficiency of pile driving and extracting
- Hydraulic titing easy pile angle control is able by a powerful
- They can be used underwater
- Double bearing structure

VIBRATION SUPPRESSOR
This is the part of the Vibrator coupled to the boom. It’s connected to the Gear Housing using Elastomers that allows a traction during extractions.

HYDRAULIC CLAMP

Clamp cylinders are made from solid blocks to eliminate troublesome guards and tie-rods It’s well suited for any type of sheet piling job

Product Name
Excavator Pile Hammer
Features
1.Changeable pump, may properly revision the vibration frequency.
2.general piling work
3.Saves time in the pile driving or pile pulling.
4.Adopt rubber pad to reduce noise and vibration on the outside.
5.Hydraulic oil motor is small but generates high drive power and speed.
Machine Weight
20-90T
AppliPCion
vertical drainage, municipal, bridges, cofferdam, building foundation,

Model
Units
h08
h10
h14
Excavator
Ton
20-30
30-40
40-45
Frequency
rmp
3000
2800
2800
Hz
50
45
45
Centrifugal Movement
kN
500
650
750
Eccentric Moment
Kgm
5
5
6
Oil Pressure
Bar
250
250
280
Oil Flow
L/min
160
180
210


Hydraulic pile driver is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil. Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force. Excitation force needed by pile driving machinery are comprehensive determined by site soil, soil condition, moisture content and type of pile, construction.

20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity20 Ton Excavator Pile Hammer Driver Attachment 1.2m3 Loading Capacity
