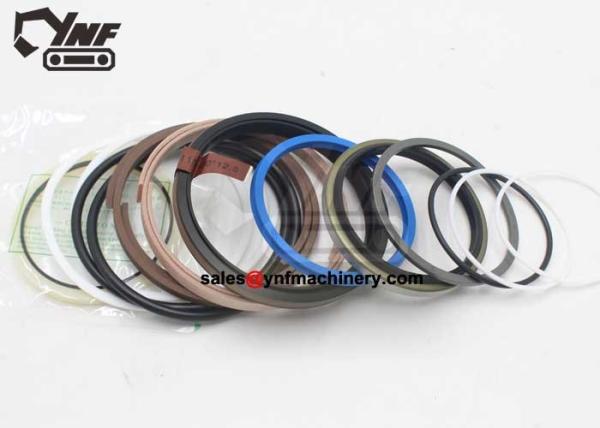

R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A
Specifications
Brand Name :
YNF
Model Number :
31Y1-20430
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
contact our sales
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
3 working days
Packaging Details :
YNF packing, neutral packing
Part number :
31Y1-20430
Application :
Excavator
Color :
Black, Red, White
Durability :
High Durability
Lifespan :
Long Lifespan
MOQ :
1 Piece
Material :
Rubber, Metal, Plastic
Packaging :
Carton Box
Pressure :
High Pressure
Product Name :
Excavator Seal Kits
Size :
Various Sizes
Temperature :
High Temperature
Weight :
Varies
Description

R160-7 Hyundai Excavator Boom Cylinder Seal Kit 31Y1-20430 R160LC-7 R160LC-7A

Parts on group BOOM CYLINDER:

Pos. Part No Qty Parts name Comments
*. 31N5-50110 [1] CYLINDER ASSEMBLY,LH
*. 31N5-50120 [1] CYLINDER ASSEMBLY,RH
*-1. 31Y1-20380 [1] BOOM CYL SUB ASSEMBLY WITHOUT PIPE
1. 31Y1-20350 [1] TUBE ASSEMBLY
2. 31Y1-04090 [1] ROD ASSEMBLY
3. 31Y1-04120 [1] GLAND
4. S732-080040 [1] BUSHING
5. Y191-086000 [1] RING-SNAP
K6. Y200-080011 [1] SEAL-ROD
K7. Y180-080020 [1] RING-BACK UP
K8. Y240-080011 [1] RING-BUFFER
K9. Y110-080011 [1] WIPER-DUST
10. Y190-094000 [1] RING-SNAP
K11. S631-105004 [2] O-RING
K12. S641-105002 [1] RING-BACK UP
K13. S641-105003 [1] RING-BACK UP
14. 31YC-21050 [1] RING-CUSHION
15. 31Y1-03660 [1] PISTON
K16. S632-070004 [1] O-RING
K17. S642-070003 [2] RING-BACK UP
K18. Y420-115000 [1] SEAL-PISTON
K19. Y310-115000 [2] RING-WEAR
K20. Y440-115000 [2] RING-DUST
21. 31YC-61050 [1] NUT-LOCK
22. S109-180604 [9] BOLT-SOCKET
28. 31YC-11075 [1] BUSHING-PIN
29. 31YC-11085 [1] BUSHING-PIN
30. S700-075205 [2] SEAL-DUST
31. Y000-070200 [2] SEAL-DUST
23. 31Y1-04130 [1] BAND ASSEMBLY-LH
23. 31Y1-04020 [1] BAND ASSEMBLY-RH
23-1. 31Y1-04140 [1] BAND SUB ASSEMBLY,LH
23-1. 31Y1-041R0 [1] BAND SUB ASSEMBLY-RH
23-2. 31YC-32020 [1] BAND
23-3. S071-022730 [2] U-BOLT
23-4. S011-100352 [4] BOLT-HEX
23-5. S201-101002 [4] NUT-HEXAGON HEAD
23-6. S411-100002 [8] WASHER-SPRING
24. 31Y1-20390 [1] PIPE ASSEMBLY-R,LH
24. 31Y1-20400 [1] PIPE ASSEMBLY-R,RH
25. 31Y1-20410 [1] PIPE ASSEMBLY-B,LH
25. 31Y1-20420 [1] PIPE ASSEMBLY-B,RH
K26. Y171-019004 [2] O-RING
27. S107-100454 [8] BOLT-SOCKET HEAD
K. 31Y1-20430 [1] SEAL KIT

SEE ILLUST
  • MODEL APPLIED: Replacement part boom seal kits 31Y1-20430 for Hyundai R180LC-7 excavator parts
  • MATERIAL PROPERTIES: Resistance to Friction and Wear, Weather Resistance, Oil Resistance, Non-toxic, Safety and Long-Time Uses, High and Low Pressure Resistance.
  • EASY INSTALLATION: YNF excavator seal kit parts are built to OEM specifications and testing. Match your digging excavator machine perfectly!
  • FAST DELIVERY: The R180LC-7 boom Seal kit will be shipped in the fastest way.
  • R160LC-7, R160LC-7A Adj Boom LH Cylinder# 31N5-52911
  • R160LC-7, R160LC-7A Adj Boom RH Cylinder# 31N5-52921
  • R160LC-7, R160LC-7A Boom LH Cylinder# 31N5-50110
  • R160LC-7, R160LC-7A Boom RH Cylinder# 31N5-50120
  • 80mm Rod x 115mm Bore
  • Includes Wiper, U seal, Buffer seal, and 4 pc Capped T seals
  • Hyundai HCE SEAL KIT 31Y1-20430 genuine, new aftermarket tractor parts with delivery
    R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A
