VOE14608847 VOE14531093 VOE14608847 Travel Reduction Gear Applied To Vo-lvo EC460B
VOE14608847 VOE14531093 VOE14608847 Travel Reduction Gear Applied To Vo-lvo EC460B
VOE14608847 VOE14531093 VOE14608847 Travel Reduction Gear Applied To Vo-lvo EC460B
VOE14608847 VOE14531093 VOE14608847 Travel Reduction Gear Applied To Vo-lvo EC460B
Specifications
Brand Name :
OEM
Model Number :
VOE14608847 VOE14531093 VOE14608847
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Excavator Final Drive
Excavator Model :
EC460BLC
Excavator Brand :
Vo-lvo
Parts No. :
VOE14608847 VOE14531093 VOE14608847
Packing :
Wood Box, Standard Carton, Pallet
Condition :
Brand new, genuine
Description

  • VOE14608847 VOE14531093 VOE14608847 Travel Reduction Gear Applied To Vo-lvo EC460B

  • Spec Sheet

Parts Name Excavator Final Drive EC460B
Application Vo-lvo
Category Final Drive
Item Condition Unused, undamaged, brand new
MOQ 1

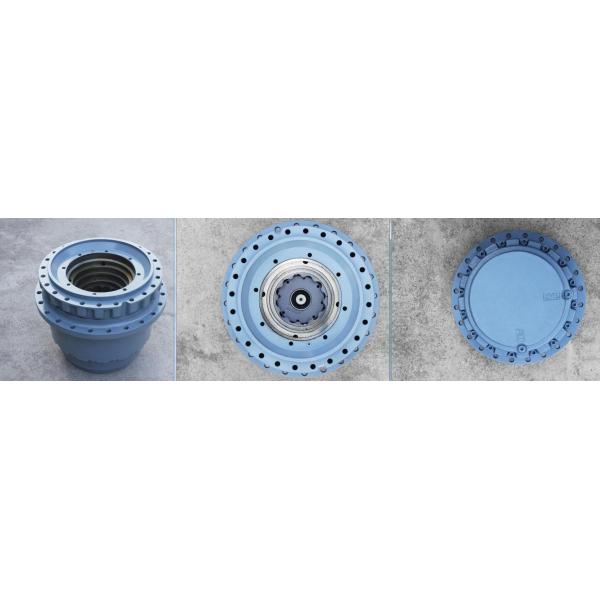

  • Product photos

VOE14608847 VOE14531093 VOE14608847 Travel Reduction Gear Applied To Vo-lvo EC460B

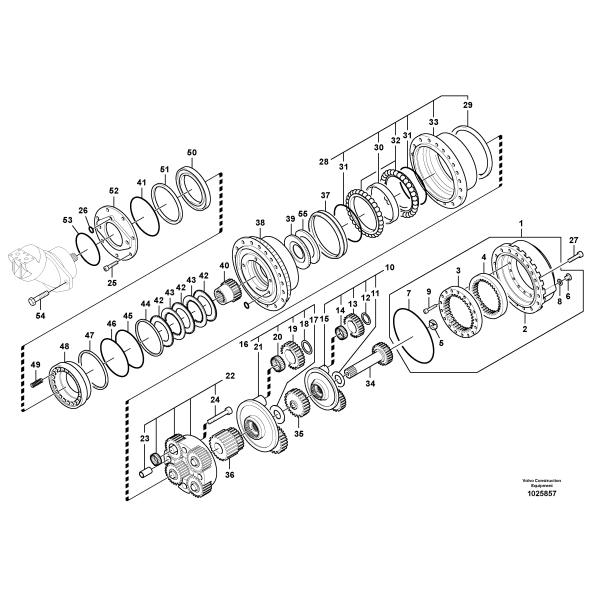

  • Parts Diagram
VOE14608847 VOE14531093 VOE14608847 Travel Reduction Gear Applied To Vo-lvo EC460BVOE14531093[1]-
Reduction Gear S/N 10001-11952 .
VOE14608847[1]-
Reduction Gear S/N 11953- .
1.SA8230-09980[1]-
Cover S/N 10001-11952 .
VOE14604651[1]-
Cover .
2. [1]-
Cover
3.VOE14541738[1]-
Ring .
4. [1]-
Ring
5.VOE11701193[1]-
Friction washer .
6.VOE14262071[2]-
Plug .
7.VOE11701192[1]-
O-ring .
8.VOE14262070[2]-
Washer .
9.VOE14541740[16]-
Screw .
10.VOE11706896[1]-
Reduction gear .
11.SA8230-21320[1]-
Ring .
12.VOE14541726[3]-
Clip .
13.SA8230-21130[3]-
Planetary Gear .
14.SA8230-22070[3]-
Roller bearing .
15.VOE14541741[1]-
Case .
16.SA8230-35760[1]-
Reduction gear
17.SA8230-21310[1]-
Ring
18.VOE14541743[4]-
Clip
19.SA8230-21170[4]-
Planetary Gear
20.SA8230-22080[4]-
Roller bearing
21.VOE14541742[1]-
Case
22.VOE14608963[1]-
Planet carrier
23.SA8230-35600[4]-
Bushing
24.VOE14604652[4]-
Screw S/N 10001-11952
VOE14608962[4]-
Screw
25.SA8230-22290[4]-
Screw
26.SA8230-22110[4]-
O-ring
27.SA8230-35430[1]-
Screw
28.SA8230-35780[1]-
Housing
29.VOE14541746[1]-
Bushing
30.VOE14541747[1]-
Spacer
31.VOE14541748[2]-
O-ring
32. [1]-
Bearing
33.VOE14541745[1]-
Case
34.VOE11706895[1]-
Sun gear
35.SA8230-35550[1]-
Sun gear
36.SA8230-35560[1]-
Sun gear
37.VOE15175856[1]-
Ring
38.SA8230-35510[1]-
Hub S/N 10001-11660
38.VOE15156998[1]-
Kit
38.VOE14604655[1]-
Adapter
38.VOE14604802[1]-
Hub S/N 11661-
39.VOE14535329[1]-
Retainer S/N 10001-11660
40.SA8230-35520[1]-
Shaft
41.VOE11701198[1]-
O-ring
42.SA8230-35640[7]-
Disc S/N 10001-11660
VOE14604484[7]-
Disc S/N 11661-
43.SA8230-35630[6]-
Ring
44.SA8230-22380[1]-
Ring
45.SA8230-22170[1]-
O-ring
46.SA8230-22180[1]-
O-ring
47.SA8230-22390[1]-
Ring
48.VOE14604654[1]-
Piston
49.VOE11702537[21]-
Spring
50.SA8230-35590[1]-
Spacer
51.SA8230-35420[1]-
Clip
52.SA8230-35570[1]-
Adapter S/N 10001-11660
VOE14604655[1]-
Adapter S/N 11661-
53.VOE11707954[1]-
O-ring
54.SA8230-22050[2]-
Screw
55.VOE14604803[1]-
Clip
  • Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

  • Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
