191-2578 148-4637 Excavator Swing Planetary Carrier Applied To 320C 320D Swing Drive
191-2578 148-4637 Excavator Swing Planetary Carrier Applied To 320C 320D Swing Drive
191-2578 148-4637 Excavator Swing Planetary Carrier Applied To 320C 320D Swing Drive
191-2578 148-4637 Excavator Swing Planetary Carrier Applied To 320C 320D Swing Drive
191-2578 148-4637 Excavator Swing Planetary Carrier Applied To 320C 320D Swing Drive
191-2578 148-4637 Excavator Swing Planetary Carrier Applied To 320C 320D Swing Drive
Specifications
Brand Name :
OEM
Model Number :
320C 320D
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Excavator Swing Gear
Excavator Model :
E320C 320D
Parts No. :
191-2578 148-4637
Material :
Forged Iron, Steel
Warranty :
6 Months
Package :
standard export carton
Description

  • 191-2578 148-4637 Excavator Swing Planetary Carrier Applied To 320C 320D Swing Drive

  • Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

  • Spec Sheet

Excavator spare parts name Swing reducer
Equipment Model 320 318
Parts Category excavator swing gear
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days

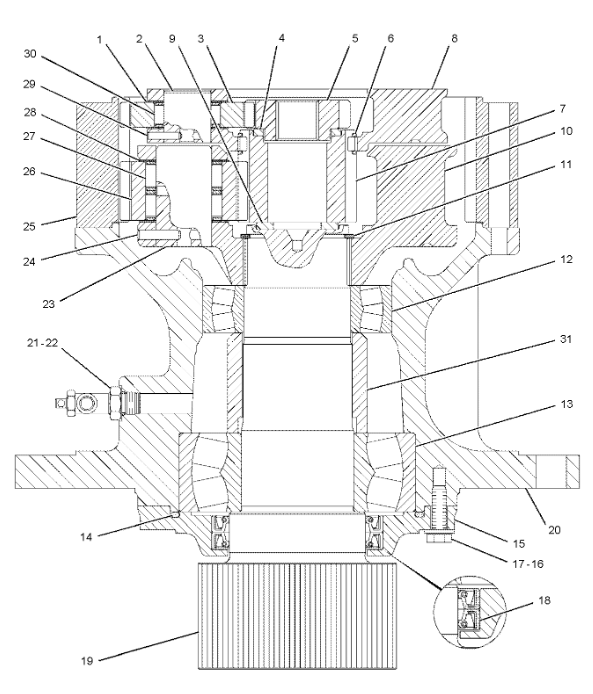

  • Parts Diagram

191-2578 148-4637 Excavator Swing Planetary Carrier Applied To 320C 320D Swing Drive

INDIVIDUAL PARTS:

1.094-0584[6] -
WASHER (40.3X72X1-MM THK)
2.094-1509[3] -
SHAFT-PLANETARY
3.148-4733[3] -
GEAR-PLANETARY (26-TEETH)
4.114-1581[1] -
SPACER (57.5X74X6-MM THK)
5.148-4732[1] -
GEAR-SUN (20-TEETH)
6.093-1729[2] -
RING-RETAINING
7.148-4632[1] -
GEAR-SUN (23-TEETH)
8.191-2578[1] -
CARRIER-PLANETARY
9.7Y-1434[1] -
SPACER (40X69.5X6-MM THK)
10.148-4637[1] -
CARRIER-PLANETARY
11.148-4640[1] -
RING-RETAINING
12.148-4643[1] -
BEARING
13.095-1022[1] -
BEARING-ROLLER
14.148-4642[1] -
SEAL-O-RING
15.227-6228[1] -
CAGE
16.453-3447 M[6] -
BOLT (M12X1.75X40-MM)
17.451-2182[6] -
WASHER-HARD (13.5X25.5X3-MM THK)
18.199-4561[2] -
SEAL-LIP TYPE
19.148-4636[1] -
SHAFT-PINION
20.148-4638[1] -
HOUSING
21.3K-0360[1] -
SEAL-O-RING
22.6V-7238[1] -
VALVE-SHUTOFF (SWING DRIVE)
23.148-4634[3] -
SHAFT-PLANETARY
24.095-0891[3] -
PIN-SPRING
25.148-4635[1] -
GEAR-RING (73-TEETH)
26.148-4633[3] -
GEAR-PLANETARY (25-TEETH)
27.7Y-0252[6] -
BEARING AS-ROLLER
28.094-0611[6] -
WASHER (47.3X76X1-MM THK)
29.095-0886[3] -
PIN-SPRING
30.094-1516[3] -
BEARING-ROLLER
31.171-9383[1] -
SPACER
1U-8846 BF-
SEALANT-GASKET
B
USE AS REQUIRED
F
NOT SHOWN

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* rust

  • Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
