• 1139708 1139723 1234605 ZX210W-3 ZX190W-3 ZX170W-3 Axel Gear Ring And Planetary Carrier Hitachi Parts

4651844[1] -

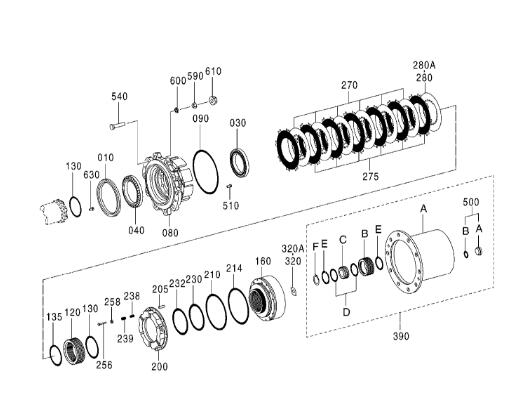

AXLE;REAR (12/12) This PART NO. consists of all parts shown in AXLE;REAR (1/12) to (12/12). .
010.1139701[2] -
RING .
030.0885002[2] -
BRG.;ROL. .
040.1139702[2] -
BRG.;ROL. .
080.1139703[2] -
HUB .
090.1139704[2] -
O-RING .
120.1139705[2] -
DISC;CARRIER .
130.1139706[4] -
O-RING .
135.1139707[2] -
O-RING .
160.1139708[2] -
GEAR;RING .
200.1139709[2] -
PISTON .
205.1139710[8] -
PIN .
210.1139711[2] -
PACKING;U-RING .
214.1139712[2] -
RING .
230.1139713[2] -
PACKING;U-RING .
232.1139714[2] -
RING .
238.0884527[16] -
SPRING;COMPRES. .
239.1139715[16] -
SPRING;COMPRES. .
256.1139716[16] -
BOLT .
258.0884530[16] -
SLEEVE .
270.1139717[14] -
CLUTCH;DISC .
275.1139718[12] -
CLUTCH;DISC 2.5mm .
280.+++++++[2] -
PLATE;CLUTCH ASS'Y
280A.1139719[1] -
CLUTCH;DISC 2.0mm .
280A.1139720[1] -
CLUTCH;DISC 3.0mm .
280A.1139718[1] -
CLUTCH;DISC 2.5mm .
320.+++++++[2] -
WASHER;THRUST ASS'Y
320A.0887047[1] -
WASHER;THRUST 1.5mm .
320A.1139721[1] -
WASHER;THRUST 1.7mm .
320A.0887049[1] -
WASHER;THRUST 2.0mm .
320A.0887050[1] -
WASHER;THRUST 2.2mm .
320A.0887051[1] -
WASHER;THRUST 2.5mm .
320A.0887052[1] -
WASHER;THRUST 2.7mm .
320A.1139722[1] -
WASHER;THRUST 3.0mm .
390.1139723[2] -
CARRIER;PLANET. .
390A.1139724[1] -
CARRIER;PLANET.
390B.1139725[3] -
GEAR;PLANETARY .
390C.0887042[3] -
BRG.;ROL. .
390D.0887044[6] -
WASHER
390E.0887045[6] -
RING;RETAINING
390F.1139727[3] -
RING;RETAINING .
500.+++++++[2] -
PLUG ASS'Y
500A.1139445[1] -
PLUG .
500B.0884348[1] -
O-RING .
510.0884555[4] -
BOLT;SOCKET .
540.1139729[20] -
BOLT .
590.4699343[20] -
WASHER;SPRING .
600.4699344[20] -
RING .
610.4699275[20] -
NUT .
630.1140941[2] -
BOLT;SOCKET .
