9066008 9080070 9096483 Travel Device Gearbox Applied To Hitachi EX200 Excavator Final Drive
9066008 9080070 9096483 Travel Device Gearbox Applied To Hitachi EX200 Excavator Final Drive
Specifications
Brand Name :
OEM
Model Number :
EX200
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Excavator final drive
Excavator Type :
Hydraulic crawler Excavator
Model :
EX200
parts no. :
9066008 9080070 9096483
Package :
standard wooden box
Warranty :
3/6 Months
Description

  • 9066008 9080070 9096483 Travel Device Gearbox Applied To Hitachi EX200 Excavator Final Drive

  • Spec Sheet

Excavator spare parts name final drive gearbox
Equipment Model Hitachi EX200
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days

  • Application

EXCAVATOR EX200 Hitachi

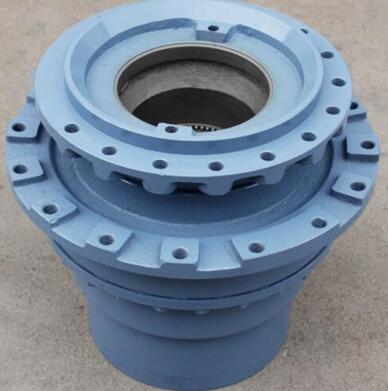

  • Product Photos

9066008 9080070 9096483 Travel Device Gearbox Applied To Hitachi EX200 Excavator Final Drive

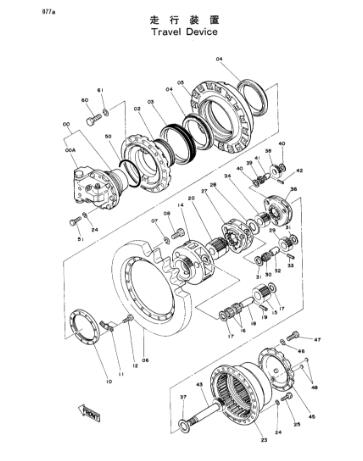

  • Parts Diagram

9066008 9080070 9096483 Travel Device Gearbox Applied To Hitachi EX200 Excavator Final Drive
00.9065944[1] -
MOTOR;OIL
00-51.9066008[2] -
TRAVEL DEVICE ASS'Y
00A.9065943[1] -
VALVE;BRAKE
02.1009855[1] -
HOUSING .
03.4514259[1] -
SEAL;GROUP .
04.4115169[2] -
BRG.;ROL .
05.1010010[1] -
DRUM
06.1010204[1] -
SPROCKET
07.A590920[16] -
WASHER;SPRING .
08.J932055[16] -
BOLT
10.3032083[1] -
NUT .
11.4178862[1] -
PLATE;LOCK .
12.J901020[2] -
BOLT
14.1009857[1] -
CARRIER .
15.3034323[3] -
GEAR;PLANETARY .
16.4183818[6] -
BRG.;NEEDLE .
17.4135227[6] -
PLATE;THRUST .
18.4139975[3] -
PIN .
19.4139998[3] -
PIN;SPRING .
20.3034324[1] -
GEAR;SUN .
23.1010509[1] -
GEAR;RING
24.A590916[26] -
WASHER;SPRING .
25.J931645[24] -
BOLT .
27.2022210[1] -
CARRIER
28.4183819[1] -
SPACER .
29.3034325[3] -
GEAR;PLANETARY .
30.4126657[3] -
BRG.;NEEDLE .
31.4192982[6] -
PLATE;THRUST .
32.4144558[3] -
PIN .
33.4169567[3] -
PIN;SPRING .
34.3034326[1] -
GEAR;SUN .
36.2020865[1] -
CARRIER .
37.4172391[1] -
SPACER .
38.3031946[3] -
GEAR;PLANETARY .
39.4172392[3] -
BRG.;NEEDLE .
40.4196488[6] -
PLATE;THRUST .
41.4172398[3] -
PIN
42.4169566[3] -
PIN;SPRING .
43.2020862[1] -
SHAFT;PROP. .
45.2022683[1] -
COVER
46.A590912[12] -
WASHER;SPRING .
47.M221228[12] -
BOLT .
48.94-2013[2] -
PLUG
50.4174183[1] -
O-RING .
51.J931685[2] -
BOLT .
60.J932080[28] -
BOLT .
61.A590920[28] -
WASHER;SPRING

  • Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

  • Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
