VOE14566410 VOE14566411 Excavator Final Drive Planetary Carrier No.3 Used For Vo-lvo EC290B EC360B
VOE14566410 VOE14566411 Excavator Final Drive Planetary Carrier No.3 Used For Vo-lvo EC290B EC360B
Specifications
Brand Name :
OEM
Model Number :
EC290b EC60B
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
1-3 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Supply Ability :
100-2000
Category :
Excavator travel gearbox spare parts
Excavator type :
Crawler Hydraulic excavator
Model :
EC290B C
Parts name :
travel gear planetary NO.3
Packing :
Wood box, standard carton, pallet
Item condition :
New 100%, AFTERMARKET
Description

  • VOE14566410 VOE14566411 Excavator Final Drive Planetary Carrier No.3 Used For Vo-lvo EC290B EC360B

  • Spec Sheet

Excavator spare parts name EC290B EC290C EC360B EC360C travel carrier no.3
Equipment Model EC290B
Parts Category Excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days


  • Application

Excavator EC240C . EC290B . EC290C . EC300D . EC300E . EC330B . EC330C . EC340D . EC350D . EC350E . EC360B . EC360C . EC360CHR . EC380D . EC380DHR . EC380E . EC380EHR . ECR305C . FC2924C . FC3329C . PL3005D . Vo-lvo pro

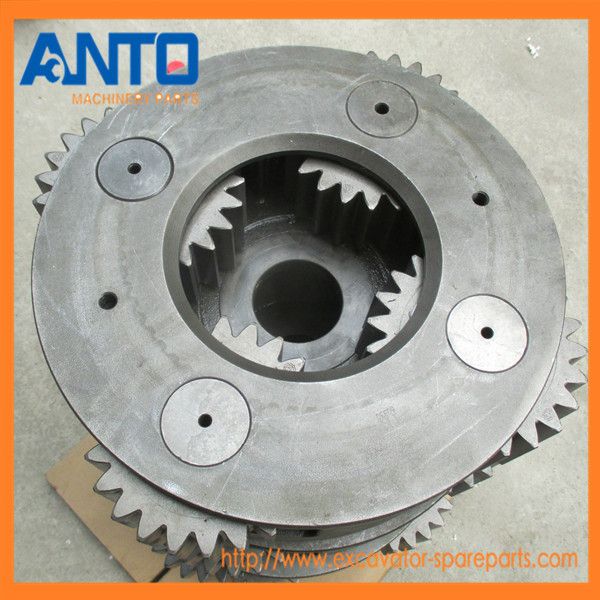

  • Product Photos

VOE14566410 VOE14566411 Excavator Final Drive Planetary Carrier No.3 Used For Vo-lvo EC290B EC360B

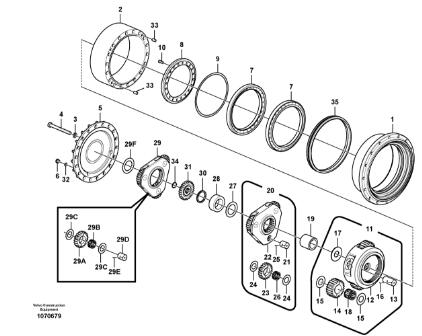

  • Parts Diagram

VOE14566410 VOE14566411 Excavator Final Drive Planetary Carrier No.3 Used For Vo-lvo EC290B EC360B

VOE14569763[1]-

Gearbox .

1.VOE14570930[1]-

Housing .

2.VOE14566409[1]-

Gear .

3.SA9213-20000[18]-

Spring washer .

4.VOE992961[19]-

Hexagon screw .

5.VOE14566432[1]-

Cover .

6.SA9415-11042[2]-

Plug .

7.SA7117-38230[2]-

Bearing .

8.VOE14566403[1]-

Retainer .

9.VOE14566404[REQ]-

Shim THICK = 0,1 mm .

10.VOE984088[20]-

Hex. socket screw .

11.VOE14566410[1]-

Planet carrier .

12.VOE14566411[1]-

Planet carrier .

13.VOE14566415[5]-

Pin .

14.VOE14566413[4]-

Planetary gear .

15.VOE14566414[8]-

Washer .

16.SA9325-06012[4]-

Spring pin .

17.SA8230-21020[1]-

Thrust ring .

18.VOE14566412[4]-

Needle bearing .

19.VOE14566416[1]-

Gear .

20.VOE14566418[1]-

Planet carrier .

21.VOE14566423[3]-

Pin .

22.VOE14566419[1]-

Planet carrier .

23.VOE14566421[3]-

Planetary gear .

24.VOE14566422[6]-

Washer .

25.SA9325-06012[3]-

Spring pin .

26.VOE14566420[3]-

Needle bearing .

27.VOE14566433[1]-

Thrust washer .

28.VOE14566424[1]-

Gear .

29.VOE14570931[1]-

Planet carrier .

29.VOE14570933[3]-

Gear .

29.VOE14566427[3]-

Needle bearing .

29.VOE14566429[6]-

Washer .

29.VOE14566430[3]-

Pin .

29.SA9325-06012[3]-

Spring pin .

29.VOE14569232[1]-

Ring .

30.VOE14566417[1]-

Ring .

31.VOE14570934[1]-

Gear .

32.VOE990557[2]-

O-ring .

33.VOE950677[2]-

Pin .

34.VOE914467[1]-

Retaining ring .

35.VOE14667679[1]-

Seal

  • Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

  • Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
