175-15-42721 1751542721 175-15-12715 1751512715 Friction Disc Plate
175-15-42721 1751542721 175-15-12715 1751512715 Friction Disc Plate
175-15-42721 1751542721 175-15-12715 1751512715 Friction Disc Plate
175-15-42721 1751542721 175-15-12715 1751512715 Friction Disc Plate
Specifications
Brand Name :
OEM
Model Number :
175-15-42721 175-15-42750
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Model number :
D135 D155 D355
Transportation :
By sea/air By express
Product name :
friction disc & plate
Part number :
175-15-42721 175-15-12715
Packing :
Standard Export Carton
Warranty :
6/12 Months
Description

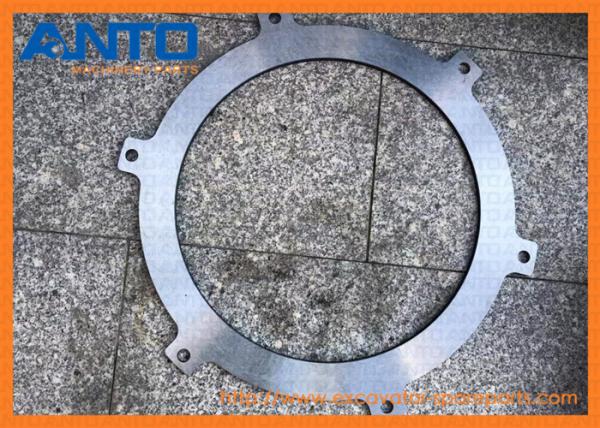

  • 175-15-42721 1751542721 175-15-12715 1751512715 Friction Disc & Plate

  • Specification

Application

Bulldozer transimission
Name friction disc and plate
Parts No 175-15-42721 175-15-12715
Model

D150 D155 D355
Delivery time 2-7 DAYS
Quality OEM quality
Brand SHANTUI
MOQ 1 PCS
Design made in china
Means of transport By sea/air, DHL
Packing As request or standard packing

  • Applicable models

BULLDOZERS D155A D155W
DUMP TRUCKS HD680 HD780 HD785
PIPELAYERS D155C D355C Komatsu

  • More disc for Komatsu machine
195-22-11211 DISC 568-33-11334 DISC 561-15-42721 DISC
D355A, D355C HD460, HD680, HD780, HD785 330M, HD465, HD605, HD785
176-76-64150 DISC 566-92-11190 DISC (KIT) 568-33-11332 DISC
D155C, D355C HD320, HD325, HD680, HD780, HD785 HD680
568-33-11333 DISC 195-15-32710 Disc 154-22-11230 DISC
HD680 558, D155A, D155AX, D275A, D375A, D475A, D475ASD, GD755, HD325, HD405, HD465, HD605, HD785, HM350, HM400, HYDRAULIC, WA500, WA600, WD600 D135A, D150A, D155A, D155C, D155S, D155W, D455A, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S
175-10-31111 DISC 19M-15-12721 DISC 154-22-11230 DISC
D150A, D80A, D80E, D80P D135A, D155A, D155C, D155W, D355C, D575A, D85A, D85E, D85P, HD785 D135A, D150A, D155A, D155C, D155S, D155W, D455A, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S
154-43-14710 DISC 20G-32-21911 DISC 20G-60-K5930 DISC
D135A, D155A, D80A, D80E, D80P, D85A, D85E, D85P, D95S PW200, PW210 PW170ES
582-15-12811 DISC 424-15-12711 DISC 17A-15-12710 DISC
D155AX, D275A, D275AX, D65EX, D65PX, D65WX, HD205, HD255, HM250, HM300, HM300TN, KOMTRAX, WA700 AIR, D155AX, D275A, D275AX, D375A, D85EX, D85MS, D85PX, DRAWBAR,, FRONT, GD555, GD655, GD675, HYDRAULIC, WA380, WA430, WA470, WA480, WA500 D155AX
175-65-33141 DISC 154-15-12715 DISC 175-15-12713 DISC
D155A, D85A, D85E, D85P D155A, D155C, D155W, D355C, D65A, D65E, D65S, D75S, D85A, D85E, D85P, D95S, HD200, HD320, HD325, HD460, HD465, HD680, HD780, HD785, WF22A, WF22T, WS23S D155A, D85A, D85E, D85P, D95S, WF22A, WF22T

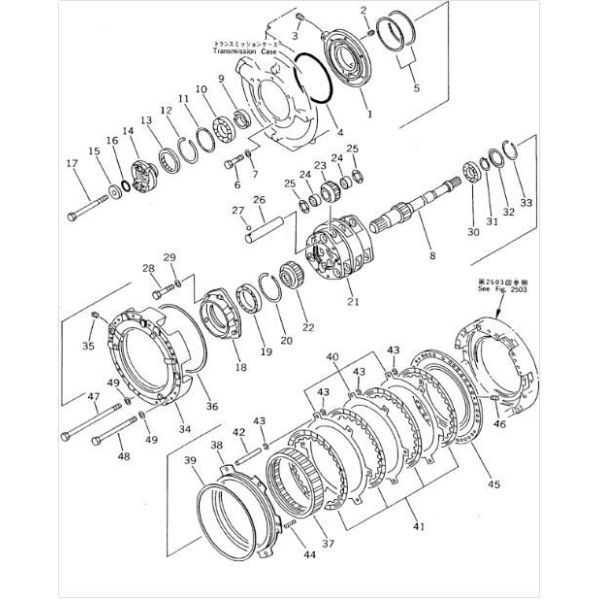

  • Catalog DRAWING

175-15-42721 1751542721 175-15-12715 1751512715 Friction Disc Plate

Pos. Part No Qty Parts name Comments
15A-15-00010 [1] TRANSMISSION ASS'Y,TORQFLOWKomatsu China
["SN: 10001-UP"] ancatalogs:["15A1500011"] |$0.
15A-15-00190 [1] CAGE ASS'Y Komatsu China
["SN: 10001-UP"] |$1.
2 195-15-11230 [1] PLUG Komatsu 0.047 kg.
["SN: 10001-UP"]
3 07042-70211 [1] PLUG Komatsu 0.017 kg.
["SN: 10001-UP"] ancatalogs:["0704200211"]
4. 07000-05290 [1] O-RING (K2) Komatsu OEM 0.032 kg.
["SN: 10001-UP"] ancatalogs:["0700015290"]
5. 07018-12005 [2] RING,SEAL Komatsu China 0.113 kg.
["SN: 10001-UP"]
6. 01010-51235 [6] BOLT Komatsu 0.048 kg.
["SN: 10001-UP"] ancatalogs:["0101081235", "01010E1235", "801015136"]
7. 01643-51232 [6] WASHER Komatsu 0.024 kg.
["SN: 10001-UP"]
8. 15A-15-12110 [1] SHAFT Komatsu China
["SN: 10001-UP"]
9. 15A-15-12140 [1] SPACER Komatsu 0.84 kg.
["SN: 10001-UP"]
10. 06000-06216 [1] BEARING,BALL Komatsu China 1.441 kg.
["SN: 10001-UP"]
11. 15A-15-11240 [1] SPACER Komatsu 0.08 kg.
["SN: 10001-UP"]
12. 04071-00140 [1] RING,SNAP Komatsu 0.13 kg.
["SN: 10001-UP"]
13. 07012-10110 [1] SEAL,OIL (K2) Komatsu China 0.12 kg.
["SN: 10001-UP"] ancatalogs:["1951211230"]
14. 15A-15-12150 [1] COUPLING Komatsu 5.8 kg.
["SN: 10001-UP"]
15. 154-15-42180 [1] HOLDER Komatsu 0.5 kg.
["SN: 10001-UP"]
16. 07000-05055 [1] O-RING (K2) Komatsu China 0.03 kg.
["SN: 10001-UP"] ancatalogs:["0700015055"]
17. 01051-51800 [1] BOLT Komatsu 0.247 kg.
["SN: 10001-UP"] ancatalogs:["0105161800"]
18. 15A-15-12310 [1] CAGE Komatsu China
["SN: 10001-UP"]
19. 06000-06924 [1] BEARING,BALL Komatsu China 1.21 kg.
["SN: 10001-UP"]
20. 130-09-16780 [1] RING Komatsu China 0.1 kg.
["SN: 10001-UP"]
21. 175-15-42322 [1] CARRIER Komatsu 26.8 kg.
["SN: 10001-UP"]
22. 175-15-42122 [1] GEAR Komatsu 4.4 kg.
["SN: 10001-UP"]
23. 175-15-42451 [3] GEAR Komatsu China 1.63 kg.
["SN: 10001-UP"] ancatalogs:["1751542452", "1751542453"]
24. 09232-05125 [6] BEARING,NEEDLE Komatsu China 0.18 kg.
["SN: 10001-UP"] ancatalogs:["1300941140"]
25. 09233-05125 [6] WASHER Komatsu China 0.04 kg.
["SN: 10001-UP"] ancatalogs:["0923315125", "1951512552", "1951512550"]
26. 175-15-42512 [3] SHAFT Komatsu China 3.67 kg.
["SN: 10001-UP"]
27. 04260-00635 [3] BALL Komatsu 0.012 kg.
["SN: 10001-UP"] ancatalogs:["805750022", "YM24190080001", "21D0986810"]
28. 01010-31230 [6] BOLT Komatsu 0.043 kg.
["SN: 10001-UP"] ancatalogs:["01010E1230", "0101061230"]
30. 06042-00212 [1] BEARING,ROLLER Komatsu China 0.853 kg.
["SN: 10001-UP"]
31. 04064-06020 [1] RING,SNAP Komatsu China 0.01 kg.
["SN: 10001-UP"] ancatalogs:["0406406020E", "YM22242000600", "R0406406020"]
32. 175-15-42340 [1] PLATE Komatsu 0.04 kg.
["SN: 10001-UP"]
33. 130-09-15740 [1] RING,SNAP Komatsu China 0.03 kg.
["SN: 10001-UP"]
175-15-00281 [1] HOUSING ASS'Y Komatsu 50 kg.
["SN: 10001-UP"] |$35.
35 145-14-11320 [2] PLUG Komatsu 0.003 kg.
["SN: 10001-UP"]
36. 175-15-12750 [1] RING,SEAL Komatsu China 0.388 kg.
["SN: 10001-UP"]
37. 175-15-42620 [1] GEAR,RING Komatsu China 12.8 kg.
["SN: 10001-UP"]
38. 175-15-42830 [1] PISTON Komatsu 13.6 kg.
["SN: 10001-UP"]
39. 195-15-12820 [1] RING,SEAL Komatsu China 0.85 kg.
["SN: 10001-UP"] ancatalogs:["1751512820"]
40. 175-15-42721 [3] PLATE Komatsu China 4 kg.
["SN: 10001-UP"] ancatalogs:["1751542720"]
41. 175-15-12716 [4] DISC Komatsu China 2.513 kg.
["SN: 10001-UP"] ancatalogs:["1751512713", "1751512715", "1751512714", "19M1512721"]
42. 145-14-12760 [6] PIN Komatsu 0.26 kg.
["SN: 10001-UP"]
43. 175-15-42880 [24] SPRING Komatsu China 0.01 kg.
["SN: 10001-UP"]
44. 175-15-42781 [12] SPRING Komatsu China 0.02 kg.
["SN: 10001-UP"] ancatalogs:["1751542780"]
175-15-00271 [1] PLATE ASS'Y Komatsu China 16.9 kg.
["SN: 10001-UP"] ancatalogs:["1751500270", "1751541172"] |$47.
47. 175-15-41192 [13] BOLT Komatsu 0.6 kg.
["SN: 10001-UP"]
48. 175-15-41292 [1] BOLT Komatsu 0.44 kg.
["SN: 10001-UP"]
49. 145-14-11570 [14] WASHER Komatsu 0.01 kg.
["SN: 10001-UP"]
["SN: 50001-(26588)"] ancatalogs:["01010E1230", "0101061230"]

  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Advantage

1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service

  • Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden case

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

  • Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

  • Our service

1. Packaging is neutral packing or customized packing

2. We will reply you within 24 hours.

3. We will also provide you with good after-sales service.

4. OEM or ODM orders are welcomed.

5. Trial orders are acceptable

6. High quality and factory price.

7. 100% ensured the quality

  • FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T, Western Union

Q3. What is your terms of delivery?

A:Sea ,Air ,Express

Q4. How about your delivery time?

A: Generally, it will take within 25 hours after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6: How do you make our business long-term and good relationship?

A: We keep good quality and competitive price to ensure our customers benefit; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
