208-06-71113 PC400-7 PC450-7 Cab External Wiring Harness For Komatsu Excavator Parts
208-06-71113 PC400-7 PC450-7 Cab External Wiring Harness For Komatsu Excavator Parts
Specifications
Brand Name :
OEM
Model Number :
208-06-71113
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Komatsu electrical spare parts
Model :
PC400-7 PC450-7
Parts no. :
208-06-71113
Parts name222-5917 :
excavator cab external wire harness
Warranty :
3/6/12 months
Package :
Standard Box package
Description

  • 208-06-71113 PC400-7 PC450-7 Cab External Wiring Harness Used For Komatsu Excavator Parts


  • Specification

Excavator spare parts name Komatsu cab external wiring harness
Equipment Model PC400-7 PC450-7
Parts Category Komatsu excavator electrical spare parts
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days



  • Application


PC400-7 S/N 50001-UP (Overseas Version) EXCAVATORS
WIRING (MAIN HARNESS) (HARNESS AND CLIP) » 208-06-71113
PC400LC-7 S/N 50001-UP (Overseas Version) EXCAVATORS
WIRING (MAIN HARNESS) (HARNESS AND CLIP) » 208-06-71113
PC450-7 S/N 20001-UP (Overseas Version) EXCAVATORS
WIRING (MAIN HARNESS) (HARNESS AND CLIP) » 208-06-71113
PC450LC-7 S/N 20001-UP (Overseas Version) EXCAVATORS
WIRING (MAIN HARNESS) (HARNESS AND CLIP) » 208-06-71113

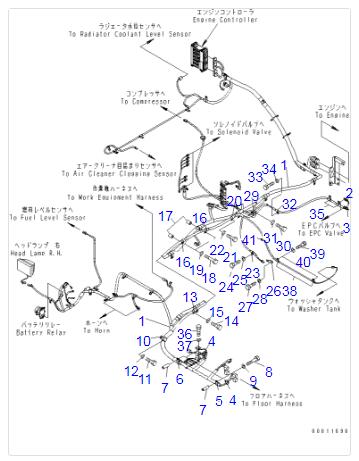

  • parts diagram

208-06-71113 PC400-7 PC450-7 Cab External Wiring Harness For Komatsu Excavator Parts

Pos. Part No Qty Parts name Comments
1 208-06-71113 [1] WIRING HARNESS Komatsu 7 kg.
["SN: 50372-UP"]
1 208-06-71112 [1] WIRING HARNESS Komatsu China
["SN: 50001-50371"]
1. 20Y-06-31660 [1] FUSIBLE LINK, 30A Komatsu 0.2 kg.
["SN: 50001-UP"]
1. 22U-06-11270 [1] FUSIBLE LINK, 65A Komatsu 0.01 kg.
["SN: 50001-UP"]
2. 20Y-62-22790 [1] BAND, RED Komatsu 0.001 kg.
["SN: 50001-UP"]
3. 20Y-62-22830 [1] BAND, WHITE Komatsu 0.001 kg.
["SN: 50001-UP"]
4 08034-20519 [2] BAND Komatsu 0.001 kg.
["SN: 50001-UP"] ancatalogs:["2260611130", "885180010"]
5 04434-52312 [1] CLIP Komatsu 0.021 kg.
["SN: 50001-UP"]
6 04434-53412 [1] CLIP Komatsu 0.044 kg.
["SN: 50001-UP"]
7 195-979-3570 [2] COLLAR Komatsu China
["SN: 50001-UP"]
8 01010-81290 [2] BOLT Komatsu 0.095 kg.
["SN: 50001-UP"] ancatalogs:["0101051290"]
9 01643-31232 [2] WASHER Komatsu 0.027 kg.
["SN: 50001-UP"] ancatalogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
11 01010-81225 [1] BOLT Komatsu 0.074 kg.
["SN: 50001-UP"] ancatalogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
13 04434-51912 [1] CLIP Komatsu 0.02 kg.
["SN: 50001-UP"]
17 142-03-11160 [2] SPACER Komatsu 0.13 kg.
["SN: 50001-UP"]
18 01010-81260 [2] BOLT Komatsu China 0.069 kg.
["SN: 50001-UP"] ancatalogs:["0101051260"]
23 04434-51012 [1] CLIP Komatsu 0.014 kg.
["SN: 50001-UP"]
24 01010-81220 [1] BOLT Komatsu 0.032 kg.
["SN: 50001-UP"] ancatalogs:["0101051220"]
26 08193-21012 [1] CLIP Komatsu 0.011 kg.
["SN: 50001-UP"]
29 04434-51412 [1] CLIP Komatsu 0.02 kg.
["SN: 50001-UP"]
32 04434-51410 [1] CLIP Komatsu 0.018 kg.
["SN: 50001-UP"]
33 01010-81025 [1] BOLT Komatsu 0.36 kg.
["SN: 50001-UP"] ancatalogs:["0101051025", "0101651025", "801015109"]
34 01643-31032 [1] WASHER Komatsu 0.054 kg.
["SN: 50001-UP"] ancatalogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
36 01010-81020 [6] BOLT Komatsu 0.161 kg.
["SN: 50001-UP"] ancatalogs:["801014093", "0101051020", "801015108"]

  • Description

Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.

  • Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
