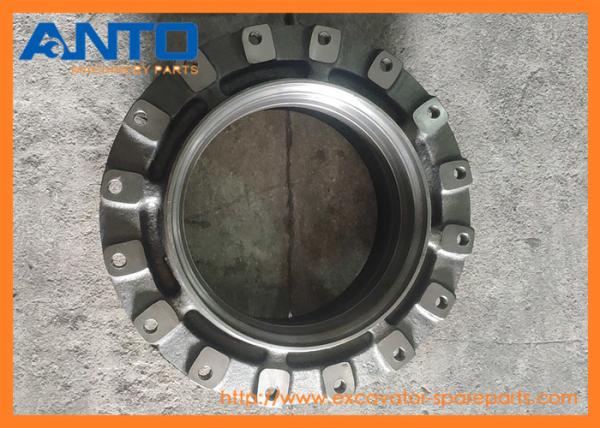

169-5608 322C 324D Housing Hub For Excavator Final Drive Parts
169-5608 322C 324D Housing Hub For Excavator Final Drive Parts
Specifications
Brand Name :
OEM
Model Number :
322C 324D
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Product name :
Gearbox Housing
Excavator model :
322C 324D
parts number :
169-5608
Warranty :
6 months
Category :
Excavator Final Drive
Packing :
Standard Wooden box
Description

​

  • 169-5608 322C 324D Housing Hub Used For Excavator Final Drive Parts


  • Spec Sheet

Excavator spare parts nameGearbox housing
Equipment Model 322C 324D
Parts Categoryexcavator final drive
Spare parts ConditionBrand new
MOQ of order(PCS, SET)1
Parts AvailabilityIn stock
Delivery Lead time1-3 days


  • Application

EXCAVATOR 322C 322C FM 324D 324D L 324D LN

  • Parts Diagram

169-5608 322C 324D Housing Hub For Excavator Final Drive Parts

Pos.Part NoQtyParts nameComments
13E-2338[2]PLUG-PIPE
2094-0578[1]PLATE (8-MM THK)
3094-0579[1]PLATE (9-MM THK)
4094-0580[1]PLATE (10-MM THK)
5094-1528[12]WASHER (53X84X1-MM THK)
6168-8452 J[2]BALL BEARING
7169-5589[1]GEAR-SUN (24-TEETH)
8169-5590[1]GEAR-SUN (24-TEETH)
9169-5592[3]GEAR-PLANETARY (23-TEETH)
10169-5593[3]GEAR-PLANETARY (23-TEETH)
11169-5594[1]GEAR-RING (65-TEETH)
12169-5601[3]SHAFT-PLANETARY
13169-5602[3]SHAFT-PLANETARY
14169-5608 J[1]HOUSING
15171-9297[6]WASHER (34.3X62X1-MM THK)
16191-2569[3]BEARING AS (CAGED ROLLER)
17191-2570[6]BEARING AS (CAGED ROLLER)
18191-2571[1]CARRIER-PLANETARY
19191-2674[1]GEAR-SUN (25-TEETH)
20191-2675[3]GEAR-PLANETARY (20-TEETH)
21191-2676[1]GEAR-RING (72-TEETH)
22191-2677[3]BEARING AS (CAGED ROLLER)
23191-2678[1]CARRIER AS
24199-4503[1]COVER
25207-1571 J[1]SEAL GP-DUO-CONE
214-3570[2]RING-TORIC
26227-6117 J[1]HOUSING-MOTOR
27227-6118 J[1]RETAINER
28227-6119[1]CARRIER-PLANETARY
29227-6123 J[2]DOWEL
30227-6124 J[2]PLATE-WASHER
31093-1731[2]RING-RETAINING
32095-0891[6]PIN-SPRING
33096-0433[3]RING-RETAINING
34096-3216 M[2]SETSCREW-SOCKET (M12X1.75X12-MM)
35171-9298[1]SEAL-O-RING
36179-8733 M[16]BOLT (M20X2.5X170-MM)
377M-8485[2]SEAL-O-RING
387Y-0595[3]SPACER (58X79.6X6-MM THK)
398T-0293 JM[4]BOLT (M12X1.75X20-MM)
408T-4123[16]WASHER (3.62X5.75X0.375-MM THK)
419X-6032 M[12]BOLT-SOCKET HEAD (M10X1.5X30-MM)
AVAILABLE REPAIR KIT(S):
227-6134 J[1]KIT-HOUSING (FINAL DRIVE)
J KIT MARKED J SERVICES PART(S) MARKED J
M METRIC PART

  • Description


The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
