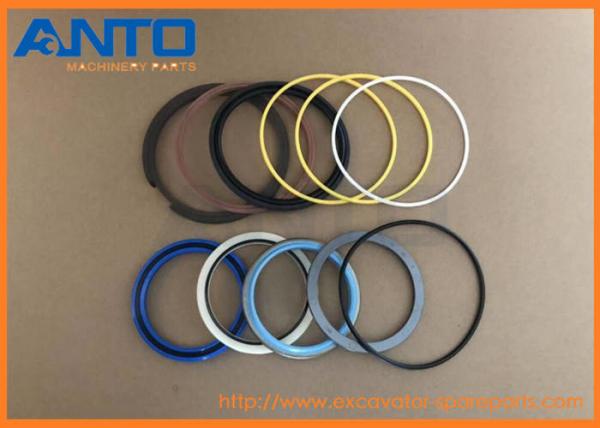

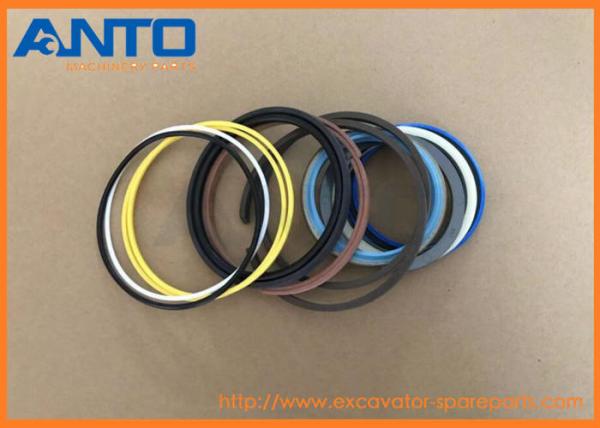

LZ009310 CX130B Boom Cylinder Seal Kit For CASE Excavator Hydraulic Cylinder
LZ009310 CX130B Boom Cylinder Seal Kit For CASE Excavator Hydraulic Cylinder
LZ009310 CX130B Boom Cylinder Seal Kit For CASE Excavator Hydraulic Cylinder
LZ009310 CX130B Boom Cylinder Seal Kit For CASE Excavator Hydraulic Cylinder
LZ009310 CX130B Boom Cylinder Seal Kit For CASE Excavator Hydraulic Cylinder
LZ009310 CX130B Boom Cylinder Seal Kit For CASE Excavator Hydraulic Cylinder
Specifications
Brand Name :
OEM
Model Number :
LZ009310
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Part name :
Boom cyl seal kit
Part number :
LZ009310
Model number :
CX130C CX130D CX130B
Warranty :
6/12 Months
Condition :
Brand new, OEM quality
Packing :
Wooden box for heavy parts, paper carton for light parts
Description
  • LZ009310 CX130B Boom Cylinder Seal Kit For CASE Excavator Hydraulic Cylinder

  • Specification
Product name boom cyl seal kit
Part number LZ009310
Model CX130B CX130C CX130D CX130D LC Case
Category Excavator Hydraulic cylinder seal kit
Quality Brand new, OEM quality
MOQ 1 PCS
Warranty 6 months
Payment term T/T, D/P, D/A, Western Union, MoneyGram
Delivery time 1-3 days after receiving the payment
Packing Standard exporting packing or as required
Means of transport

By sea/air, DHL UPS FEDEX TNT EMS

  • Application

HEAVY EQUIPMENT CX130B CX130C CX130D CX130D LC Case

  • More seal parts for CASE equipment
72109532 SEAL
CX250C, CX145C SR, AQ-6UZ1XASS01, CX300C, CX160C, AR-4JJ1XASS01-02, CX350C, CX210C LC, CX470C, CX210C LR, CX210C NLC, AQ-4HK1XASS01, CX235C SR, CX130C, AQ-6HK1XASS01-02
151814A1 SEAL,72mm ID x 84mm OD x 11mm Thk
CX250C, CX130B, CX130D LC, CX160B, CX160D LC, CX130, CX210B, CX210D LC, CX135SR, 9007B, CX210BLR, CX210D LC LR, 9010, CX210BNLC, CX210D NLC, CX160, CX240B, CX250D LC, CX210, 9020, CX240BLR, CX250D LC ...
160674A1 SEAL,65mm ID x 80mm OD x 5mm Thk
CX250C, CX130D, CX130B, CX130D LC, CX160B, CX160D LC, CX130, CX135SR, 9007B, CX210BLR, CX210D LC LR, CX160, 9010B, CX210, CX240BLR, CX250D LC LR, CX210LR, 9020B, 9030B, CX240, 9040B, CX240LR, CX130C, ...
160400A1 SEAL,75mm ID x 90mm OD x 5mm Thk
CX130D, CX130B, CX130D LC, CX160B, CX160D LC, CX130, CX210B, CX210D LC, CX135SR, CX210BNLC, CX210D NLC, CX160, 9010B, CX210, CX210N, CX225SR, 9030B, CX130C, CX145C SR, CX160C, CX210C LC, CX210C NLC, C...
161295A1 SEAL,70mm ID x 85mm OD x 5mm Thk
CX240BLR, CX250C, CX130B, CX145C SR, CX130D LC, 9020B, CX130, CX250D LC LR, CX135SR, CX210BLR, CX210C LR, CX210D LC LR, CX130C, CX240, CX210LR, CX240LR, CX210, CX130D
159399A1 SEAL,56mm ID x 76mm OD x 25mm Thk
CX250C, CX160B, CX160D LC, CX210B, CX210D LC, CX210BLR, CX210D LC LR, CX210BNLC, CX210D NLC, CX160, CX240B, CX250D LC, CX210, CX240BLR, CX250D LC LR, CX210LR, 9020B, CX210N, CX225SR, 9030B, CX240, 904...
LQU0245 SEAL KIT
CX130, CX130B
KHA0041 SEAL
CX130B, CX145C SR, CX130D LC, CX130, CX135SR, CX130C, CX130D
LE016880 SEAL
CX130B, CX145C SR, CX130D LC, CX135SR, CX130C, CX130D
KNA10710 SEAL
CX130B, CX145C SR, CX130D LC, CX135SR, CX130C, CX130D
KHJ13590 SEAL
CX250C, CX300C, CX350C, CX75C SR, CX80C, CX130D, CX130B, CX130D LC, CX160B, CX160D LC, CX210B, CX210D LC, CX210BLR, CX210D LC LR, CX210BNLC, CX210D NLC, CX240B, CX250D LC, CX240BLR, CX250D LC LR, CX29...
KNA14290 SEAL
CX130D LC, CX130D
KNJ12480 SEAL
CX130B
KHJ14620 SEAL
CX240BLR, CX130B, CX290B, CX160B, CX210B, CX210BLR, CX210BNLC, CX240B
KHR14230 SEAL
CX240BLR, CX130B, CX290B, CX160B, CX350B, CX210B, CX470B, CX210BLR, CX700B, CX210BNLC, CX800B, CX240B
KHR14920 SEAL PROTECTION
CX240BLR, CX130B, CX290B, CX160B, CX160C, CX350B, CX210B, CX470B, CX210BLR, CX210BNLC, CX240B, CX130C
LE015360 SEAL PROTECTION
CX130B, CX160B
LE015350 SEAL PROTECTION
CX130B, CX130D LC, CX160B, CX160C, CX160D LC, CX130C, CX130D
KHJ13580 SEAL
CX250C, CX300C, CX350C, CX470C, CX75C SR, CX80C, CX130D, CX130B, CX130D LC, CX160B, CX160D LC, CX210B, CX210D LC, CX210BLR, CX210D LC LR, CX210BNLC, CX210D NLC, CX240B, CX250D LC, CX240BLR, CX250D LC ...
KHJ12660 SEAL
CX240BLR, CX130B, CX290B, CX160B, CX350B, CX210B, CX470B, CX210BLR, CX700B, CX210BNLC, CX800B, CX240B
KHJ10640 SEAL
CX240BLR, CX250C, CX130B, CX290B, CX300C, CX160B, CX350B, CX350C, CX210B, CX210C LC, CX470B, CX470C, CX210BLR, CX210C LR, CX700B, CX210BNLC, CX210C NLC, CX800B, CX240B
LAP0032 SEAL
CX300C, CX350C, CX130D, CX130B, CX130D LC, CX160B, CX160D LC, CX210B, CX210D LC, CX210D LC LR, CX210BNLC, CX210D NLC, CX240B, CX250D LC, CX250D LC LR, CX290B, CX300D LC, CX350D LC, CX490D LC, CX490D R...
LZ008750 SEAL KIT
CX240BLR, CX210BLR, CX130B, CX210C LR, CX250C
LZ009350 SEAL KIT
CX130B, CX145C SR

  • Parts list diagram
Pos. Part No Qty Parts name Comments
. . KNV14330 [1] HYDRAULIC CYLINDER SUM Boom, Incl. 3 - 43
. . KNV14330R [1] REMAN-HYD CYLINDER RAC CX130B CRAWLER EXCAVATOR TIER 3, RH, Boom (3/08-)
. . KNV14330C [1] CORE-HYD CYLINDER RAC Return Number
3 LU00100 [1] CYLINDER END CAP SUM , Serial Range: - 1 KNV14330 HYDRAUL
4 155433A1 [1] BUSHING SUM
5 155699A1 [1] RING, SNAP SUM RING SNAP
6 LE016510 [1] RING SUM RING
7 LE016520 [1] O-RING SUM U-RING
8 155231A1 [1] BACK-UP RING SUM
9 LE00420 [1] SEAL SUM Superseded by part number: LE019410
10 154721A1 [1] O-RING,99.4mm ID x 3.1mm Width SUM
11 161880A1 [1] BACK-UP RING SUM
12 108R014Z065N [12] BOLT SUM
13 LE016530 [1] SEALING RING SUM SEALRING RING, COUSHION
14 LE00724 [1] SEAL SUM
15 LJ015730 [1] PISTON SUM PISTON
16 155330A1 [1] SEALING RING SUM
17 161881A1 [2] BACK-UP RING SUM
18 LE015080 [2] SCRAPER RING SUM
19 161883A1 [2] BACK-UP RING SUM
20 156222A1 [1] SCREW SUM
21 155976A1 [1] BALL SUM
22 164446A1 [4] WIPER SEAL SUM
23 LR016520 [1] HYD TUBE SUM PIPE
24 LR016530 [1] HYD TUBE SUM PIPE
25 154528A1 [1] O-RING SUM
26 87016471 [4] HEX SOC SCREW,M10 x 30mm, Cl 12.9 RAC
27 154499A1 [1] O-RING SUM
28 861-8025 [1] HEX SOC SCREW,M8 x 25mm, Cl 12.9 CAS Superseded by part number: 9706749
29 LD001660 [1] CLAMP BRACKET SUM BAND
30 LZU0095 [1] CLAMP BRACKET SUM
31 158131A1 [2] BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9 SUM
32 156227A1 [2] WASHER SUM
33 160871A1 [2] HALF-FLANGE SUM
34 LA00683 [1] BOLT,Hex SUM
35 892-10012 [1] LOCK WASHER,M12 CAS
36 153630A1 [1] LUBE NIPPLE SUM
37 LZ009310 [1] SEAL KIT SUM KIT, GASKET Incl. Ref 6 - 11, 14, 16 - 19 Superseded by part number: LZ010750
39 NSS [1] NOT SOLD SEPARAT CON TUBE, CYL
40 KNV1143 [1] SELF LUB RING SUM
42 NSS [1] NOT SOLD SEPARAT CON ROD, PISTON
43 KNV1139 [1] SELF LUB RING SUM

LZ009310 CX130B Boom Cylinder Seal Kit For CASE Excavator Hydraulic Cylinder

  • We could supply the following spare parts.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Advantage

1. Strong part number database.

If you can provide the right model and part number, we can supply the right product.

2.Professional and experienced salesperson.

Our founder has been into this field for more than 6 years, with rich experiences.

3.Strict and complete company rules.

We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.

4.Good management system.

No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.

5.Good service attitude.

As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.

  • Packing and Delivery

Packaging Details

Plastic Bag & Plastic Box , Customize , Or customer's Brand

Delivery Time

5-7 day after received the payment

Type of Shipping :

EMS , DHL , TNT , UPS , FeDex , By air & By sea .

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
