• 207-6231 2076231 Excavator Hydraulic Piping Hose

• Specification

• Applicable models

EXCAVATOR 315C 315D L 319D 319D L 319D LN 325C 325D FM 325D FM LL 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2
MOBILE HYD POWER UNIT 330D 336D L

• More hoses for machine

1960838 HOSE AS
315C

1960834 HOSE AS
315C

1849477 HOSE AS
315C, 320C

1849508 HOSE AS
315C, 315D L, 330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L
1849469 HOSE AS
315C, 316E L, 318E L, 320D, 320D L, 323D L, 323D LN, 323D SA

1849543 HOSE AS
315C, 315D L, 316E L, 318D L, 318D2 L, 318E L

1980731 HOSE AS
315C

1980728 HOSE AS
315C
1980725 HOSE AS
315C

1980722 HOSE AS
315C, 318C

1991676 HOSE AS
311D LRR, 315C, 315D L, 319D, 319D LN

1653219 HOSE AS
315C, 320C, 320C FM, 322C

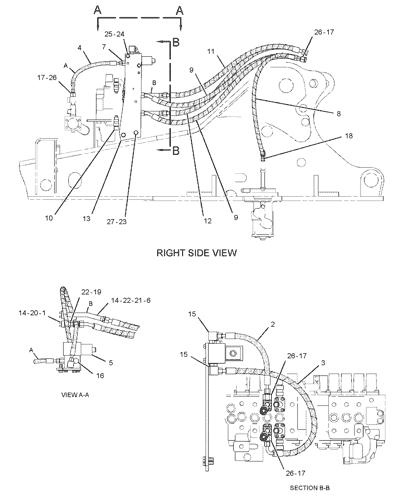

• catalog parts list diagram

Pos.Part NoQtyParts nameComments
1. 7Y-3729 [2] FLANGE-SPECIAL
2. 118-9039 I [1] HOSE AS
3. 126-9646 I [1] HOSE AS
4. 134-2883 I [1] HOSE AS
5. 162-7746 Y [1] VALVE GP-SOLENOID (GRAPPLE LEVELER FLOAT)
6. 196-0638 [2] TUBE AS
7. 205-2357 [1] CONNECTOR AS
3D-2824 [1] SEAL-O-RING
6V-8398 [1] SEAL-O-RING
8T-7968 [1] CONNECTOR
8. 207-6231 I [1] HOSE AS
9. 215-3183 I [2] HOSE AS
10. 220-3828 Y [2] VALVE GP-RELIEF (LINE)
11. 267-6538 I [1] HOSE AS
12. 267-6539 I [1] HOSE AS
13. 267-6547 [1] PLATE
14. 101-7404 M [16] BOLT-SOCKET HEAD (M10X1.5X30-MM)
15. 148-8381 [2] ELBOW AS
(EACH INCLUDES)
3D-2824 [1] SEAL-O-RING
6V-8398 [1] SEAL-O-RING
8T-5429 [1] ELBOW
16. [1] PLUG AS
3D-2824 [1] SEAL-O-RING
9S-4183 [1] PLUG (1-1/16-12-THD)
17. 148-8418 [4] REDUCER AS
(EACH INCLUDES)
6V-8398 [1] SEAL-O-RING
6V-8942 [1] REDUCER-O-RING
18. 148-8444 [1] TEE AS-SWIVEL
6V-8398 [2] SEAL-O-RING
6V-9837 [1] TEE-SWIVEL
19. 148-8449 [2] TEE AS-SWIVEL
(EACH INCLUDES)
6V-9746 [2] SEAL-O-RING
6V-9839 [1] TEE-SWIVEL
20. 1P-3702 [2] SEAL-RECTANGULAR
21. 1P-3703 [2] SEAL-RECTANGULAR
22. 6V-9746 [4] SEAL-O-RING
23. 7X-2553 M [2] BOLT (M16X2X40-MM)
24. 8T-4184 M [2] BOLT (M12X1.75X45-MM)
25. 8T-4223 [2] WASHER-HARD (13.5X25.5X3-MM THK)
26. 9X-6580 [4] NUT (1-3/16-12-THD)
27. 9X-8257 [2] WASHER (17.5X30X3.5-MM THK)
I REFER TO HYDRAULIC INFORMATION SYSTEM
M METRIC PART
Y SEPARATE ILLUSTRATION
