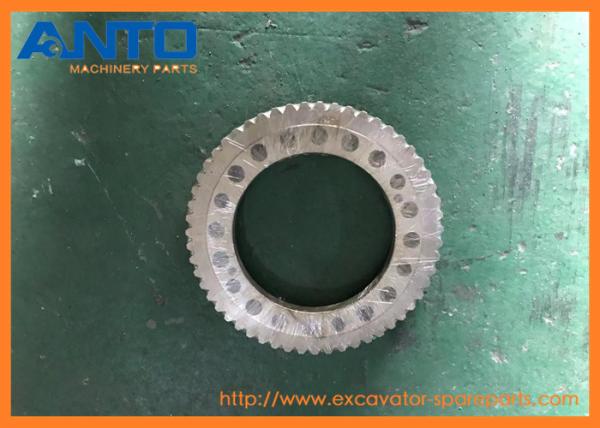

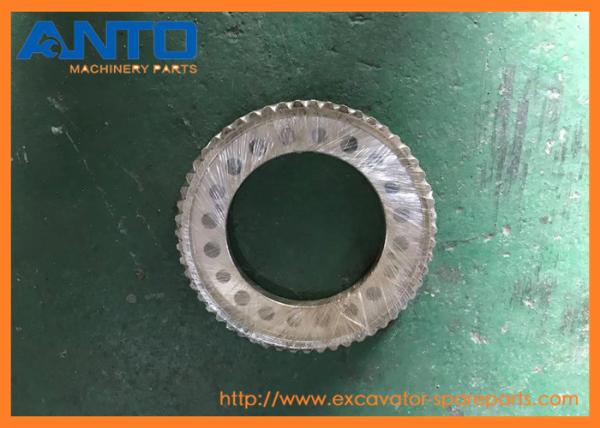

148-4715 1484715 Gear-Coupling Excavator Swing Gear Fitting For 315C 315D L 318B 318C
148-4715 1484715 Gear-Coupling Excavator Swing Gear Fitting For 315C 315D L 318B 318C
148-4715 1484715 Gear-Coupling Excavator Swing Gear Fitting For 315C 315D L 318B 318C
148-4715 1484715 Gear-Coupling Excavator Swing Gear Fitting For 315C 315D L 318B 318C
Specifications
Brand Name :
OEM
Model Number :
148-4715 1484715
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Model number :
315C 315D L 318B 318C 318E L 319C 319D 319D L 319D LN 320B 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 321B 321C 321D LCR 322B 322B LN 323D L 323D LN 323D2 L 323E L
Product name :
Gear-Coupling
Part number :
148-4715 1484715
Transportation :
By sea/air By express
Packing :
Standard Export Carton
Warranty :
6/12 Months
Description

  • 148-4715 1484715 Gear-Coupling Excavator Swing Gear Fitting For 315C 315D L 318B 318C

  • Specification

Application C A T excavator swing gear
Name Gear-Coupling
Parts No 148-4715 1484715
Model

315C 315D L 318B 318C 318E L 319C 319D 319D L 319D LN 320B 320C 320C FM 320C L 320D 320D FM 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 321B 321C 321D LCR 322B 322B LN 323D L 323D LN 323D2 L 323E L
Delivery time Stock for urgent delivery
Quality Brand new, OEM quality
MOQ 1 PCS
Design made in china
Means of transport By sea/air, DHL FEDEX UPS TNT Express
Packing As request or standard packing

  • Applicable models

EXCAVATOR 315C 315D L 318B 318C 318E L 319C 319D 319D L 319D LN 320B 320C 320C FM 320C L 320D 320D FM

320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR

321B 321C 321D LCR 322B 322B LN 323D L 323D LN 323D2 L 323E L
UNDERCARRIAGE OEMS

  • More gear parts supplied to C A T machine
7Y0674 GEAR-SUN
325 L, 330, 330 FM L, 330 L, OEMS
7Y0659 GEAR-PLANET
325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS
7Y0639 GEAR-SUN
325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS
7Y0673 GEAR-RING
325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS
7Y0641 GEAR-COUPLING
325 L, 330, 330 FM L, 330 L, OEMS
7Y0642 GEAR-RING
325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS
1107229 GEAR-RING
330B, 330B L, OEMS

  • Parts List Diagram
Pos. Part No Qty Parts name Comments
1 094-0580 [1] PLATE (10-MM THK)
2 094-0611 [6] WASHER (47.3X76X1-MM THK)
3 096-1773 B [1] SHIM (0.15-MM THK)
096-1774 B [1] SHIM (0.3-MM THK)
096-1775 B [1] SHIM (0.4-MM THK)
096-1776 B [1] SHIM (0.5-MM THK)
096-1777 B [1] SHIM (0.6-MM THK)
096-1778 B [1] SHIM (0.7-MM THK)
096-1779 B [1] SHIM (0.8-MM THK)
096-1780 B [1] SHIM (1-MM THK)
096-1781 B [1] SHIM (1.6-MM THK)
4 3E-2338 [2] PLUG-PIPE
5 5P-8245 [16] WASHER-HARD (13.5X25.5X3-MM THK)
6 6D-0692 [1] SEAL-O-RING
7 7M-8485 [2] SEAL-O-RING
8 7Y-1558 [1] SPACER (90X119.6X7.5-MM THK)
9 8T-0348 M [28] BOLT-SOCKET HEAD (M16X2X50-MM)
10 9X-8268 [28] WASHER (17.5X30X3.5-MM THK)
11 346-5215 [3] BEARING AS
12 114-1539 [6] PIN-DOWEL
13 148-4715 [1] GEAR-COUPLING (55-TEETH)
14 174-4874 [1] SEAL GP-DUO-CONE
15 333-2989 [1] GEAR-SUN (12-TEETH)
16 333-2990 [1] GEAR-SUN (18-TEETH)
17 333-2991 [3] GEAR-PLANETARY (38-TEETH)
18 333-2992 [3] GEAR-PLANETARY (35-TEETH)
19 333-2993 [3] SHAFT
20 333-2994 [3] SHAFT
21 333-2995 [1] CARRIER-PLANETARY
22 333-2996 [1] CARRIER-PLANETARY
23 333-2998 [1] HOUSING
24 455-4087 [1] HOUSING-MOTOR (LH)
25 457-7977 [1] GEAR-RING (90-TEETH)
26 480-6771 [1] COVER
27 498-9005 [1] GASKET
28 094-0584 [6] WASHER (40.3X72X1-MM THK)
29 095-0891 [6] PIN-SPRING
30 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
31 143-0811 M [16] BOLT (12X1.75X35-MM)
32 165-5785 [1] SPACER (40X60.9X1-MM THK)
33 227-6034 M [14] BOLT-FLANGE HEAD (M16X2X60-MM)
34 296-6220 [2] BALL BEARING
35 296-6268 [6] BEARING AS-ROLLER
B USE AS REQUIRED
M METRIC PART

148-4715 1484715 Gear-Coupling Excavator Swing Gear Fitting For 315C 315D L 318B 318C

  • Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Advantage

1. Offer Top quality & competitive products


2. Support 6-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service

  • Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
