275-6706 2756706 Blower Motor Truck Air Conditioner Parts For 3508 777D
275-6706 2756706 Blower Motor Truck Air Conditioner Parts For 3508 777D
275-6706 2756706 Blower Motor Truck Air Conditioner Parts For 3508 777D
275-6706 2756706 Blower Motor Truck Air Conditioner Parts For 3508 777D
275-6706 2756706 Blower Motor Truck Air Conditioner Parts For 3508 777D
275-6706 2756706 Blower Motor Truck Air Conditioner Parts For 3508 777D
Specifications
Brand Name :
OEM
Model Number :
275-6706 2756706
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T,D/P,D/A,Western Union,L/C,MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Air Conditioner Parts
Machine model :
924G 928G 930G 938G 950K 962K
Application :
Truck
Product name :
Blower Motor
Part number :
275-6706 2756706
Packing :
Standard Export Carton
Description
  • 275-6706 2756706 Blower Motor Truck Air Conditioner Parts Fit For 3508 777D



  • Specification
Name Blower Motor
Parts No 275-6706 2756706
Machine Model 924G 928G 930G 938G 950K 962K
Category Air Conditioner Parts
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing



  • Compatible models

ARTICULATED TRUCK 725 725C 730 730C 735 735B 740 740B

COMPACT WHEEL LOADER 914G EJECTOR TRUCK 730 730C 740 740B

INTEGRATED TOOLCARRIER IT14G IT14G2 IT28G IT38G IT38G II IT38H

PIPELAYER 583T 587R 587T PL61 PL83 PL87

TRACK-TYPE TRACTOR D6K D6K LGP D6K2 D6K2 LGP D6N LGP D6R D6R III D6T D6T LGP D6T LGPPAT D7R XR

TRUCK 770 770G 770G OEM 772 772G 772G OEM

VIBRATORY COMPACTOR CP-433E CP-44 CP-533E CP-54B CP-56 CP-573E CP-64 CP-663E CP-68B CP-74B CP-76 CS-423E CS-433E CS-44 CS-533E CS-54 CS-54B CS-563E CS-56B CS-583E CS-64 CS-663E CS-683E CS-68B CS-74 CS-74B CS-78B

WHEEL LOADER 924G 924GZ 924H 924HZ 924K 928G 928H 930G 930K 938G 938G II 938H 938K 950K 962K 966K 972K 980G II 980H 980K 980K HLG

WHEEL TRACTOR 621G 623G 627G 631G 637G 657G WHEEL TRACTOR-SCRAPER 613G Cater.pillar.



  • More other blower motor parts fit for C A T machine
1477985 MOTOR GP-WINDOW WIPER
725, 730, 735, 740
1741490 MOTOR AS-ELECTRIC
416B, 416C, 426C, 428B, 428C, 436C, 438C, 446B, 65C, 65E, 75C, 75D, 75E, 85C, 85D, 85E, 928G, 933, 933C, 939, 939C, 95E, D3C III, D4C III, D5C III
1741486 MOTOR AS-BLOWER
30/30, 307, 307B, 312, 312B L, 315, 315B L, 317, 317B LN, 318B, 320B, 322B L, 322B LN, 325B L, 325D FM LL, 330, 330B L, 330D FM, 345B, 345B II, 345B II MH, 345B L, 350, 365B, 365B II, 375, 375 L, 385B...
1350611 MOTOR GP-WINDOW WIPER
120H, 120K, 120K 2, 120M, 120M 2, 12H, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 140H, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 14H, 14M, 160H, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H...
1129565 MOTOR AS-BLOWER
307, 312, 315, 317, 322 FM L, 330, 330 L, 350, 375, 375 L, 5080, 769D, 771D, 773D, 775D, 776D, 777D, 914G, 924G, 928G, 938G, IT14G, IT28G, IT38G
1741494 MOTOR AS-BLOWER
120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 140H, 140H ES, 140H NA, 160H, 160H ES, 160H NA, 312B L, 315B L, 317B LN, 318B, 375 L, 5130, 5230, 611, 613C II, 615C, 621F, 621G, 623F, 623G, 627F, 6...
3086335 MOTOR GP-ELECTRIC
135H, 135H NA, 143H, 14H, 14H NA, 160H ES, 160H NA, 163H NA, 517, 527, 539, 572R, 816F, 816F II, 824H, 826C, 826G, 826G II, 826H, 834G, 834H, 836, 836G, 836H, 950H, 953C, 963C, 966H, 973C, 988G, 988H,...
1741495 MOTOR GP-ELECTRIC
824G II, 826G II, 836, 910G, 914G, 928G, 953C, 963B, 966G II, 973, 980G, 980H, D5M, D6M, D6R II, D8R, D8R II, IT14G, IT28G
3161927 MOTOR AS-BLOWER
120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 135H NA, 140H, 140H ES, 140H NA, 143H, 14H, 14H NA, 160H, 160H ES, 160H NA, 163H, 163H NA, 16H, 16H NA, 24H, 611, 613C II, 615C, 621F, 621G, 621H, 62...
2056029 MOTOR AS-ELECTRIC
550, 550B, 560B, 570, 570B, 580, 580B, 824G, 825G, 938G, 938G II, 938H, 950G, 950G II, 950H, 962G, 962G II, 962H, 966G, 966G II, 966H, 972G, 972G II, 972H, 980G, 980G II, IT38G, IT38G II, IT38H, IT62G...
1649206 MOTOR AS-BLOWER
320B, 325B L, 330B L, 924GZ, 938G, CS-531D, CS-563D, CS-583D, IT38G

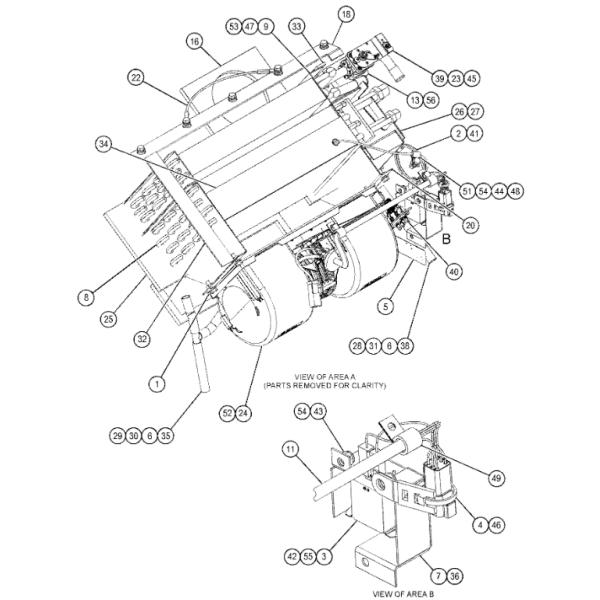

  • Catalog parts list
Pos. Part No Qty Parts name Comments
1 153-6932 [1] GASKET
2 5P-6010 D
TUBE (1-M)
3 3E-5464 [1] SWITCH AS-THERMOSTAT (HVAC)(AIR CONDITIONER)
4 3S-2093 [2] STRAP-CABLE
5 8C-3756 [1] FILM-IDENTIFICATION (AIR CONDITIONER)
6 8C-5682 [2] TEE
7 102-0340 [1] COVER
8 117-5174 [1] COIL AS-EVAPORATOR
9 117-5175 [1] COIL AS-HEATER
10 117-9066 [3] LATCH AS
11 118-8580 [1] HARNESS AS-HEATER & AIR COND

155-2270 [1] KIT-CONNECTING PLUG (2-PIN)



(INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL)

102-8805 [1] KIT-RECEPTACLE (6-PIN)



(INCLUDES RECEPTACLE AS & WEDGE)

6T-6505 [6] HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK)

6T-6506 [6] TERMINAL-BLADE (14-GA TO 18-GA)

9P-2300 [1] GROMMET

9W-0844 [2] SOCKET-CONNECTOR (14-GA TO 16-GA)

9W-0852 [6] PIN-CONNECTOR (14-GA TO 16-GA)
12 130-7245 [1] PLATE-COVER
13 130-7246 [1] BRACKET
14 130-7247 [1] GASKET
15 130-7248 [1] GASKET
16 130-7249 [1] GASKET
17 130-7250 [1] GASKET
18 130-7252 [1] GASKET
19 130-7254 [1] GASKET
20 130-7258 [1] PLATE AS

9V-7451 [2] NUT-WELD (1/4-20-THD)
21
[1] PLATE
22 141-8896 [1] STRAP
23 248-6772 [4] SCREW-MACHINE (8-16X7.75-IN)
24 275-6706 [1] MOTOR AS-BLOWER (24-VOLT)

102-8802 [1] KIT-RECEPTACLE (2-PIN)



(INCLUDES RECEPTACLE AS & WEDGE)

9W-0852 [2] PIN-CONNECTOR (14-GA TO 16-GA)
25 394-5213 [2] SEAL
26
[1] BRACKET
27
[1] GASKET
28
[1] TUBE
29
[1] TUBE
30
[1] TUBE
31
[1] TUBE
32
[1] GASKET
33
[1] GASKET
34
[1] GASKET
35
[1] TUBE
36
[2] SCREW
37
[1] CASE AS
38
[1] TUBE
39
[1] VALVE AS-WATER
40 546-1805 [1] RESISTOR AS
41 068-8993 [1] GROMMET
42 3B-4501 [2] LOCKWASHER
43 3E-9865 [8] LOCKNUT (1/4-20-THD)
44 4M-5281 [27] BOLT (1/4-20X0.75-IN)
45 4M-6582 [1] SEAL-O-RING
46 4P-7581 [1] CLIP (LADDER)
47 5P-8167 [2] BOLT (3/8-16X0.625-IN)
48 7X-0499 M [19] NUT-CLINCH (1/4-20-THD)
49 8J-1256 [2] CLIP (LOOP)
50 8L-7905 [12] RIVET-POP
51 8M-2771 [2] CLIP
52 8T-0337 M [4] SCREW-MACHINE (M4X0.7X12-MM)
53 8T-4121 [2] WASHER-HARD (11X21X2.5-MM THK)
54 8T-4205 [35] WASHER-HARD (7.2X14.5X2-MM THK)
55 8T-6631 [2] SCREW-MACHINE (8-32X0.5-IN)
56 9X-2185 [4] SCREW (8-15X0.44-IN)

D
ORDER BY THE METER

M
METRIC PART

275-6706 2756706 Blower Motor Truck Air Conditioner Parts For 3508 777D




  • We could supply the following spare parts


1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.


2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.


3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.


4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.


5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.


6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.




  • Advantage


1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service




  • Packing and Shipping


Packing Details :


inner packing : plastic film for wrapping


external packing : wooden


Shipping :


within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.


1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,


2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.


3. By Sea: Delivery from the Huangpu port .
