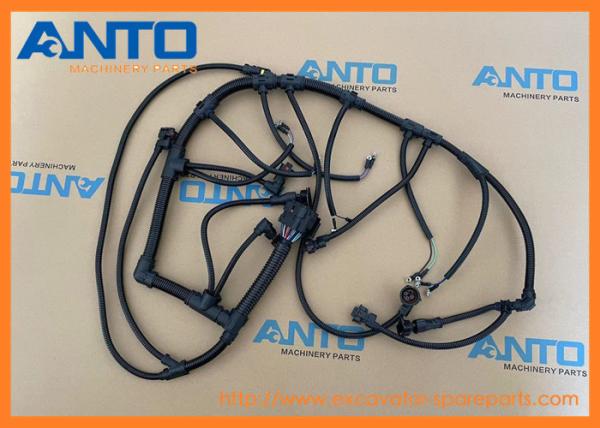

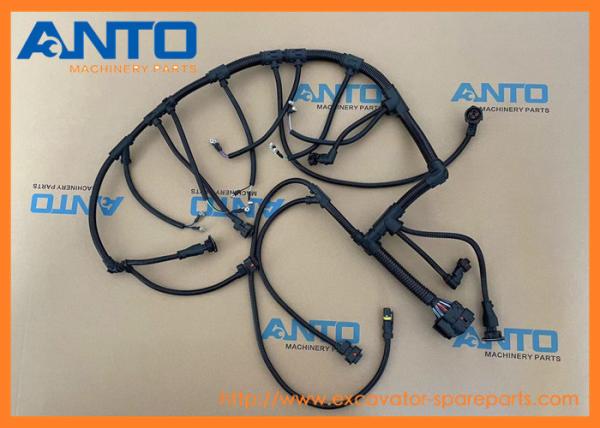

20893636 VOE20893636 Main Cable Harness Excavator Engine Parts For Vo-lvo EC240B EC240C
20893636 VOE20893636 Main Cable Harness Excavator Engine Parts For Vo-lvo EC240B EC240C
20893636 VOE20893636 Main Cable Harness Excavator Engine Parts For Vo-lvo EC240B EC240C
20893636 VOE20893636 Main Cable Harness Excavator Engine Parts For Vo-lvo EC240B EC240C
20893636 VOE20893636 Main Cable Harness Excavator Engine Parts For Vo-lvo EC240B EC240C
20893636 VOE20893636 Main Cable Harness Excavator Engine Parts For Vo-lvo EC240B EC240C
Specifications
Brand Name :
OEM
Model Number :
20893636 VOE20893636
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
D/P,T/T,Western Union,MoneyGram,D/A,L/C
Supply Ability :
568 PCS per week
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Vo-lvo Excavator Engine Parts
Machine Model :
EC240B EC240C EC290B EC290C FC2924C FC3329C G900 MODELS L105 L110E L110F L120E L120F
Parts No. :
20893636 VOE20893636
Parts name :
Main Cable Harness
Warranty :
6 Months
Package :
standard export carton
Description


  • 20893636 VOE20893636 Main Cable Harness Excavator Engine Parts For Vo-lvo EC240B EC240C EC290B




  • Spec Sheet
Product name Main cable harness
Part number 20893636 VOE20893636
Model

EC240B EC240C EC290B EC290C FC2924C FC3329C G900 MODELS L105 L110E L110F L120E L120F

Category group Vo-lvo Excavator Engine Parts
MOQ 1 PCS
Warranty 6 months
Payment term T/T, Western Union, PAYPAL
Delivery time 1-3 days after receiving the payment
Packing As request or standard packing
Means of transport By sea/air, DHL FEDEX UPS TNT EMS

​



  • Applicable models

EXCAVATORS

EC240B EC240C EC290B EC290C FC2924C FC3329C G900 MODELS L105 L110E L110F L120E L120F




  • More main parts for Vo-lvo heavy equipment
VOE3987034 Main switch
A20, A20C, A20C VOLVO BM, A25 VOLVO BM, A25B, A25C, A25C VOLVO BM, A25D, A25E, A25F, A30 VOLVO BM, A30C, A30C VOLVO BM, A30D, A30E, A30F, A35, A35C, A35C VOLVO BM, A35D, A35E, A35E FS, A35F, A35F FS, ...
VOE20867178 Main bearing kit
A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, FB2800C, FBR2800C, G900 MODELS, L150E
VOE20867757 Main Bearing Ki
A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, FB2800C, FBR2800C, G900 MODELS, L150E
VOE20405541 Main bearing
ABG7820/ABG7820B, ABG8820/ABG8820B, BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, EC200D, EC210D, EC240B, EC240C, EC250D, EC290B, EC290C, EC300D, ECR305C, EL70C VOLVO BM, EW1...
VOE21141948 Main bearing
ABG7820/ABG7820B, ABG8820/ABG8820B, BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, EC200D, EC210D, EC240B, EC240C, EC250D, EC290B, EC290C, EC300D, ECR305C, EL70C VOLVO BM, EW1...
VOE21234191 Main bearing
ABG7820/ABG7820B, ABG8820/ABG8820B, BL60, BL60B, BL61, BL61B, BL61PLUS, BL70, BL70B, BL71, BL71B, BL71PLUS, EC200D, EC210D, EC240B, EC240C, EC250D, EC290B, EC290C, EC300D, ECR305C, EL70C VOLVO BM, EW1...
VOE15152461 Main axle beam
G900 MODELS, G900B, G900C
VOE16021145 Main axle beam
G900 MODELS, G900B, G900C
VOE20867751 Main Bearing
A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, FB2800C, FBR2800C, G900 MODELS, L150E
VOE20867761 Main Bearing Ki
A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, FB2800C, FBR2800C, G900 MODELS, L150E




  • Parts List Diagram
Pos. Part No Qty Parts name Comments
1 VOE20893636 [1] Main Cable Harness ENG - 10785521
1 VOE21814758 [1] Wiring harness ENG 10785522 -

CONNECTED TO:

Connector

Engine speed,camshaft SE2703

Solenoid valve

Coolant temperature SE2606

Charge-air temperature SE2507, SE2508

Fuel Regulator

Fuel Nozzle MA2301-MA2306

Fuel pressure SE2301

Oil pressure sensor SE2203

Engine speed SE2701

Pressure Sensor SE2309
2 VOE20864600 [1] Bracket
3 VOE20460347 [7] Clamping band
4 VOE23002666 [1] Connector
5 VOE21377079 [1] Bracket
6 VOE20450802 [2] Flange screw
7 VOE20834570 [7] Retainer
7 VOE20792329 [1] Clamping Band
7 VOE21011793 [1] Bracket
8 VOE21896711 [1] Retaining plate
9 VOE20405672 [4] Screw
10 VOE4881440 [REQ] Cable tie
11 VOE21063356 [2] Retainer
12 VOE20450683 [1] Adapter
13 VOE13947628 [1] Plane gasket
14 VOE21531072 [1] Temperature sensor SE2606
15 VOE20524936 [1] Pressure sensor SE2507, SE2508
16 VOE20450728 [1] Bolt
17 VOE22435058 [1] Sensor SE2703
18 VOE20450694 [1] Screw
19 VOE20700252 [1] Bracket
20 VOE20799862 [2] Bolt
21 VOE20450707 [1] Tachometer SE2701
22 VOE20450694 [1] Screw
23 VOE20450997 [2] Bracket
24 VOE21291011 [1] Pressure sensor SE2203
25 VOE22899626 [1] Pressure sensor SE2301
26 [1] Pressure Sensor SE2309
27 VOE22383368 [1] Level sensor SE2205, SE2202
28 VOE20828295 [1] Sealing ring
29 [1] Solenoid valve
30 VOE60100000 [1] Electronic unit E-ECU
31 VOE21071773 [4] Rubber element
32 VOE20460055 [1] Screw

20893636 VOE20893636 Main Cable Harness Excavator Engine Parts For Vo-lvo EC240B EC240C




  • Description


The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .



  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB


  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
