Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket
Specifications
Brand Name :
FRJX
Model Number :
Sk200/Sk200-6/Sk220/Sk230/Sk235
Certification :
CE ISO
Place of Origin :
QuanZhou China
MOQ :
20 pieces
Payment Terms :
L/C, T/T
Supply Ability :
5000 Piece/Pieces per Month
Delivery Time :
3-7Day
Packaging Details :
In Strong Fumigate Wooden Pallet Packing
After-sales Service: :
1 Year
Warranty: :
2000 Working Hours
Type: :
Crawler
Certification: :
ISO9001: 2000
Condition: :
New
Material: :
Steel Alloy
Description

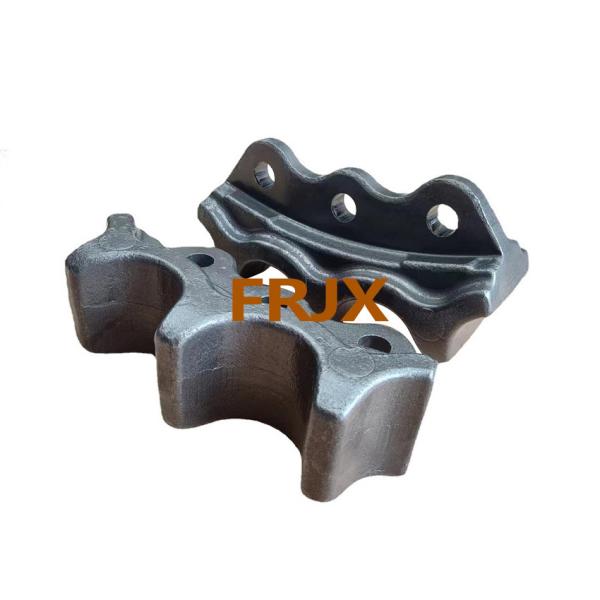

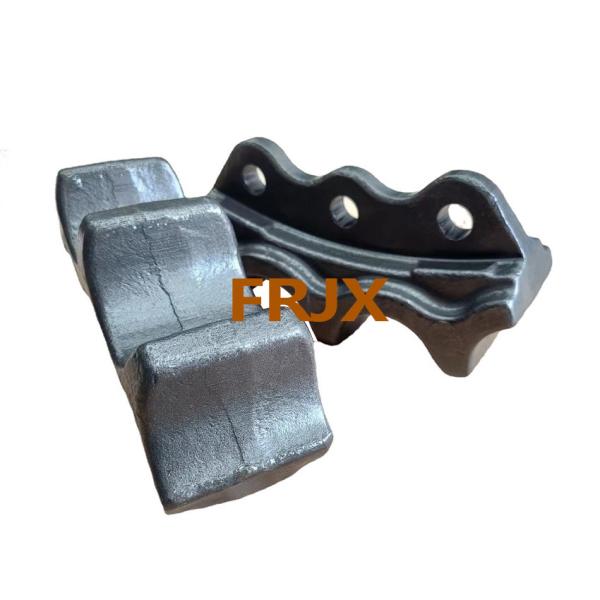

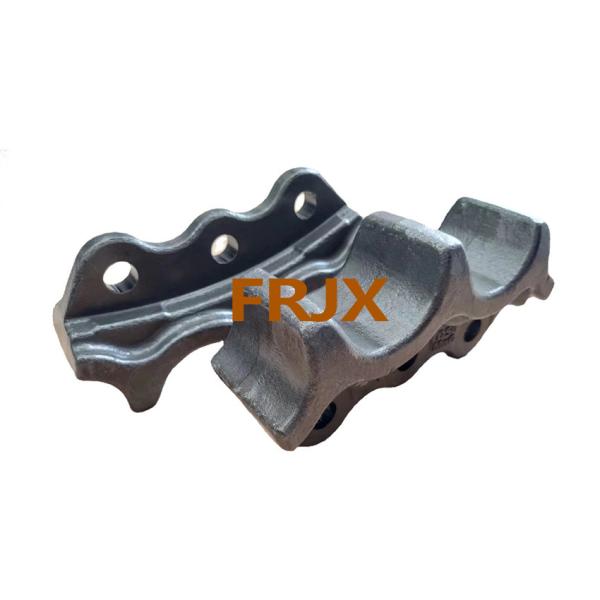

Sk200/Sk200-6/Sk220/Sk230/Sk235 Excavator Undercarriage Parts Sprocket Segment Group

FRJX delivers sprockets and segments for a very complete range of machines, from 0.8 to 100 tons. The sprockets and segments are suitable for both excavators and bulldozers.
The sprockets are first molded or forged and subsequently processed, giving them a special heat treatment. If steel does not contain sufficient quantities of carbon, then it becomes brittle during the hardening process. If only the surface is hardened, then the sprocket or segment will wear very fast over time. Therefore the sprocket teeth are hardened by means of induction hardening. FRJX segments are forged with precision, finished and hardened under special conditions.
Parame
Code		 A M P H W N-φ Z
DH55/R60 250 465 135 42 18 12-φ17 21
DH130 325 592 171 56 18.7 15-φ17.5 21
DH170 362 645 171 64 21.6 21-φ18 23
DH370 490 740 216 90 33 28-φ21 21
DH400 490 740 216 90 33 28-φ21 21
DH220/R225-7 402 660 190 68 18 30-φ16 21
DH280 450 760 203 74 25.5 16-021.5 23
DH450 325 590 171 52 22.4 15-φ17 21
E55 230 424 135 49 14.5 9-φ15.5 19
E70B 265 555 135 38 18 12-φ16 25
E70B-3 288 555 135 38 17 12-φ16 25
E120B 346 600 171.5 52 21 15-φ18 21
E200B 415 660 190 63 22.3 14-φ21.5 21
E305.5B 230 428 135 49 16 12-φ15 19
E320 456 660 190 65 23 16-φ21 21
E325 450 697 203 75 27 18-φ21.5 21
E330 515 813 216 80.5 28 16-φ21.5 23
E345 577 810 216 86 23 20-φ25 23
E450 561 885 216 86 26 24-φ27 25
E300B 450 770 190 70 25 16-φ21 25
Paramd
Code		 A M P H W N-l Z
EC140 366 591 171.5 58 16 22-φ17 21
EC150 320 650 171.1 56 15 20-φ18 23
EC240 410 658 190 62 21.4 18-φ19 21
EC290 450 704 203 84 28 16-φ21 21
EC360 450 760 216 90 27 24-φ21 21
EC460/R450 461 B19 216 87 26 24-φ21 23
EX30-5 204 350 101 28 14.6 9-φ13 21
EX35 210 350 101 27 15 9-φ13 21
EX55 230 420 135 42 12.3 9-φ15 19
EX60-1 290 535 154 50 18 12-φ17 21
EX70 330 535 154 40 19.6 12-φ18 23
EX90 330 535 154 40 19.6 12-φ18 21
EX100 356 590 171 58 21.7 16-φ17 21
EX136 370 591 171 56 16 16-φ18 21
EX150-1/EX150 365 643 171 65 17 22-φ17 23
EX200-1 415 657 175 63 21.6 16-φ22 23
EX200-2 430 658 190 70 20.8 16-φ21.5 21
EX200-3 419 658 190 70 24 16-φ22 21
EX300-3 465 704 203 90 28 20-φ22 21
UH04-7 268 600 171.5 64 16 16-φ18 21
UH045 284 600 171 67 19 16-φ19 21
UH025-5 245 535 154 50 14 121-φ18 21
UH025-7 245 534 54 49 16 12-φ17 21
UH063 330 655 171 66 18.5 16-φ17.5 23
UH081 276 665 175 65 22.3 14-φ21.5 21
UH083 370 660 175 70 23 16-φ22 23
HD307 265 514 135 38 18 12-φ17.5 23
HD550-3 362 650 171 64 22.7 15-017.5 23
HD550-7 362 650 171 64 22.7 21-φ18 23
HD700-2 362 590 171 60 21 15-φ17.5 21
HD1880 556 B21 216 90 28 24-φ25 23
HD800 402 660 190 62 21.3 22-φ18 21
MS120-2 380 645 171 5B 20 16-φ18 23
MS110-B/MS110 240 506 135 38 18.5 16-φ13 23
TB175 250 530 154 36 16 12-φ16 21
PC20 190 380 101 27 15 9-φ13 23
PC30 190 350 101 27 14.5 9-φ13 21
PC30-7 210 385 101 25 15.6 9-φ13 23
PC30-10 210 385 101 27 14 12-φ13 23
PC40-7 210 420 135 36 16 9-φ13 21
PC60-6/7 265 525 154 36 15 12-φ16 21
PC75 265 480 154 36 15 12-φ15.5 19
PC90 324 538 175 40 16.2 15-φ19 19
PC120-6 400 600 175 42 14.4 15-φ18 21
PC150 424 660 190 60 21.6 15-φ18 21
PC200-1 346 660 190 68 17 6-φ60 21
PC200-5 473 660 190 73 18 20-φ19 21
PC200-5 473 660 175 68 19 20-φ19 23

Sk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment SprocketSk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment SprocketSk200 Sk200-6 Sk220 Sk230 Sk235 Excavator Undercarriage Parts Segment Sprocket

FAQ:

1. You are a trader or a manufacture?
We are an industry and trade integration business, our factory located on Quanzhou Nanan Distric, and our sales department is in City centre of Xiamen. The distance is 80Kms, 1.5 hours.

2. How can I be sure the part will fit my excavator?
Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing.

3. How about the payment terms?
We usually accept T/T or Trade Assurance. other terms also could be negotiated.

4. What is your minimum order?
It depends on what you are buying. Normally, our minimum order is one 20' full container and LCL container (less than a container load) can be acceptable.

5. What is your delivery time?
FOB Xiamen or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 0-7 days.

6. What about Quality Control?
We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
