direct factory Promotion 100 safety Industrial Camera,safety offore ship,yard,ships camera,best quality
direct factory Promotion 100 safety Industrial Camera,safety offore ship,yard,ships camera,best quality
Specifications
Place of Origin :
China
Brand Name :
Famous
Certification :
FDA CE RoHS
Model Number :
HETAIDA RongFang
MOQ :
200PCS
Price :
negotiable
Packaging Details :
standard color box
Delivery Time :
2 days
Payment Terms :
T/T
Supply Ability :
10000pcs
Type :
Analog Camera
Style :
Dome Camera
Sensor :
CMOS
Technology :
Pan / Tilt / Zoom
Special Features :
Waterproof / Weatherproof
Description

Our product all have obtain governments approval certificates,quality is 100% guaranteed in flammable environments,such as petro chemical,oil tank and mining,gas station,medicine,army,oil plant etc.Our product could realized safety monitoring this explosive environments,also our corporation offer whole line technical support and installation assistance,we offer 1 month return and 1 year free requirements because of our quality problems. We wish to cooperate with you to create a bright future and mutual benefit.Much appreciation for your prompt attention in advance.Please feel free to contac us for more information.

direct factory Promotion 100 safety Industrial Camera,safety offore ship,yard,ships camera,best quality

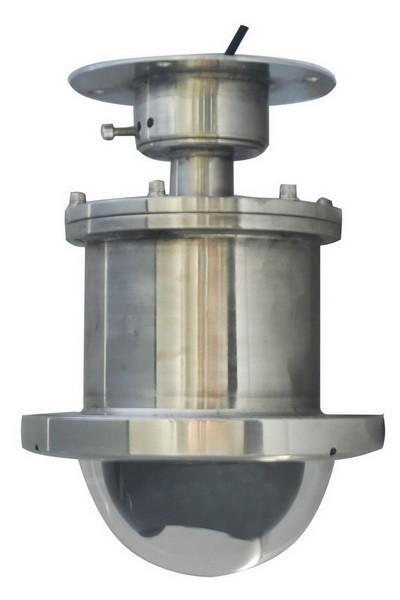

EX-PROOF PTZ DOME CAMERA

FEATURES

Advanced EX-proof CCTV equipment

304 or 316L stainless steel material

High resolution camera module with zoom lens

Support multiple control protocols

360° pan continuous rotation

120° tilt rotation

Support advanced OSD menu

Multiple scanning mode

Ceiling mounting for indoor application

Description

explosion proof high speed dome camera, integrated with the features of both traditional ex-proof products and high speed dome camera, makes it more advanced in explosion proof area. It can be used in the special area of explosive and flammable for monitoring.

Different zoom camera modules can be used in this dome. 18x Sony D/N camera module or 23 x Hitachi D/N camera modules are chosen as the standard configuration.

Decimal address code is easy for setting. Multiple communication protocols and baud rate can response different application conditions.

Recommended Accessories

EX Junction Box

EX Control Box

CERTIFICATE

ELECTRICAL

Ex-marking

RFB50-Ex

Input voltage

100VAC~240VAC, 50/60Hz

Certificate

ExdIIBT6/ExdIICT6 IP66

Current

≤300mA

Power

Less than 50W

MECHANICAL

Communication

RS-485

Communication rate

2400 / 4800 / 9600 / 19200 bps

Material

Stainless steel 304 or 316L

Protocol

Multiple including Pelco D/P

Surface

Electro-polished

Preset

128

IP

IP66

Preset accuracy

±0.1°

Pan

360° continuous pan rotation

Video output

1.0±0.2Vp-p / 75

Tilt

-90°~+30°

Cable connection

6-core composite cable

Pan speed

0.1°/S ~ 60°/S

Tilt speed

0.1°/S ~ 60°/S

TYPICAL CAMERA

Weight/Shipping Weight 22Kg / 26Kg

Brand

HITACHI

Mounting

Indoor ceiling mounting

Model

RFB50-Ex

ENVIRONMENTAL

Mode

PAL

Scanning system

1:1 Progressive scanning

Air pressure

86 to 06KPa

Image sensor

1/4″ CCD

Temperature

-20 to +60 degree

Line scan

15.625KHz

Humidity

U95%RH +25 degree

Frame scan

50Hz

DIMENSION

Pixel

795(H) x 596(V)

Lens

23x optical zoom / auto focus

10x digital

Min. focus

0.01m/ 1.0m

View angle

54°/ 2.5°

Min. Lux

0.05Lux/ 0.01Lux

TVL

540TVL/ 600TVL

S/N ratio

> 50dB

Face view

Side view

Video output

BNC / 1.0±0.2Vp-p / 75

MOUNTING SIZE

Tilt Rotation -90°~+30°

now all the ex-proof cameras all could work via worldwide server like normal cameras, you can connect it whatever and 7*24hours via cellphone and computer,also could make POE in ex-proof field, I believe all this new technology in ex-proof could have good market
