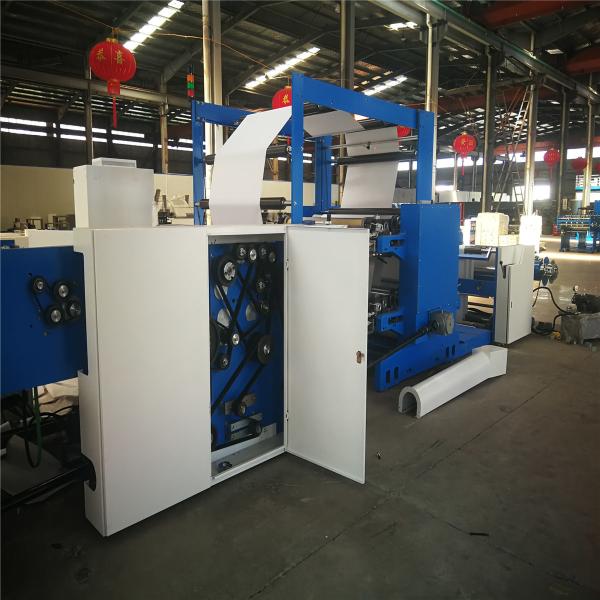

LD-1020 Fully Automatic Exercise Book Machine

Production line of one roll paper 2/2 flexographic one feeder inserteer saddle stitching

Description :

This machine adopts high techniques such as microcomputer control , electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and ink flexo printing as ink flexo printing is environmentally-friendly and scientific. This production line is an ideal choice of mass production of staple-binding notebooks, with a perfect combination of 12 Processes : 1.from reel one paper unwind , 2.high speed flexographic printing with - 2/2 , 3.Cross cutting, 4.Overlapping, 5.Collecting, 6.One unit auto cover inserting, 7.Stitiching Unit, 8.Folding, 9.Back pressing, 10.Strip cutting waste, 11.Trimming and slitting, 12.Counting delivery to the finishing good products of notebooks.

Product Features :

1. Take it easy, accurate color, long life.

2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.

3. Use special diagonal-tooth gear, accurate printing size.

4. Printing rolls treated by dynamic balance, static balanced.

5. Print produce are clear and good arrangement quality.

6. Configuration: Japan Brand NSK Bearing, Germany Hohner Stitching head, Germany IKS Shanghai Knife, Switzerland Habasit Feeding Straps etc.

Technical Parameters :

1) Product model LD-1020

2) Web width 580x1020mm

3) Max. printing speed 240m/min

4) Repeat range 300x670mm

5) Cutting length 300x670mm

6) Counting & collecting 5x50sheets

7) Max. reel paper diameter 1200mm

8) Sheet weight 45x120g

9) Notebook width 130x225mm

10) Cover weight 80x300g

11) Appendix weight 40x150g

12) Max. output frequency 45times

13) Sheet stitching thickness 8mm

14) Total power 30kw

15) Overall dimensions(LxWxH) 20400x32500x2500mm³

16) Machine weight 17T
