High Speed Flexo Printing Machine Exercise Notebook Ruling Machine

Product Application

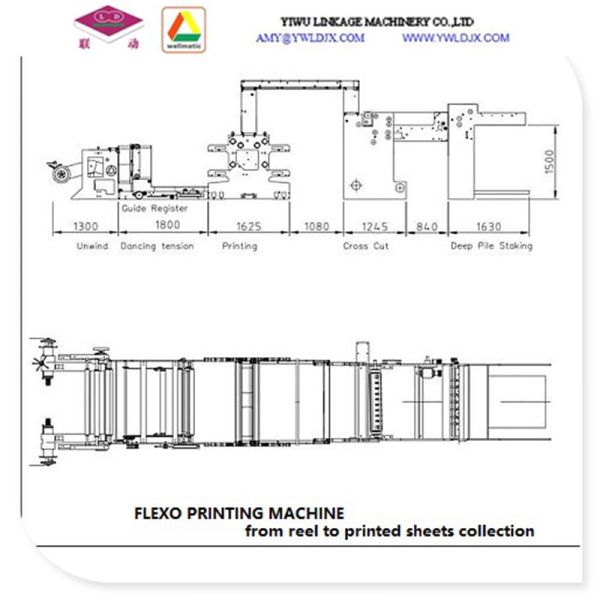

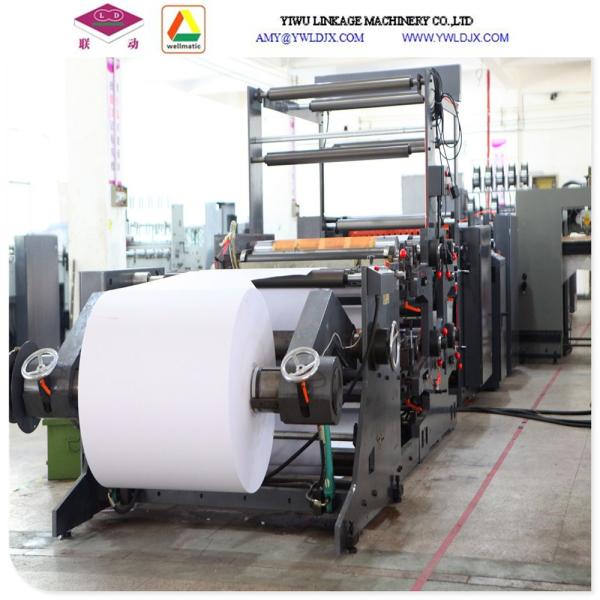

This machine adopts high techniques such as microcomputer control , electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and ink flexographic printing as ink flexographic printing is environmentally-friendly and scientific. This production line is an ideal choice of mass production of staple-binding notebooks, with a perfect combination of 5 processes from reel one paper unwind , high speed flexographic printing with - 2/2 , paper cross cutting , collecting and finished sheets collect.

Specification:

Product Model LD-1020YX

Web Width 580-1020mm

Max．Printing Speed 300m/minute

Repeat Range 300-670mm

Cutting Length 300-670mm

Counting & Collecting 5-50sheets

Max．Reel Paper Diameter 1200mm

Sheet Weight 45-120g

Total Power 30kw

Overall Dimensions （L X W X H ) 9300 X 2600 X 2300mm

Machine Weight 7.5t

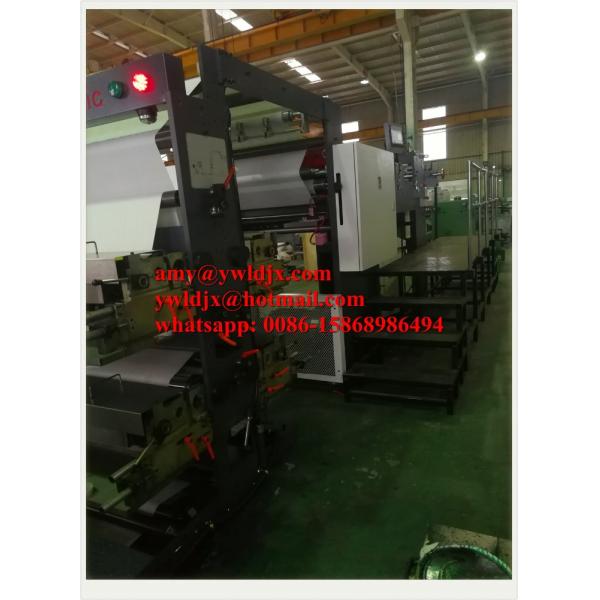

LD1020YX School Exercise Book Notebook Making Machine From Reel to Pile

Main Features:

1) Fully automatic, take it easy, accurate color, long life.
2) Environmentally-friendly ink flexographic two colors printing
3) Use motors, variable frequency speed control, saving electricity, small running fluctuations.
4) Use special diagonal-tooth gear, accurate printing size.
5) Printing rolls treated by dynamic balance, static balanced.
6) Print produce are clear and good arrangement quality.
7) Speed adjustable, suitable for variable paper

Our company is a manufacturing enterprise specializing in producing Exercise and Notebook Production Line equipment as follows.

• wire stapled student notebooks,

• soft cover office notebooks,

• high-grade plastic covered notebooks,

• legal pads,

• carbonless invoice multi copy notebooks,

• glue-bound notebooks etc.

Automation and efficiency are built in from the initial design taking workplace safety, environmental and export requirements into consideration. Ease of maintenance and operation has been considered.

We have sold equipment into more than 20 provinces in China and more than 11 countries around the globe.

Employees number 80 plus employees, more than 20 being in the design, research and development team. We have two production bases and research teams in YiWu city and KunShan city. The factory areas exceed 10 000 square meters. Company annual sales are more than 50 million Yuan.

Machine Parts

Name: soft paper cover feeder

Brand: wellmatic

Original: China

The paper cover feeder was developed by our factory.

Main Features

Name: saddle stitching head
Brand: Hohner
Original: Germany
Made in Germany.

Machine Parts

Name: STAMPING ROLLER BEARING
Brand: FAG

Original: Germany
We purchased the STAMPING ROLLER BEARING from Germany.

Main Features

Name: CUTTING SYNCHRONOUS BELT

Brand: SOMGS
Original: Germany
We purchased the CUTTING SYNCHRONOUS BELT from Germany.
