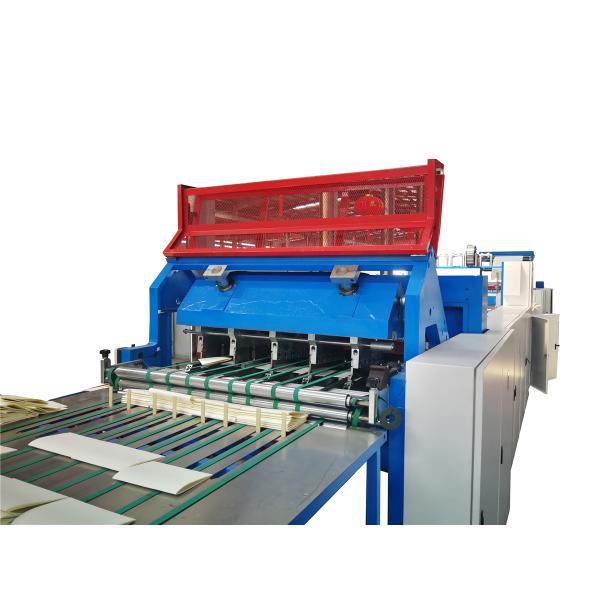

LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
LD1050 School Writing Notebook Making Machine Perfect for School Stationery Needs
Specifications
Applicable Industries :
Manufacturing Plant, Printing Factory
Showroom Location :
Viet Nam, Indonesia
Condition :
New
Product Type :
Exercise Book Machine
Processing Type :
Paper Slitting and Rewinding Machine
Place of Origin :
Zhejiang, China
Brand Name :
ywldjx
Voltage :
380 V, 3 Phase
Power :
30 Kw
Dimension(L*W*H) :
20400x32500x2500 mm
Weight :
18 kg
Warranty :
1 Year
Production Capacity :
50sets/year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine
After Warranty Servi :
Video technical support
After Warranty :
Online support
After Warranty Service :
Spare parts
After-sales Service Provided :
Field maintenance and repair service
Name :
LD1050 School Writing Notebook Making Machine
Final Products :
Wire Stapled Exercise Book
Material :
Web Paper, Wires
Product Keywords :
Promotional Office School Writing Notebook Make Machine
Function :
Making Paper Notebook
Packaging Details :
Wooden Cases. Loaded by 2 x 40 HQ feet containers. /Promotional Office School Writing Notebook Make Machine
Port :
Ningbo-China
Supply Ability :
100 Unit/Units per Year
MOQ :
1 set
Price :
$170,000.00/units >=2 units
Description

LD-1020 School Writing Paper Notebook Making Machine

Production line of one roll paper 2/2 flexographic one feeder inserteer saddle stitching

Product Description :

This machine adopts high techniques such as microcomputer control , electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and ink flexo printing as ink flexo printing is environmentally-friendly and scientific. This production line is an ideal choice of mass production of staple-binding notebooks, with a perfect combination of 12 processes from: 1.one reel paper unwind, 2.high speed flexographic printing with - 2/2 color, 3.Cross cutting, 4.Over lapping 5.collecting, 6.One unit auto cover inserting, 7.Stitching Unit, 8.Folding, 9.Back pressing, 10.Strip cutting waste, 11.Trimming and slitting, 12.Counting delivery to the finishing good products of notebooks.

Product Features :

1. Take it easy, accurate color, long life.

2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.

3. Use special diagonal-tooth gear, accurate printing size.

4. Printing rolls treated by dynamic balance, static balanced.

5. Print produce are clear and good arrangement quality.

6. Configuration: Japan Brand NSK Bearing, Germany Hohner Stitching head, Germany IKS Shanghai Knife, Switzerland Habasit belt etc.

Technical Parameters :

1) Product model LD-1020

2) Web width 580-1020 mm

3) Max. printing speed 240 m/min

4) Repeat range 300-670 mm

5) Cutting length 300-670 mm

6) Counting & collecting 5-50sheets

7) Max. reel paper diameter 1200mm

8) Sheet weight 45-120g

9) Notebook width 130-225mm

10) Cover weight 80-300g

11) Appendix weight 40-150g

12) Max. output frequency 45 times

13) Sheet stitching thickness 8 mm

14) Total power 30 kw

15) Overall dimensions(LxWxH) 20400x32500x2500 mm

16) Machine weight 17 T
