Exhaust Flexible Pipe Stainless Steel 201 Double Braids ID 45mm
Exhaust Flexible Pipe Stainless Steel 201 Double Braids ID 45mm
Specifications
Brand Name :
SENSU
Model Number :
45mm
Certification :
IATF 16949
Place of Origin :
Hebei China
MOQ :
500 PCS
Payment Terms :
L/C, T/T
Supply Ability :
80000/PCS/MON
Delivery Time :
25-30 Days
Packaging Details :
Plastic bag, Box, Cartons, Plallet
Item :
Exhaust Flexible Pipe Stainless Steel 201 Double Braids ID 45mm
Cap Material :
Aluminied, 409, 409 Shiny
Braid Material :
SS201, 202, 304
Braid Type :
Mesh braid, Wire braid
Layer :
Single, Double
Car model :
Universal Car
Color :
Silver, Polished
Application :
Engine Parts, Auto Parts
Port of Loading :
Tianjin
Description

Exhaust Flexible Pipe Stainless Steel 201 Double Braids ID 45mm​

About this item

  • High quality: Straight piping connector, Exhaust Adaptor adopts high quality stainless steel, sturdy and durable. Good quality can provide a safer guarantee for your life.
  • Features: Double braided (inner and outer) with stainless steel wires. Heavy duty and outstanding, optimum durability for you. Tightly woven interlock braid pattern for reinforced strength.
  • Pretest: Exhaust Adaptor has been thoroughly tested before shipping to ensure product perfect. If you are not satisfied, we accept all of the return, replacement or refund requests
  • Easy to install: Flex Pipe Exhaust is easy to install, but professional installation is highly recommended (no instruction included).

Details:

Product Auto Exhaust Flexible Pipe
Materials Stainless steel 201,202,304,316L
Cap Material Aluminied, 409, 409 Shiny
Braid Material SS201, 202, 304
Braid Type Mesh braid, Wire braid
Feature
  • Flexible pipe, automobile exhaust system component
  • Used to decrease engine noise and vibration
  • Absorbs muffler pipe thermal expansion
  • Compensates for exhaust converter misalignment
  • Reduces air pollution
  • can be produced as client's requirements

Bellow Materials

 Stainless steel 201,202,304,316L
Cap Materials Aluminied, 409, 409 Shiny
Braid Materials SS201, 202, 304
Braid Type Mesh braid, Wire braid
Layer Single, Double
Car Model Universal Car, OEM
Color Silver
Shipping & Payment:
Price Term EXW, FOB, C&F, CIF
Payment Term 50% in advance. balance be paid before delivery
Payment Method T/T , L/C
Delivery Time According to order quantity, if on stock, fast delivery
Packing Details Negotiated Standard Exporting Packaging

Structure:
1. Flexible pipe with inner braid liner
2. Flexible pipe with interlock liner
3. Flexible pipe with inner bellow
4. Stainless steel Bellows

Specifications:

Item Diameter (mm) Body Length(mm) Oval Length (mm)
Auto Exhaust Joint/Exhaust Flexible Pipe 45 100 100
45 150 150
45 200 200
45 250 250
51 100 100
51 150 150
51 200 200
51 250 250
57 100 100
57 150 150
57 200 200
57 250 250
63 100 100
63 150 150
63 200 200
63 250 250
76 100 100
76 150 150
76 200 200
76 250 250
89 100 100
89 150 150
89 200 200
89 250 250
102 100 100
102 150 150
102 200 200
102 250 250

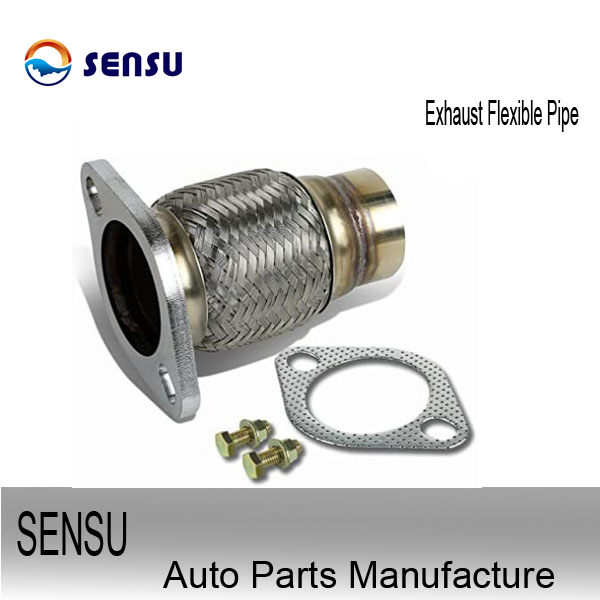

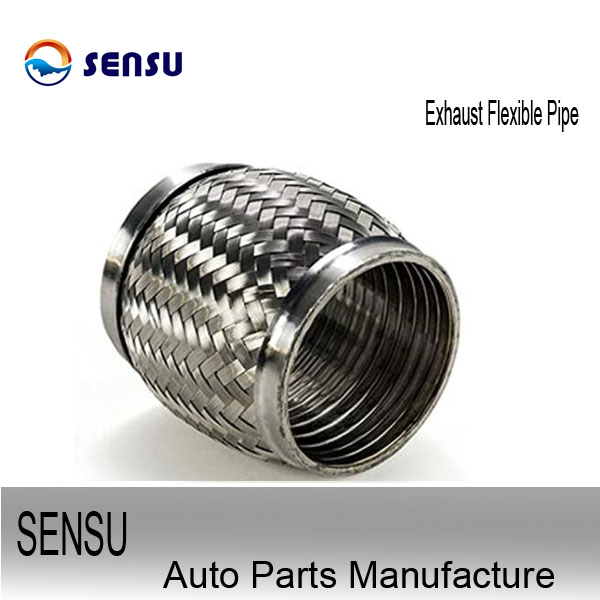

Products Pics

Exhaust Flexible Pipe Stainless Steel 201 Double Braids ID 45mm

Exhaust Flexible Pipe Stainless Steel 201 Double Braids ID 45mm

Exhaust Flexible Pipe Stainless Steel 201 Double Braids ID 45mm

Advantage

●1. Suitable for a wide range of the tail pipe link.

●2. We can make parts with a high degree of flexibility.
●3. In particular, we increase the height of the bellows to enhance the effectiveness of vibration absorption.
●4. This product is used in exhaust system and high-and low-temperature.
●5. It can decrease engine noise and vibration.

How to Install the Exhaust Flexible Pipe

  • 1. Grab the bolts holding the flex pipe to the flange on the muffler with a wrench. Turn counterclockwise to remove them. Then pull the flex pipe out of the flange.
  • 2. Remove the clamp holding the flex pipe to the exhaust downpipe.
  • 3. Pull out the old gasket that sat between the flex pipe and the muffler flange. Then clean out the flange.
  • 4. Hammer out any dents from the end of the exhaust downpipe. Loosen the nuts holding the muffler and downpipe.
  • 5. Coat a new muffler gasket with exhaust sealer, then place it in the muffler flange and fit the end of the new flex pipe over it.
  • 6. Coat the end of the downpipe with more exhaust sealant and place the free end of the new flex pipe over it. Adjust the position of the muffler and downpipe until the flex pipe is straight but free of tension.
  • 7. Thread bolts through the holes in the end of the flex pipe attached to the muffler flange. Tighten them to secure the pipe to the flange.
  • 8. Place a new clamp around the flex pipe where it meets the downpipe and tighten it. Retighten the bolts holding the muffler and downpipe and cut any plastic ties that are wrapped around the flex pipe.
