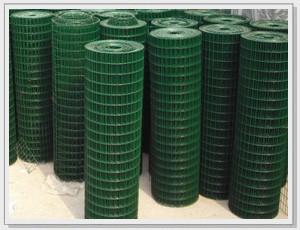

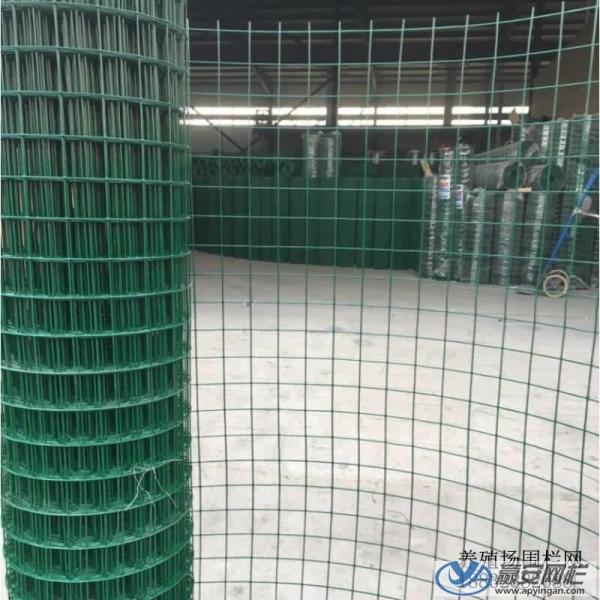

1/2inch By 1/2 Inch Pvc Coated Welded Wire Mesh Anti Aging
1/2inch By 1/2 Inch Pvc Coated Welded Wire Mesh Anti Aging
1/2inch By 1/2 Inch Pvc Coated Welded Wire Mesh Anti Aging
1/2inch By 1/2 Inch Pvc Coated Welded Wire Mesh Anti Aging
Specifications
Brand Name :
TALIN
Model Number :
1/2''x1/2'' ,1/4''x1/4'' ,4/3''x3/4'' ,1''x1''，2"*1", 2"*2", 3"*2", 4"*2", 4"*3", 4"*4"
Place of Origin :
CHINA
MOQ :
2000 Rolls
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Rolls per week
Delivery Time :
10 days
Packaging Details :
PVC SHRINK
Material :
quality low carbon steel wire
Aperature :
1/2''x1/2'' ,1/4''x1/4'' ,4/3''x3/4'' ,1''x1''，2"*1", 2"*2", 3"*2", 4"*2", 4"*3", 4"*4"
Length :
10-50m
Width :
0.6-1.8m
Wire diameter before pvc coating :
0.56-4mm
Wire diameter after pvc coating :
0.9-4.88mm
Processing :
PVC coated after welding of steel wire. Electro galvanizing, hot-dip galvanizing or PVC coating can be done separately.
Color :
green,yellow,blue
Description

1/2*1/2 inch corrosion-resistant, anti-aging hot-dip plastic-dipped welded wire mesh

After the pvc welded wire mesh is welded with iron wire which is electroplated and hot-dipped first, the surface of PVC or PE, PP powder is vulcanized and coated on its surface, which has the advantages of strong adhesion, good corrosion resistance and bright color.

Features

PVC welded wire mesh has the characteristics of acid and alkali resistance, anti-aging, non-fading, anti-ultraviolet, smooth and bright surface, beautiful appearance, strong and durable, etc.

Product process standard

The PVC welded wire mesh adopts an advanced double-layer protection system, which can obtain very good adhesion, and the coating color is bright and full. PVC welded wire mesh optional colors: dark green, grass blue, black, red, white and yellow and other colors.

Product Specifications:

Mesh size

Wire Dia. Before coat

Wire Dia. After coat

Width

Length
1/4"x1/4" 0.56 - 0.71 0.90 - 1.05 0.6m - 1.8m 10 - 50m
3/8"x3/8" 0.64 - 1.07 1.00 - 1.52
1/2"x1/2" 0.71 - 1.65 1.10 - 2.20
5/8"x5/8" 0.81 - 1.65 1.22 - 2.30
3/4"x3/4" 0.81 - 1.65 1.24 - 2.40
1" × 1/2" 0.81 - 1.65 1.24 - 2.42
1"x1" 0.81 - 2.11 1.28 - 2.90
1-1/2"x1-1/2" 1.07 - 2.11 1.57 - 2.92
1"x2" 1.47 - 2.11 2.00 - 2.95
2"x2" 1.65 - 2.77 2.20 - 3.61
3"x3" 1.90 - 3.50 2.50 - 4.36
4"x4" 2.20 - 4.00 2.85 - 4.88

Plastic coating process: The plastic coated mesh is named because the mesh has undergone a layer of surface treatment on the outside. Take out the mesh to a certain extent, put it into the pvc, pe, pp powder tank, put it out and hang it to form.

1/2inch By 1/2 Inch Pvc Coated Welded Wire Mesh Anti Aging

1/2inch By 1/2 Inch Pvc Coated Welded Wire Mesh Anti Aging1/2inch By 1/2 Inch Pvc Coated Welded Wire Mesh Anti Aging1/2inch By 1/2 Inch Pvc Coated Welded Wire Mesh Anti Aging

PVC welded wire mesh is mainly used for supermarket shelves, indoor and outdoor decoration, poultry breeding, flower and tree fences, outdoor fences for villas and residential areas, transportation, machinery protection industries, etc.

FAQ:

Q: Are you a trading company or manufacturer ?
A: We are factory. We are manufacturer of Wire Mesh .

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
