0.3mm Thickness Expanded Wire Mesh Punching And Rolling Flat Medium
0.3mm Thickness Expanded Wire Mesh Punching And Rolling Flat Medium
0.3mm Thickness Expanded Wire Mesh Punching And Rolling Flat Medium
0.3mm Thickness Expanded Wire Mesh Punching And Rolling Flat Medium
Specifications
Brand Name :
TALIN
Place of Origin :
MADE IN CHINA
MOQ :
500PCS
Price :
FOB USD 10-50/PCS
Packaging Details :
Wooden splints
Material :
Low carbon steel plate, stainless steel plate, aluminum plate
Thickness :
0.3-8mm
Short way of mesh :
2-50mm
Long way of way :
4-100mm
Weave :
Stamping and stretching
Application :
Protecting Mesh, Filters, Screen, Barbecue Mesh
Surface treatment :
Hot Dipped Galvanized, PVC Powder Coated
Color :
Could be made by RAL colors
Length :
4"-10"
Width :
4"-8"
Aperture :
10x25mm 15x25mm 15x30mm 20x40mm 25x40mm 25x50mm 30x50mm 24x60mm 30x60mm 35x60mm 40x60mm 30x80mm 32x80mm 38x80mm 40x80mm 38x100mm 40x100mm 45x100mm 50x100mm 60x100mm 60x120mm 55x150 mm60x150mm
Hole shape :
Diamond Hole, Square Hole, Hexagonal Hole
Description

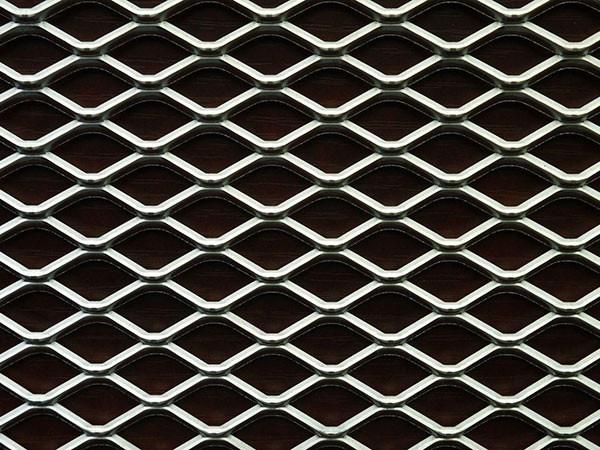

Punching and rolling flat medium expanded metal mesh

The medium-sized expanded metal mesh is made of low carbon steel plate, stainless steel plate, nickel plate, aluminum plate, copper plate, aluminum-magnesium alloy plate and other metal plates by stamping and stretching. Beautiful and durable. The expanded metal mesh that is flattened after punching and drawing has a flat and smooth surface. After rolling, the surface roughness of the expanded metal mesh is usually reduced.

The schematic diagram of the expanded metal mesh is as follows:

0.3mm Thickness Expanded Wire Mesh Punching And Rolling Flat Medium

SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.

StrandExpanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. .
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece.

Main specifications and models of expanded metal mesh:

Specifications
Material Low carbon steel, stainless steel, Aluminum Alloy
Thickness 0.5-8mm
Strand Width 0.3-9mm
SWD 2-56mm
LWD 3-150mm
Panel Width 4ft-8ft
Panel Length 4ft-10ft
Opening Area 45%-85%
Hole Shapes Square, Diamond,Triangle, Hexagonal, Round,Scale
Surface treatment Hot dipped Glavanized, Electric galvanized, PVC coated
Colors Could be made by RAL colors
Packing Iron or wooden pallet, wooden case

Medium-sized expanded metal mesh is widely used in roads, railways, agricultural buildings, water conservancy and other buildings; various machinery, electrical appliances, window protection and aquaculture.

0.3mm Thickness Expanded Wire Mesh Punching And Rolling Flat Medium0.3mm Thickness Expanded Wire Mesh Punching And Rolling Flat Medium
