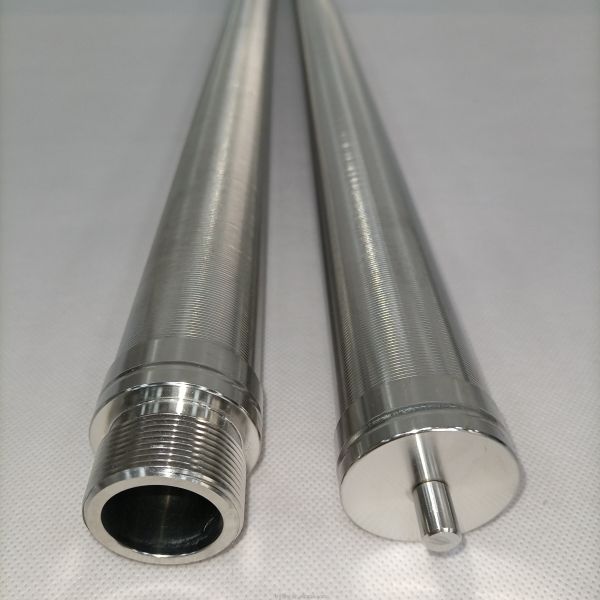

Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh
Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh
Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh
Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh
Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh
Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh
Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh
Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh
Specifications
Brand Name :
Source wire mesh
Model Number :
UJ-Al022
Certification :
ISO:9001/ISO:14001/ISO:18001
Place of Origin :
Anping,China
MOQ :
10 pcs
Price :
$10.0-$35.0/M2
Payment Terms :
D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000m2 in one week
Delivery Time :
7 days
Packaging Details :
Wedge Wire Screen Baskets /Johnson Stainless Steel Water Well Screen: carton inside and wooden case outside
Product name :
Stainless Steel Johnson Wedge Wire Screen 200 Micron Filter Mesh
Material :
304 316 316 L Stainless Steel
Type :
Filter Cylinder
Hole Shape :
v-shape
Thickness :
2-12mm
Length :
Customized
Slot size :
0.2-6mm or produce as client require
wire size :
1.5*2mm,2.2*3.5,3*5,3.2*4 and so on
Inner Diameter :
Customized
Application :
Water filtration
Description

Stainless Steel Johnson Wedge Wire Screen 200 Micron Filter Mesh

Stainless Steel Johnson Wedge Wire Screen 200 Micron Filter Mesh Description

Wedge Wire Screen are welded by profile V-wire and support wires,it is also called Johnson screen. It has large filter area because of big opening,vee wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will be reduced when water flows in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so extend the pipe's life . Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes. Moreover, we have inside perforated metal and wedge wire tube outside filter.

Advantage

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3.A uniform and efficient well development due to the continuous slot opening.

4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Wedge wire Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
support rod Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material stainless steel (304,316 etc.)
Length up to 6 meters
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings
Characteristics The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. It can be used in many kinds of medium filtering.

Product Display

Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter MeshStainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh

Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter MeshStainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh

Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh

The other stype

Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter MeshStainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh

Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh

Company Profile

Anping Source Wire Mesh Co., Ltd, specializes in the customized manufacture of high quality and unique air, water and oil filters and filtration equipment,Woven Wire Mesh products. We also specialize in the design and production of decontamination plants. Oil, gas and water separation units are our specialty.

Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter MeshStainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh

Stainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter MeshStainless Steel 304 Johnson Wedge Wire Screen 200 Micron Filter Mesh

FAQ

Q: How can I know about the producing progress of my products?
A: We can provide the pictures of producing and loading to let you know which step is your product in of the progress.
Q: Can we be in touch smoothly?
A: ALL of the inquiries will be replied less than 6 hours, if you have any questions, please feel free to contact me.
Q: What is your company's advantage?
A: We can provide high quality, reasonable and competitive price of the goods and on time delivery to you.
Q:How do you define your customers?
A:They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.
Q:Do you sell products only?
A:Yes, we sell products, but we not only sell products, we also provide services, we have a comprehensive after-sales service system.
Q: Do you provide sample?
A: The samples are provided free, but the customer need to pay the postage. Once the customer placed order, we will deduct the postage from the payment.
Q: How long would it take to produce a sample?
A: 1-3 days after receiving the postage or get the postage collect account.
Q: What information should I provide, if I want the lowest quotation?
A: The specifications of the products, such as weight, size, color, package and quantity.
Q: What is the MOQ?
A: If our stock meet your inquiry, the MOQ has no limited. If the products is customized,then we can discuss the MOQ.
