200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
Specifications
Brand Name :
Source Wire Mesh
Model Number :
5-200mesh
Certification :
ISO:9001
Place of Origin :
Hebei,China
MOQ :
2 Rolls
Price :
$0.65-$7.5/square meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500000 Square Meter/Square Meters per Year
Delivery Time :
5-10days
Packaging Details :
inner kraft, outside plastic cloth, put into wooden pallet or case
Place of Origin: :
Hebei,China
Material: :
Stainless steel 302/304/316/316L
Type: :
Plain cloth
Application: :
Filters
Sample: :
Free
Wire diameter: :
0.018-2.5mm
Width: :
0.5-4m
Length: :
30-60m
applications: :
particle separation, filtering, safety and security
standards: :
meet clients' internal specifications, ISO, ASTM and DIN
Description

200 micron stainless steel wire mesh

200 micron stainless steel wire mesh product description:

Stainless Steel Wire Mesh is the most basic type of weaves. In plain weave, the warp and weft are aligned

so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one,

then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went

over, and vice versa.

Features:

  • High tension with stable ability
  • Super precision, uniform wire diameter and aperture
  • Low elongation
  • High flexibility
  • Excellent corrosion resistance
  • Non-electrostatic
  • Good heat-melting resistance
  • Suitable for heat-melting ink
  • Good solvent resistance
  • Long service life

Applications:

PCB printing, filteration, Processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Details list of Stainless Steel Woven Mesh:

Wire Material
SU302, 304, 316, 304L, 316L, 310S, 321 etc
Technique
Plain Woven
Weave type
Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave etc
Mesh Count
1mesh ---650 mesh
Wire Diameter
0.025 mm---3 mm or custom
Width
40 mm ---210 mm
Packing
Water-Proof ,Plastic Paper, Wooden Case ,Pallet
Length
10m/roll
Performance
Acid resistance, alkali resistance, temperature resistance, wear resistance and other properties

Mesh (inch)
Wire diameter
(inch)
Aperture (inch)
Mesh
(inch)
Wire diameter
(inch)
Aperture
(inch)
2
0.063
0.437
----------
80
0.006
0.007
5
0.041
0.159
100
0.004
0.007
10
0.025
0.075
120
0.037
0.006
14
0.020
0.051
150
0.003
0.004
18
0.017
0.039
180
0.002
0.003
20
0.016
0.034
200
0.002
0.003
24
0.014
0.028
300
0.005
0.002
30
0.009
0.024
500
0.001
0.001
40
0.010
0.015
635
0.001
0.001
60
0.007
0.010

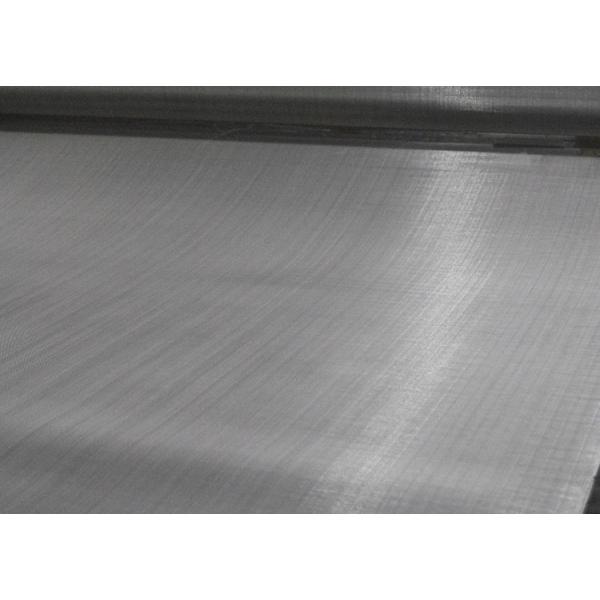

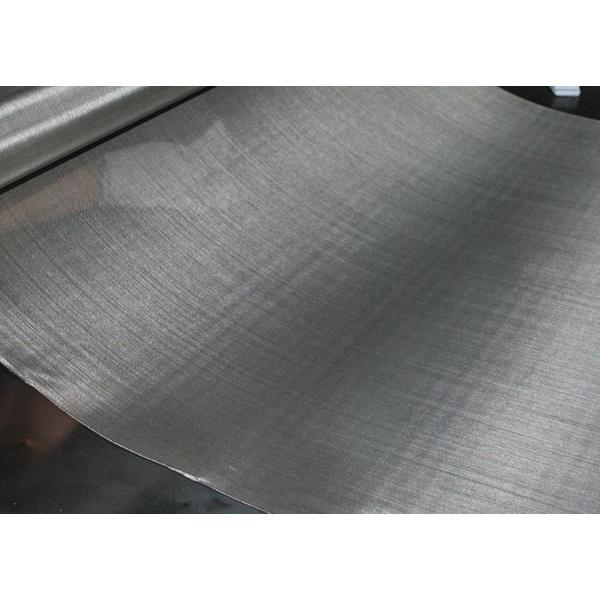

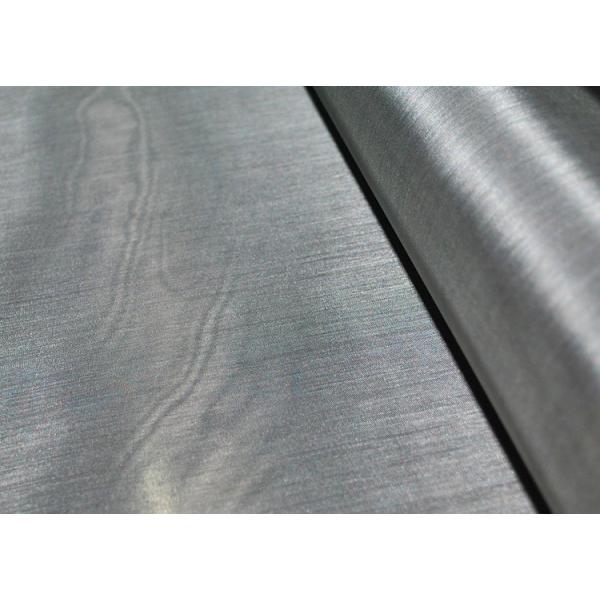

Product Display:

200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant

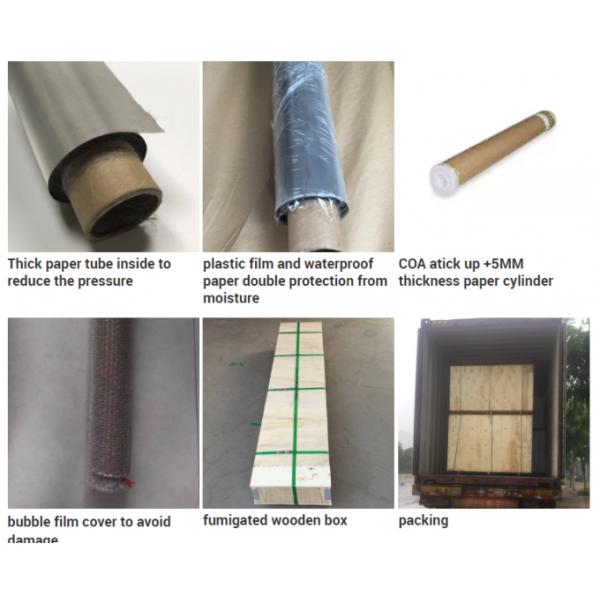

Packing Detail:

200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant

200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
