Twill Dutch Weave Stainless Steel Wire Mesh 325x2300 2m Width
Twill Dutch Weave Stainless Steel Wire Mesh 325x2300 2m Width
Twill Dutch Weave Stainless Steel Wire Mesh 325x2300 2m Width
Twill Dutch Weave Stainless Steel Wire Mesh 325x2300 2m Width
Specifications
Brand Name :
Source Wire Mesh
Model Number :
325x2300mesh
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
1Rolls
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5rolls in 10days
Delivery Time :
10days
Packaging Details :
paper tube inside+ wodden box +plastic bag +waterproof paper Wooden carton
Product name :
325x2300mesh Stainless steel Twill Dutch Weave Mesh
Materail :
Stainless steel 304/316/316L Copper
Weave style :
Twill dutch weave
Wire diameter :
0.0015x0.001mm
Width :
1-2meters
Length :
1-30m, 30mtr 60mtr,customerized
Sample :
free, Avaliable
Usage :
oil, space flight, filter, Printing, chmical industry
Description

325x2300mesh Stainless steel Twill Dutch Weave Mesh

325x2300mesh Stainless steel Twill Dutch Weave Mesh product description:

Weaving Method: This type of woven wire mesh/cloth/fabric is a kind of twilled woven wire product combined with the Hollander Weave or Dutch weave. This pattern enables a strong wire cloth with super fine filtration. Compared with common Twill Weave, the Dutch twill allows a thick structure and a fine filter material. The weft wires and the warp wires intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric.

Uses: Dutch Twill also known as Crossed twilled wire mesh are basic components in the production of filter used in chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.

Forms of Supply: Supplied in full rolls or cut strips, round pieces. Processed in the forms of disc screen and filter elements.

Wire Materials:
Mainly Stainless Steel Wire: Aisi 304, 304L, 316, 316L.

Specification of Dutch Twill Woven Wire Mesh, Made of Stainless Steel: Table 1:

Mesh Count
Warp x Weft		 Wire Dia mm
Warp x Weft		 Wire Dia inch
Warp x Weft		 Micron
Rating
20 x 250 0.250 x 0.215 0.0100 x 0.0085 70-90
40 x 400 0.180 x 0.140 0.0071 x 0.0055 90-110
50 x 500 0.140 x 0.114 0.0055 x 0.0045 70-90
50 x 600 0.140 x 0.090 0.0055 x 0.0035 60-70
80 x 700 0.100 x 0.080 0.0040 x 0.0032 45-55
100 x 800 0.100 x 0.070 0.0040 x 0.0028 36-38
120 x 1000 0.080 x 0.053 0.0031 x 0.0021 27-29
165 x 800 0.070 x 0.053 0.0027 x 0.0021 24-26
165 x 1450 0.070 x 0.040 0.0027 x 0.0016 16-18
270 x 2000 0.350 x 0.028 0.0014 x 0.0011 9-10
325 x 2400 0.035 x 0.025 0.0014 x 0.0010 4-5

Features of Stainless Steel Woven Mesh​:

  • Uniform aperture
  • Standard hole size
  • Good filter performance.
  • Corrosion resistance.
  • Anti-acid and alkali
  • Anti-high temperture.

Packing way of Stainless Steel Woven Mesh:

1.inside use carton pipe for support+wire mesh layer+water proof paper
2.outside use plastic wooden bags,wooden case/carton pipes/wooden pallets.
3.also we can as per your requirements.

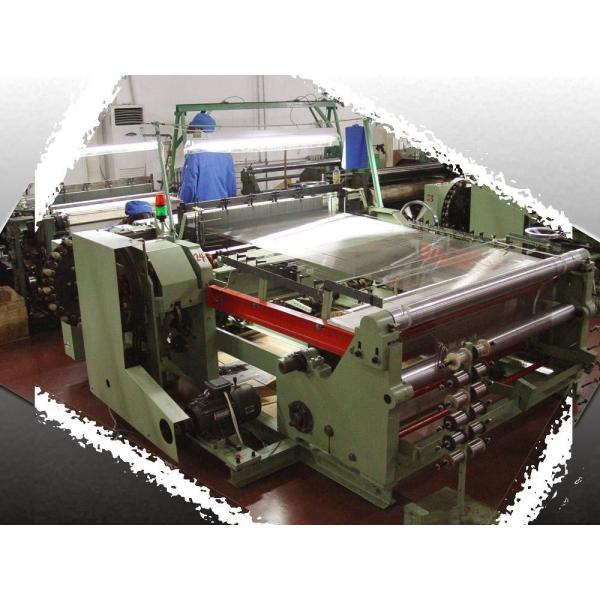

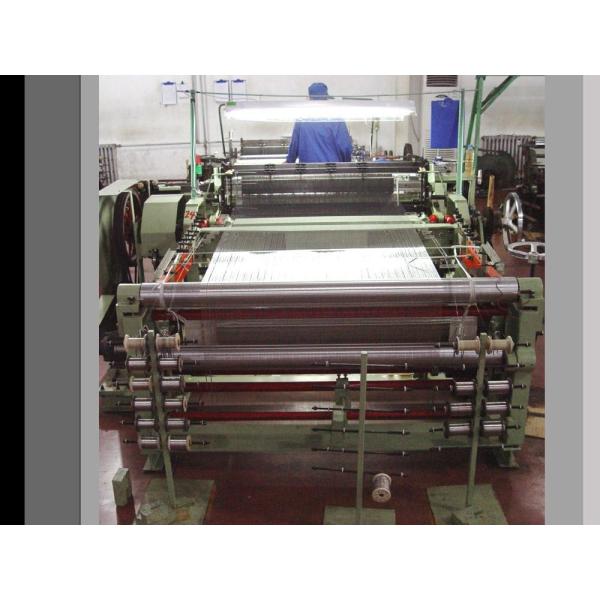

Pictures of Stainless Steel Woven Mesh show to you for reference:

Twill Dutch Weave Stainless Steel Wire Mesh 325x2300 2m Width

Twill Dutch Weave Stainless Steel Wire Mesh 325x2300 2m WidthTwill Dutch Weave Stainless Steel Wire Mesh 325x2300 2m Width
