Fine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC Coating
Fine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC Coating
Fine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC Coating
Fine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC Coating
Fine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC Coating
Fine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC Coating
Specifications
Brand Name :
Source Wire Mesh
Model Number :
UJ-Al004
Certification :
ISO:9001
Place of Origin :
Hebei,China
MOQ :
50 Rolls
Price :
$15.00-$25.00/ROLL
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Rolls In one week
Delivery Time :
7 days
Packaging Details :
First plastic film then in carton or waterproof paper or according to the customer's requirements
Product Name: :
14X14 Fine Aluminum Wire Mesh for Window Screen Mesh
Material: :
Aluminum alloy wire 5154
Type: :
Weave Wire Mesh
Application: :
against mosquito and insect
Wire Dia: :
0.15-0.40mm
Width: :
0.9144-1.8m
Mesh size :
18x16 18x18 16x16 14x14 or as your requirement
Length: :
15-30m
Usage: :
Widely used in window,door etc, Anti mosquito insect and rat.
Surface treatment: :
Pure/Natural,.SS finish,PVC coated,Enamelled,Epoxy resin paint
Description

14X14 Fine Aluminum Wire Mesh for Window Screen Mesh


Aluminum Wire Mesh for Window Screen Mesh Product Description:

Aluminum window screen is woven from aluminum wire or aluminum-magnesium alloy wire with square opening mesh. So, aluminum insect screen is also called magnalium wire screen. Its natural color is silver white. And our aluminum window screen can be coated with epoxy coating to green, silver gray, yellow and blue, or with charcoal coated in black color.
Aluminum window screening has many advantages, such as at room temperature does not fall off, high temperature 120°C does not fade, anti-acid and anti-alkali, corrosion resistance, not react with oxidants, suitable for humid environment, not rust or mildew, light weight, good air and light flow, has good toughness and high strength.
Square opening aluminum insect screen is the most popular material used for window or door screening mesh, and screen enclosures against bugs and insects in hotel, restaurant, communal building and residential houses.

Aluminum alloy window screen/insect mesh/Aluminum wire mesh

Material:Aluminum alloy wire 5154
Technique: Plain weave
Mesh/Inch:14*14,16*14,16*16,18*16,18*18,18*14
Wire diameter: 0.19mm- 0.45mm( BWG26- BWG34)
Width of roll:0.6m- 1.8m
Length of roll: 15m- 50m
Surface treatment:1.Pure/Natural
2.SS finish
3.PVC coated
4. Enamelled
5.Epoxy resin paint
Color:Silver,white,black,grey or as your requirement.
Advantage: Light weight,alkali-resisting,corrosion resisting,rust resisting,durable.
Application:Widely used in window,door etc, Anti mosquito insect and rat.
Mesh
Wire diameter(mm)
Width(m)
Length(m)
12mesh*12mesh
0.28
0.6m-1.8m
15m-50m
14mesh*14mesh
0.25
0.6m-1.8m
15m-50m
14mesh*14mesh
0.23
0.6m-1.8m
15m-50m
14mesh*14mesh
0.22
0.6m-1.8m

15m-50m
14mesh*14mesh
0.21
0.6m-1.8m
15m-50m
16mesh*14mesh
0.25
0.6m-1.8m
15m-50m
16mesh*14mesh
0.23
0.6m-1.8m
15m-50m
16mesh*14mesh
0.22
0.6m-1.8m
15m-50m
16mesh*14mesh
0.21
0.6m-1.8m
15m-50m
16mesh*16mesh
0.25
0.6m-1.8m
15m-50m
16mesh*16mesh
0.23
0.6m-1.8m
15m-50m
16mesh*16mesh
0.22
0.6m-1.8m
15m-50m
16mesh*16mesh
0.21
0.6m-1.8m
15m-50m
18mesh*16mesh
0.25
0.6m-1.8m
15m-50m
18mesh*16mesh
0.23
0.6m-1.8m
15m-50m
18mesh*16mesh
0.22
0.6m-1.8m
15m-50m
18mesh*16mesh
0.21
0.6m-1.8m
15m-50m
18mesh*18mesh
0.25
0.6m-1.8m
15m-50m
18mesh*18mesh
0.23
0.6m-1.8m
15m-50m
18mesh*18mesh
0.22
0.6m-1.8m
15m-50m

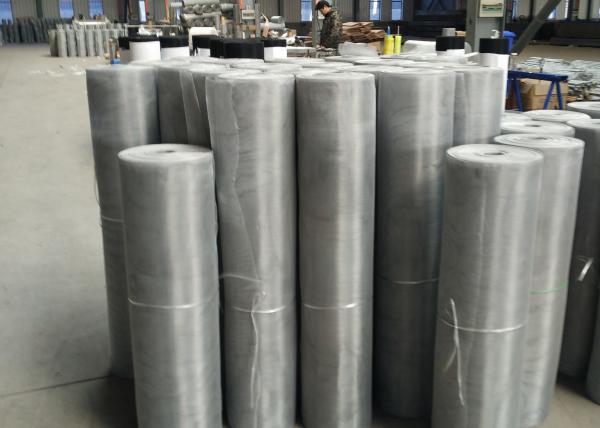

Product Show:

Fine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC CoatingFine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC CoatingFine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC CoatingFine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC Coating

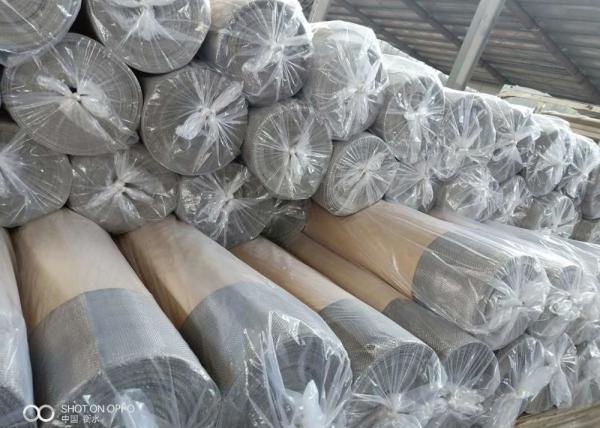

Packing Detals:

Fine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC CoatingFine Aluminium Wire Mesh Roll 14X14 0.15mm Diameter PVC Coating
