Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil
Specifications
Brand Name :
Source Wire Mesh
Model Number :
UJ-RBW006
Certification :
ISO:9001/ISO:14001/ISO:18001
Place of Origin :
Anping,China
MOQ :
50 coils
Price :
$1200.00-$1400.00/TON
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Ton/Tons per month BTO-22 razor barbed wire
Delivery Time :
10 days
Packaging Details :
waterproof paper inner, woven bag outside or with carton for Low price concertina hot dipped galvanized razor barbed wire
Material: :
Iron Wire, stainless steel
Type: :
Razor Barbed Wire
Coil Type: :
Cross Type Concertina Wire
Razor Type: :
Bto-10 Bto-22 CBT-60 CBT-65
Razor thickness: :
0.2-0.8mm
Coil Diameter: :
450-960mm
Stretched Length: :
8-12m
Zinc coating: :
60-270g/m2
Circles: :
33-102
Application: :
Protection
Product Name: :
Coil diameter 700MM BTO-22 Galvanized Razor Barbed Wire
Description

Coil diameter 700MM BTO-22 Galvanized Razor Barbed Wire

Razor Barbed Wire Product Description:

1. Razor barbed wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

2. Material: high carbon steel, galvanized steel sheet and wire, stainless steel sheet and wire. Usually, hot dipped galvanized razor barbed wire is popular in the market.

3. Surface finished: Electro galvanized, Hot dipped galvanized, PVC coated.

Specification List:

Razor Wire Size Specifications
Peference Model
Thickness (mm)
Wire Diameter (mm)
Barb Length
(mm)
Bard Width
(mm)
Bard Spacing
(mm)
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
02±1
15±1
34±1
BTO-28
0.5±0.05
2.5±0.1
28
15
45±1
CBT-30
0.5±0.05
2.5±0.1
30
18
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±1
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±1
Outside Diameter
No. of Loops
Standard Length per Coil
Razor Type
Notes
450mm
33
7M-8M
CBT-60, 65
Single Coil
500mm
56
12M-13M
CBT-60, 65
Single Coil
700mm
56
13M-14M
CBT-60, 65
Single Coil
960mm
56
14M-15M
CBT-60, 65
Single Coil
450mm
56
8M-9M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
500mm
56
9M-10M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
10M-11M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
8M-10M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
700mm
56
10M-12M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
800mm
56
11M-13M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
900mm
56
12M-14M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
960mm
56
13M-15M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
980mm
56
14M-16M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type

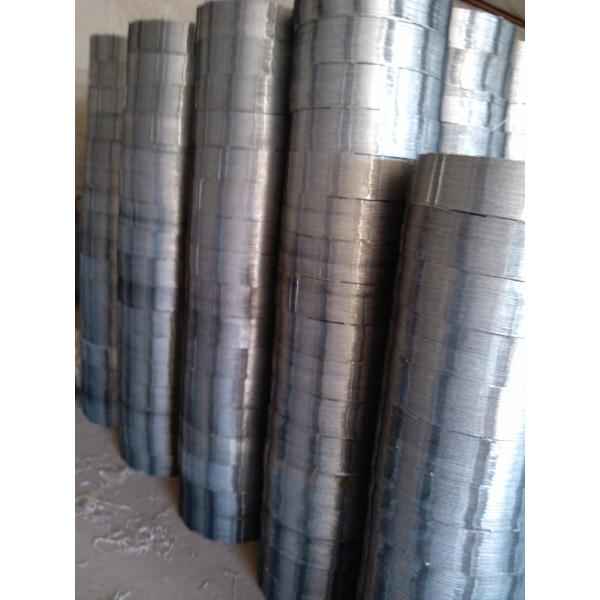

Product Images:

Electro Galvanized Razor Barbed Wire BTO 22 700MM CoilElectro Galvanized Razor Barbed Wire BTO 22 700MM Coil

Concertina Wire Type

Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil

Concertina Wire Use:

Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil

Packing & Delivery:

Electro Galvanized Razor Barbed Wire BTO 22 700MM CoilElectro Galvanized Razor Barbed Wire BTO 22 700MM Coil

Electro Galvanized Razor Barbed Wire BTO 22 700MM CoilElectro Galvanized Razor Barbed Wire BTO 22 700MM Coil

Our company was established in 2002. Mainly producing wire mesh products, our company is a synthetic enterprise which integrates production, research and foreign trade together. Our main products are Stainless Steel Wire Mesh,Decorative Wire Mesh,Welded Wire Mesh,Razor Barbed Wire and sintering mesh ,hexagonal mesh, sintering mesh, and further processed products which are commonly exported to Korea. Our products are well distributed to America, Europe, the Middle East, Southeast Asia and Africa markets. We sincerely invite you to visit our factory and make good benefits for both of us.
