SD6A SD 6 down hole drilling tools for Projects Drilling Blasting Holes
SD6A SD 6 down hole drilling tools for Projects Drilling Blasting Holes
SD6A SD 6 down hole drilling tools for Projects Drilling Blasting Holes
SD6A SD 6 down hole drilling tools for Projects Drilling Blasting Holes
Specifications
Brand Name :
ROSCHEN
Model Number :
ISO64
Certification :
ISO,CE
Place of Origin :
GERMANY CHINA
MOQ :
1pcs
Price :
Negotiate
Supply Ability :
6000pcs
Packaging Details :
Wooden Box
Model :
Donw The Hole Hammer
Name :
Secoroc COP Hammer
Drills :
Down The Hole Drilling, DTH Drilling
Machine :
Hydraulic Crawler Drill Rig
Drillings :
Water Well Drilling
Tools :
Down The Hole Drilling Tools
Equipment :
Surface Ground Core Drill Rig
Description

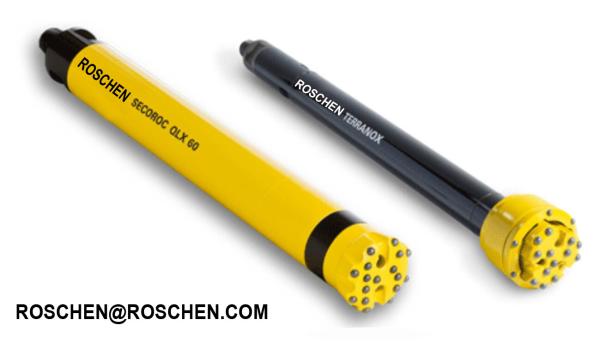

SD6A DTH Hammer

SD 6 Down The Hole Hammer

SD6A DTH Hammer SD 6 Down The Hole Hammer for Projects Drilling Blasting Holes

Basic Info
Model NO SD6
Mining Object Mining
Origin Germany,China
Type Drilling Machine
Trademark Roschen
HS Code 84123100
Mining Object Mining
Origin Germany,China
Type Drilling Machine
Trademark Roschen
HS Code 84123100
Mining Object Mining, Ore Machinery, Stone Quarry
Usage Use Together with DTH Button Bits
Aplication DTH Drilling. Coal Mining, Quarry
Drill Diameter 65-305mm
Transport Package Ply wood Box


Product Description:

It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.


Advantages:

1. Out of the trouble of foot valve fracture and expansion and contraction.

2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.

3. Simple structure, reliable parts, long life, easy and cheap maintenance.

4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.

Length (exclude bit) Weight (exclude bit) External Diameter Bit Shank Hole Range Connection Thread
1182 mm 90.00 kg Φ146 mm SD6 Φ155mm ~ Φ Φ203mm API 3 1/2'' Reg
Working Pressure Impact rate at 0.5 MPa Recommended Rotary Speed Air Consumption
1.0 MPa 1.8 MPa 2.4 MPa
1.0 ~ 2.5 MPa 25 Hz 20 ~ 30 rpm 9 m³/min 18 m³/min 26 m³/min




DTH hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ￠70-￠90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ￠90-￠110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ￠110-￠135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ￠135-￠155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ￠155-￠190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ￠195-￠254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
10" SD10 ROS 100 API 6 5/8" Reg ￠254-￠311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ￠305-￠445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Metzke, Remet thread is available!
