Diamond Circle Wrench Double Diamond Barrels Outer / Inner Tube For Core Drilling
Diamond Circle Wrench Double Diamond Barrels Outer / Inner Tube For Core Drilling
Diamond Circle Wrench Double Diamond Barrels Outer / Inner Tube For Core Drilling
Diamond Circle Wrench Double Diamond Barrels Outer / Inner Tube For Core Drilling
Diamond Circle Wrench Double Diamond Barrels Outer / Inner Tube For Core Drilling
Diamond Circle Wrench Double Diamond Barrels Outer / Inner Tube For Core Drilling
Specifications
Brand Name :
ROSCHEN
Model Number :
NQ, HQ, PQ
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1-5 PCS
Price :
Negotiate
Supply Ability :
1000000 pcs
Packaging Details :
Carton Box
Name :
diamond Circle Wrench
Model :
diamond adjustable wrench
Type :
Diamond wrench co
Series :
circle diamond ring
Item :
Synthetic Diamond Circle Wrench
Size :
Bq Nq Hq Pq Ltk48 Ltk60 Circle Wrench
Features :
Wearable Diamond Circle Wrench
Supplier :
Diamond Circle Wrench manufacturer
Description

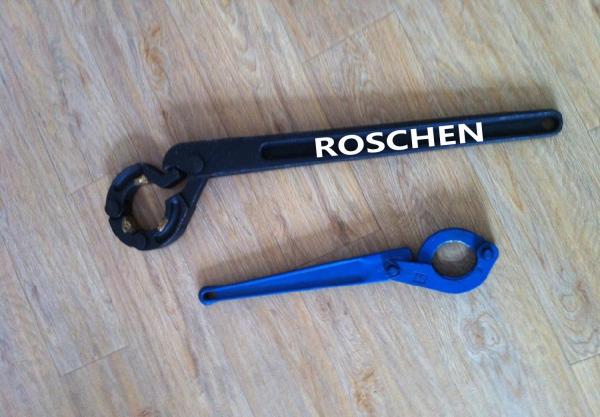

Diamond Circle Wrench For Diamond Core Drilling Core Barrel Outer tube, inner tube

Drill pipe Circle wrench main application fields include geological exploration, geological exploration, hydrogeology, metallurgy, water wells, coal industry.

Circle wrench are tools dedicated to manual unscrewing of drilling tools in core drilling. Unscrew the shank drill rod free forceps of the drill pipe, and unscrew the sleeve free clamp of the casing and core tube.

Roschen provide three kinds of circle wrenches for customers all over the world: diamond, inner tube and casing tube of types.

Our diamond circle wrench is packed by export-standard plywood box.

1. Outer tube
The outer circle wrench is mainly used to manually screw and unscrew drill rods, outer and inner tubes and casing tubes.

It is quite appropriate to be used in mine drilling field, and it is capable of improving drilling efficiency. It causes no harm to pipes. Its holding force is big and no skidding (slipping) will happen when using it.

Its main components include steel chain and slips.

2. Inner Tube Circle Wrench
The inner tube circle wrench is specially used to manually screw and unscrew inner tubes of double-pipe assembly in the field of mine drilling. It is safe to use, and capable of saving labor, and causing no harm to pipes. It is light in weight and large in gripping force. No slipping will happen.


3. Casing Tube Circle Wrench
The casing tube circle wrench is a kind of tool to screw and unscrew casing tubes in the double-pipe assembly. It's mainly composed of steel chain and alloy steel slips.

It can help to enhance the drilling efficiency and it is easy to utilize.


Circle Wrench of Technical Parameters:
Product name Specification
Alloy free clamp (drill rod wrench) Φ54
Φ55.5 (BQ) Φ71/Φ73 (NQ)
Φ89 (HQ)
Φ41
Φ43
Diamond circle wrench (inner tube circle wrench) Φ56
Φ73
Φ89
Φ57/44
Φ56/46
Φ66/76
Φ73/89
Φ89/108
Casing tube circle wrench Φ108/127 Φ127/146
Φ146/168
Φ168/194
Φ194/219
Φ219/273
Φ273/325
Φ42
Φ43
Drilling pipe wrench Φ50
Φ60
