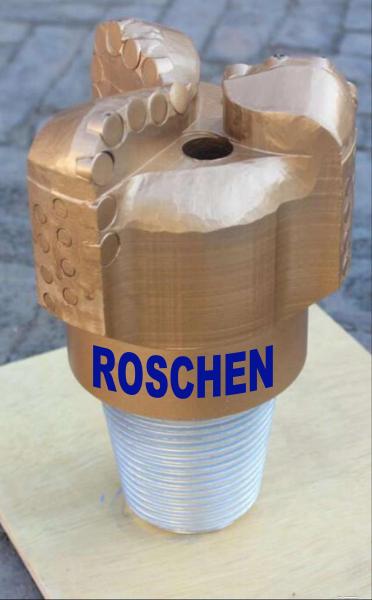

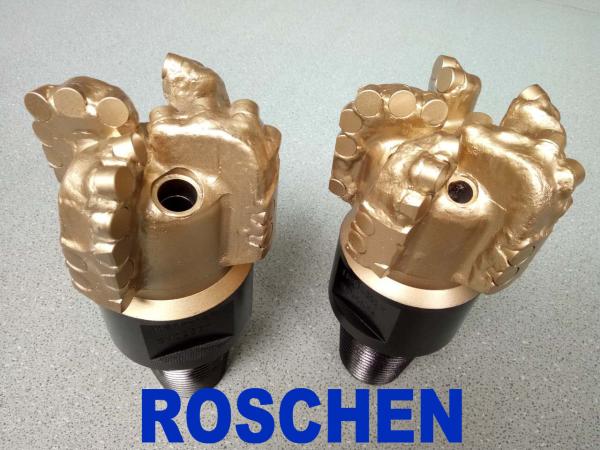

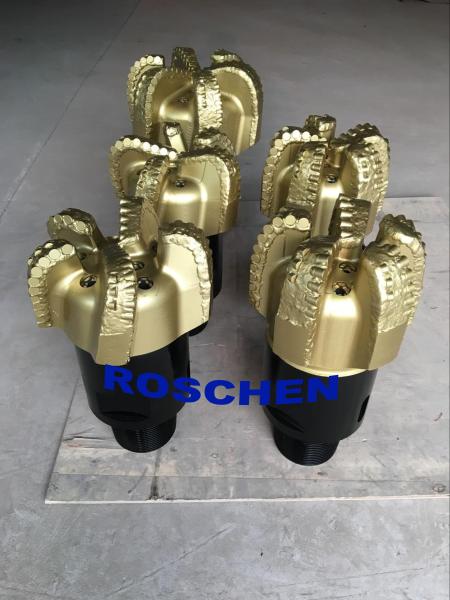

Talon Force High Velocity PDC Drill Bit 8 1/2 Inch High Performance Fit Oil Drilling
Talon Force High Velocity PDC Drill Bit 8 1/2 Inch High Performance Fit Oil Drilling
Talon Force High Velocity PDC Drill Bit 8 1/2 Inch High Performance Fit Oil Drilling
Talon Force High Velocity PDC Drill Bit 8 1/2 Inch High Performance Fit Oil Drilling
Talon Force High Velocity PDC Drill Bit 8 1/2 Inch High Performance Fit Oil Drilling
Talon Force High Velocity PDC Drill Bit 8 1/2 Inch High Performance Fit Oil Drilling
Specifications
Brand Name :
ROSCHEN
Model Number :
8 1/2
Certification :
ISO, API
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiate
Supply Ability :
100000 pcs
Packaging Details :
Carton box
name :
PDC Drill Bit
PDC Bit factory :
diamond pdc bit factory
PDC bit factory price :
diamond pdc bit manufacturer
standard :
API rock bit
Model :
three cone bit
Type :
Roller tricone bit
PDC Bit :
PDC (Polycrystalline Diamond Compact) drill bit
Drilling bit supplier :
drilling bits manufacturer
Description

Talon Force High Velocity PDC Drill Bits 8 1/2 inch High Performance for Oil Drilling

What are the precautions for the use of the tricone drill bit?

Tricone bit use precautions

Summary:

1. Before the drill bit goes down the well, first check the drill bit size, whether the model meets the requirements for use, whether the nozzle is installed and the size is correct.
2. Check the bottom of the well and it must be clean and free of debris.
3. The bottom of the well is not clean, there are falling objects, the wellbore is shrinking or the downhole is complicated.
4. After the drill bit is buckled, the well can be lowered. When the resistance is encountered, the pump should be turned on to circulate the mud, and the bottom of the well should be slowed down to prevent drilling.
5. After the drill bit is in contact with the bottom of the well, it should be lightly pressed for 30 minutes (drilling pressure 5~15KN, speed 60r/min), run the drill bit, hit the new well bottom, and then gradually increase to the normal drilling pressure.
6. Balance must be applied during the drilling process to deliver the drill evenly.
7. The bit speed should be strictly controlled within the recommended range, the pressurization must be uniform during drilling, and intermittent pressurization is not allowed.
8. Operators must concentrate on avoiding drilling and when they find abnormal phenomena such as bouncing in the underground, they should analyze and take measures in time.
9. For various types of sealed bearing drills, it is a laborious situation to turn the cones by hand. This is normal. Do not infuse bubbles in oil or tap with heavy objects.
10. All types of drills are generally not suitable for squinting. It is strictly forbidden to use high speed to squint.
11. When using high drilling pressure, use low speed, and avoid using the maximum value of drilling pressure and speed.
12. Use recommended drilling techniques.

Tricone Rolle Bits Product specifications:
Model Milled tooth bits tricone for water well,TCI bits tricone for water well
IADC Code 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
Bearing Type H--Friction bearing; G--Roller bearing; F--Floating Bearing
Sealing Type HJ(metal sealed journal bearing)
HA (rubber sealed journal bearing) air cooled bearing type
Size From 2 7/8" to 26" larger sizes for hole opener bit ,reamer bit
Material alloy steel, tungsten carbide insert
Extra Feature 1) Y-Conical teeth 2) X-chisel teeth 3) K- wide teeth 4) G- Gague protection
Applicable Formation Very soft, soft, medium soft, hard, medium hard, very hard formation
Application Petroleum & gas, water well, mining and tectonic industries, oil field, construction, geothermal, directional boring, and underground foundation work.


NO. TRICONE ROCK BIT SIZE API THREAD REG.PIN
in mm
1 3 3/4 95.3 2 3/8
2 3 7/8 98.4 2 3/8
3 4 1/8 104.8 2 3/8
4 4 1/4 108 2 3/8
5 4 1/2 114.3 2 3/8
6 4 5/8 117.5 2 7/8
7 4 3/4 120.7 2 7/8
8 4 7/8 123.8 2 7/8
9 5 1/2 139.7 3 1/2
10 5 5/8 142.9 3 1/2
11 5 2/3 143.9 3 1/2
12 4 3/4 146.1 3 1/2
13 5 7/8 149.2 3 1/2
14 6 152.4 3 1/2
15 6 1/8 155.6 3 1/2
16 6 1/4 158.8 3 1/2
17 6 1/2 165.1 3 1/2
18 6 5/8 168.3 3 1/2
19 6 3/4 171.5 3 1/2
20 7 1/2 190.5 4 1/2
21 7 5/8 193.7 4 1/2
22 7 7/8 200 4 1/2
23 8 3/8 212.7 4 1/2
24 8 1/2 215.9 4 1/2
25 8 5/8 219.1 4 1/2
26 8 3/4 222.3 4 1/2
27 9 1/2 241.3 6 5/8
28 9 5/8 244.5 6 5/8
29 9 7/8 250.8 6 5/8
30 10 1/2 266.7 6 5/8
31 10 5/8 269.9 6 5/8
32 11 279.4 6 5/8
33 11 5/8 295.3 6 5/8
34 12 304.8 6 5/8
35 12 1/4 311.2 6 5/8
36 12 5/16 312.7 6 5/8
37 13 3/8 314.3 6 5/8
38 12 7/16 315.9 6 5/8
39 12 5/8 320.7 6 5/8
40 13 1/8 333.4 6 5/8
41 13 1/2 342.9 6 5/8
42 13 5/8 346.1 6 5/8
43 13 3/4 349.3 6 5/8
44 14 1/2 368.3 7 5/8
45 14 3/4 374.7 7 5/8
46 15 1/2 393.7 7 5/8
47 16 406.4 7 5/8
48 17 1/2 444.5 7 5/8
49 18 7/8 479.4 7 5/8
50 20 508 7 5/8
51 22 558.8 7 5/8
52 24 609.6 7 5/8
53 26 660.4 7 5/8
54 28 711.2 7 5/8
55 30 762 7 5/8
