Specifications
Brand Name :
ROSCHEN
Model Number :
BQ, NQ, HQ, PQ, SQ, BW, NW, HWT, PWT, SW, UW, ZW
Certification :
ISO, API
Place of Origin :
Germany
MOQ :
1 sets
Price :
N/A
Supply Ability :
100 sets
Packaging Details :
wooden, carton box
Description

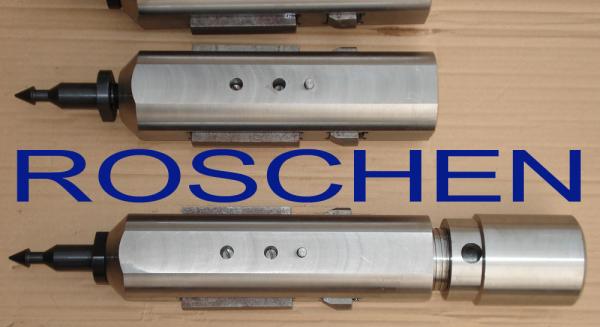

Landfill Drilling Core Barrel Advancer Casing with Hi - tensile Drive Pin


Details of Wireline Casing advancer:

Roschen Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation.

This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.

The integral operation makes the Roschen Casing Advancer eminently suitable for drilling through overburden or sands and gravels.

It is also particularly suitable for Landfill Drilling applications.

Outstanding Features:

1. Cases borehole as borehole advances.

2. Helps reduce drilling cost by saving rod and casing handling.

3. Can be used with Rock Bot or TC. Drag Bit.

4. Long Casing Shoe life as it is always reaming and never drilling alone.

5. Special flushing ports in the body ensure that the casing bit is adequately flushed.

6. Uses conventional Right Hand threaded Drill Rods and Casing.

7. Suitable for Air, Water or Mud Flush.

8. Manufactured from high quality materials.

Key:

1. Standard Casing

2. Rod Entry Guide Sub

3. Body

4. Hi-tensile Drive Pin

5. Seal

6. Advancer Casing Shoe

7. Roller Bit, Tricone bits



Casing - Advancer - Technical Specifications

Conventional Casing to ISO Standard 3551

Designation

Casing O.D.

Casing I.D.

Advancer Bit O.D.

SW.

6.625”

6.000”

7.800”

UW.

7.625”

7.000”

8.800”

ZW.

8.625”

8.000”

9.800”

Waterwell Casing to BS 879 ( Flush Butt Joints )

Designation

Casing O.D.

Casing I.D.

Advancer Bit O.D.

6”NB.

6.625”

6.000”

7.800”

8”NB.

8.625”

8.000”

8.800”

10”NB.

10.750”

10.000”

11.93”

Casing Advancer Bit and Drill Rod Threads could be any size upon request, such as 2-3/8” API. REG.

Other Rod threads maybe incorporated at customer special request.

Casing Advancer to suit Metric Casing (Larger sizes) are also available by request.

if you require to order any of the items above or a bespoke design then please email or contact us.
