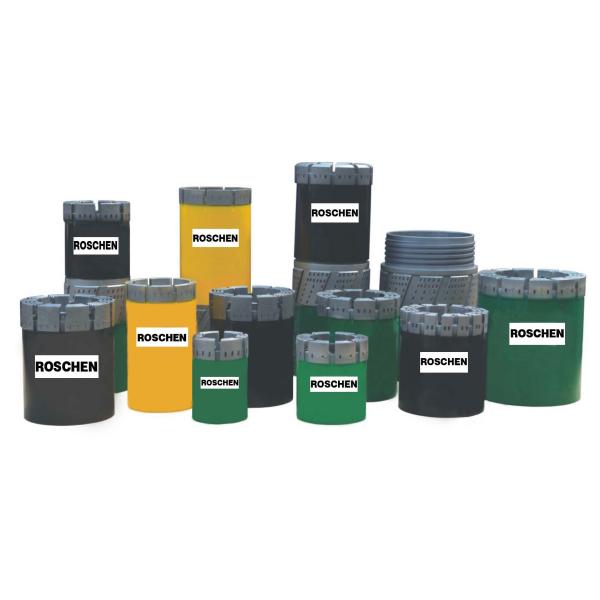

Metric Geological Core Drill Bits / Diamond Impregnated Bit With High Speed

Metric Geological Core Drill Bits T2 - 76 , T2 - 86 / Diamond Impregnated Bit With High Speed drilling for granite

Metric Geological Core Drill Bits T2 - 76 , T2 - 86 / Diamond Impregnated Bit With High Speed drilling for hard granite

Metric Geological Core Drill Bits / Diamond Impregnated Bit With High Speed

NQ Diamond Bits

Impregnated Diamond Core Bits are manufactured with very small, high quality sythetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.

Notice :

To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.

Size:
ROSCHEN bits are available in all standard drilling sizes. Also, non-standard sized bits can be produced according to requirements from clients.

Crown Height:
ROSCHEN offers crown impreg depths of 9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Matrix:
ROSCHEN impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.

Threads:

standard Q threads as well as thread types required by clients are available.

Specifications

1. High penetration rate

2. good after-sale

3. Long bit life on working

Advantages:

1. Fast cutting and drilling speed

2. Long life, stable performance

3. Low power consumption

ROSCHEN are leading manufacturer of Impregnated/ surface-set diamond core bit, diamond casing bit, casing shoe bit, reaming shell etc.

Also Specialized in producing of varies diamond drilling tools, such as impregnated/ surface-set diamond core bit, diamond casing bit, diamond casing shoe bit, casing shoe bit, reaming shell, diamond reaming shell, TC core bit, TC casing shoe bit, TC shoe bit, Thin Wall Bit, core lifter, core lifter case, Core Barrels, etc

Size Available:

"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116
T series: T36, T46, T56, T66, T76, T86
Z series: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT
WM series: EWM, AWM, BWM, NWM, HWM
WG series: EWG, AWG, BWG, NWG, HWG
Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.

ROSCHEN Group Limited is a Germany specialist of Geological Exploration tools Manufactory and supplier which is ISO 9001-2000 certified.

Also ROSCHEN is a professional and leading manufacturer of geological drilling tools, horizontal directional drilling tools in global market. Our Main products are Core Drill Rigs, Core Bits, Reaming Shells, Drilling Rods, Cemented Carbide Inserts, and Various Core Drill Tools.

Our Technician and manager groups are all with more than fifty years’ experience on Developing, researching and producing exploration products. Owing to our products' excellent performance and very competitive pricing, we successfully minimized our every customer's drilling cost per meter.
