Specifications
Brand Name :
ROSCHEN
Model Number :
4", 4.5", 5"
Certification :
ISO
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiate
Supply Ability :
1000000 pcs
Packaging Details :
Bunles
Name :
RC Drill Rod
Use :
RC Drilling for Ore Mining
Type :
Reverse circulation Drill Pipe
Material :
Carbon Steel,Carbide,High Manganese Steel
Application :
Mining, Golden drilling
Product name :
drill rod
size :
4 Inch REVERSE CIRCULATION DRILL ROD
Series :
Metzke Matrix REVERSE CIRCULATION DRILL ROD
Description

Metzke Matrix 4 Inch REVERSE CIRCULATION DRILL ROD For RC531 RC Hammer Drilling


Roschen Reverse Circulation (RC) Drill Rods

Our reverse circulation drill rods and drill pipe consist of European hardened 4140 alloy steel tool joints with heavy-duty seamless drill pipe and high tensile API 5CT rated wear-resistant Inner Tubes.

Drawing on our years of experience in the design and manufacture of tough and wear-resistant RC drill rods, every aspect of material and production management is optimized.

The result is premium quality reverse circulation drill pipes that keep your RC drill rig efficiently producing day after day.

Threading Drill Rod Application

(1) for Oil well drilling

(2) for water well drilling

(3) DTH drill rod

(4) geological drill pipe

(5) non-dig drill pipe

Threading Drill Rod range:

• Dig Out Subs

• Spiral Subs

• Saver Subs

• Bit Subs

• Adapter Subs

• Screen Subs

• Bleed Off Subs

• Vacuum Subs

KEY FEATURES AND BENEFITS

• Precision Australian manufacturing

• Premium European 4140 alloy steel

• State of the art machining delivers precision cut threads every time

• Comprehensive part numbering system makes reordering simple

• Large stock range for immediate shipping

• Cubex and API Subs available

• Talk to the Harlsan team today about your requirements

Saver Subs and Other Adaptors

Precision Cut threads

Metzke, Remet, Westrod and RRE RC threads available.

Full Range of RC Subs

Saver, Dig-out, Bit, Adapter, Screen, Bleed-off, Vacuum Subs and more.

Australian Made Toughness

Manufactured with premium 4140 alloy steel that ensures long wear life.

Customised Options

Hard-facing, spanner flats & wrench slots as required.

Other Subs & Threads

API, Cubex & other subs available, customised to your specifications.

Large Stock Range

Harlsan have a large range of subs in stock for immediate dispatch.

Sizes 3", 3 ½", 4", 4 ½", 75mm and 78mm
Thread Types Remet, Metzke, RRE, Westrod, LW, TS and other threads

REVERSE CIRCULATION DRILL ROD SPECIFICATIONS
Thread Type Remet Remet Remet Metzke Metzke Matrix Matrix
Rod O.D. 3 1/2" 4" 4 1/2" 4" 4 1/2" 4" 4 1/2"
Outer Tube O.D. 88.9mm 101.7mm 114.3mm 101.7mm 114.3mm 101.7mm 114.3mm
Outer Tube I.D. 81.8mm 94.6mm 107.2mm 94.6mm 107.2mm 94.6mm 107.2mm
Outer Tube W.T. 5.3mm 7.1mm 7.1mm 7.1mm 7.1mm 7.1mm 7.1mm
Inner Tube O.D. 38.1mm 50.8mm 63.5mm 50.8mm 63.5mm 50.8mm 63.5mm
Inner Tube I.D. 32.6mm 45.3mm 58mm 45.3mm 58mm 45.3mm 58mm
Inner Tube W.T. 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm
Spanner Flat 90mm 90mm 90mm 90mm 90mm 90mm 90mm
Weight 3.0m 75kg. 75kg. 95kg. 75kg. 95kg. 75kg. 95kg.
Weight 6.0m 120kg. 150kg. 168kg. 150kg. 168kg. 150kg. 168kg.

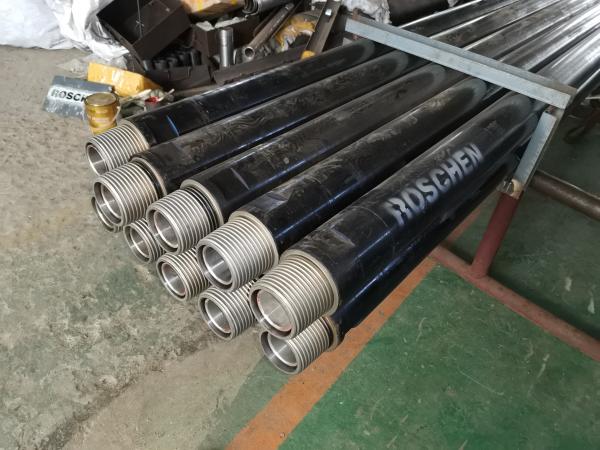

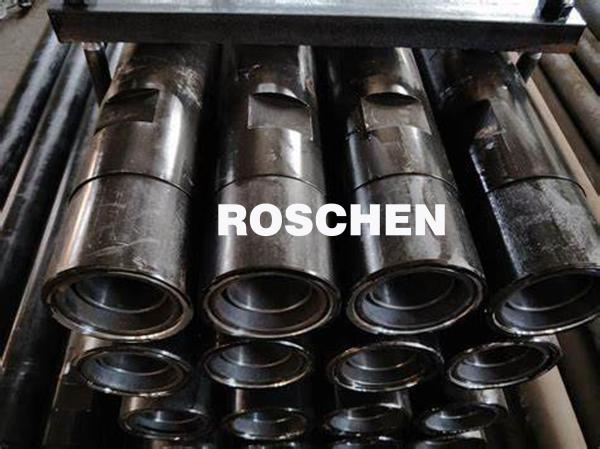

RC DRILL PIPE​ Pictures
