Double Key Heavy Duty Hollow Stem Auger 3 1/4″ 83mm
Double Key Heavy Duty Hollow Stem Auger 3 1/4″ 83mm
Double Key Heavy Duty Hollow Stem Auger 3 1/4″ 83mm
Double Key Heavy Duty Hollow Stem Auger 3 1/4″ 83mm
Specifications
Brand Name :
ROSCHEN
Model Number :
3 1/4″ (83mm)
Certification :
ISO
Place of Origin :
CHINA
MOQ :
5pcs
Price :
Negotiate
Supply Ability :
10000pcs/M
Packaging Details :
Bundle, Wooden Box
Description

Double Key Heavy Duty Hollow Stem Auger 3 1/4″ (83mm)

All 3 1/4inch (83mm) Double Key Hollow Stem Augers feature a continuous hard-faced flight design, 3/8inch (9.5mm) thick on the outer edge with a 6inch pitch.

The tool joints are made from 4142 alloy steel and feature double-bolt connections.

Double Key Heavy Duty Hollow Stem Auger 3 1/4″ 83mm

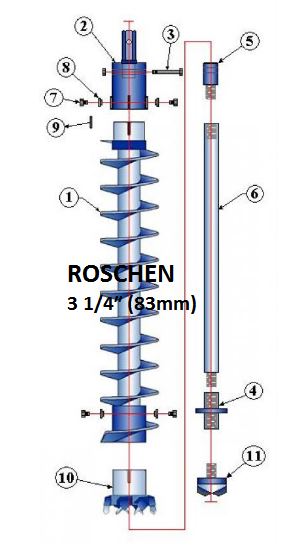

　 Description Lbs. Kg.
Auger Section
1 3 1/4″ (83mm) DK HD Hollow Stem Auger 3 1/4″ (83mm) I.D. x 6 5/8″ (168mm) O.D. x 5′ (1524mm) 81 36.7
2 3 1/4″ (83mm) DK HD Drive Cap with 1 5/8″ (41mm) Hex Pin 22 10
2 3 1/4″ (83mm) DK HD Drive Cap with 2″ (51mm) Hex Pin 23 10.4
3 #3 Nut & Bolt for Rod-to-Cap Adapter 0.9 0.4
4 3 1/8″ (79mm) Pilot Bit Connector (AW Box – 4 Thd N-Rod Box) 11 5
4 3 1/8″ (79mm) Pilot Bit Connector (AWJ Box – 4 Thd N-Rod Box) 12 5.4
4 3 1/8″ (79mm) Pilot Bit Connector (NW Box – 4 Thd N-Rod Box) 8 3.6
4 3 1/8″ (79mm) Pilot Bit Connector (NWJ Box – 4 Thd N-Rod Box) 11 5
5 Rod-to-Cap Adapter – AW Pin 3 1.4
5 Rod-to-Cap Adapter – AWJ Pin 3 1.4
5 Rod-to-Cap Adapter – NW Pin 7 3.2
5 Rod-to-Cap Adapter – NWJ Pin 6 2.7
6 AW Drill Rod – 5′ (1524mm) 21 9.5
6 AWJ Drill Rod – 5′ (1524mm) 23 10.4
6 NW Drill Rod – 5′ (1524mm) 31 14.1
6 NWJ Drill Rod – 5′ (1524mm) 35 15.9
Auger Repair Parts
1A 3 1/4″ (83mm) DK HD Pin Tool Joint 7 3.2
1B 3 1/4″ (83mm) DK HD Box Tool Joint 6 2.7
7 ALB3 Auger Lock Bolt 0.3 0.1
8 ABN3 Auger Bushing Nut 0.3 0.1
9 ADK2 Auger Drive Key 0.3 0.1
Auger Cutterheads and Pilot Bits
10 3 1/4″ (83mm) DK Blade Cutterhead – 7 1/2″ (190mm) O.D. 11 5
10 3 1/4″ (83mm) DK Spade Cutterhead – 7 1/2″ (190mm) O.D. 12 5.5
10 3 1/4″ (83mm) DK Blade/Bullet Cutterhead – 7 1/2″ (190mm) O.D. 14 6.4
10 3 1/4″ (83mm) DK Spade/Bullet Cutterhead – 7 1/2″ (190mm) O.D. 9 4.1
10 3 1/4″ (83mm) DK Bullet Cutterhead – 7 1/2″ (190mm) O.D. 10 4.5
10 3 1/4″ (83mm) DK 5-T Cutterhead – 7 1/2″ (190mm) O.D. 10 4.5
11 3 1/8″ (79mm) Apex Pilot Bit, 4-Thrd N-Rod Pin 2.5 1.3
11 3 1/8″ (79mm) Bullet Pilot Bit, 4-Thrd N-Rod Pin 5 2.3
