Pup Joint 5 1/2inch Connection 5 1/2 FH Length Of 5 Feet Each Piece
Pup Joint 5 1/2inch Connection 5 1/2 FH Length Of 5 Feet Each Piece
Pup Joint 5 1/2inch Connection 5 1/2 FH Length Of 5 Feet Each Piece
Pup Joint 5 1/2inch Connection 5 1/2 FH Length Of 5 Feet Each Piece
Specifications
Brand Name :
ROSCHEN
Model Number :
Pup joint 5 1/2inch
Certification :
API
Place of Origin :
CHINA
MOQ :
10sets
Price :
Negotiate
Supply Ability :
10000sets/m
Packaging Details :
Wooden Box , Bundle
Description

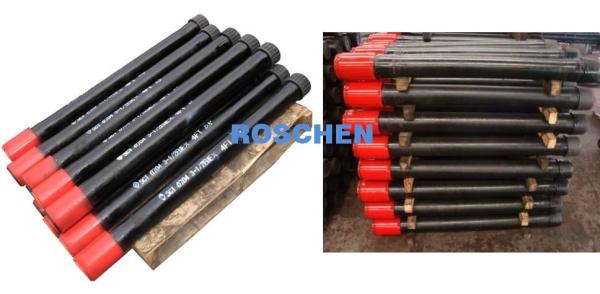

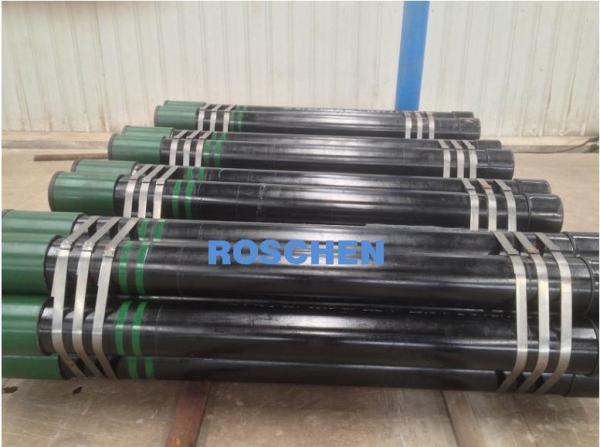

Pup joint 5 1/2”, Connection 5 1/2 FH, length of 5 feet each piece

A pup joint is Casing, Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.

connections to meet the most demanding drilling requirements.

Tubing Pup Joint Specifications
Outside Diameter 1.05 ~ 4-1/2 in (26.67 ~ 114.3 mm) nominal size OD
Weight Standard or Heavy Wall
Length 2, 3, 4, 5, 6, 8, 10, 12 ft (with other lengths available upon request)
Grade H40, J55, L80, N80/Q, C90, T95, P110
Connection EUE, NUE
Standard API 5CT, API 5B

Casing Pup Joint Specifications
Outside Diameter 4-1/2 ~ 20 in (114.3 ~ 508 mm) nominal size OD
Weight Standard or Heavy Wall
Length 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 ft (with other lengths available upon request)
Grade H40, J55, K55, L80, N80/Q, C90, T95, P110, Q125
Connection BTC, STC, LTC
Standard API 5CT, API 5B

They are available in standard lengths of 5’, 10’, 15’ and 20’ with other configurations upon request.

Integral Pup Joints dedicated to Sour Service applications are available. PJ -110 PUP S are Sour Service Pup Joint using ASCOWELL C material providing improved resistance to Sulfide Stress Cracking with high yield strength.

We can offers a wide range drill string products and accessories with standard API or proprietary high performance.
