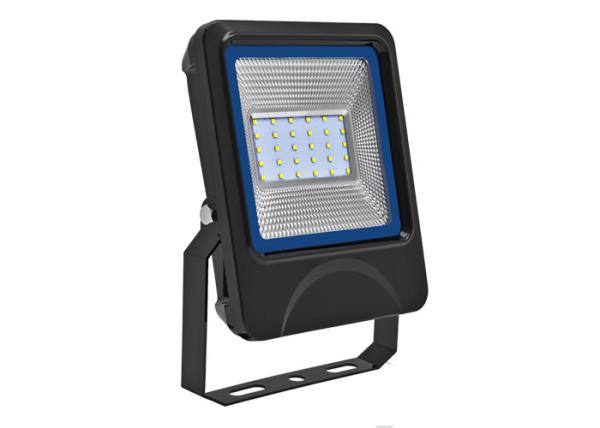

3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor
3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor
3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor
3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor
3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor
3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor
3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor
3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor
Specifications
Brand Name :
DSF
Model Number :
F-30
Certification :
ISO14001: 2015 , ISO9001: 2015
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T; Paypal
Supply Ability :
3000pcs/month
Packaging Details :
Outer Carton:620*330*250mm (15pcs/CTN)
Products No. :
F-30
Power :
30W
Luminous Flux :
3600Lm
Light Effect :
120Lm/W
LED Quantity :
40pcs
Voltage :
AC100~277V
Beam Angel :
120°
Working Temperature :
-20℃~+50℃
Dimension :
620*330*250mm
Weight :
18.5kg
CRI :
Ra>80
IP Rating :
IP66
Description

3600Lm 30W AC100~277V IP65 Black Outdoor Flood Light Fixtures Waterproof

Technical Parameters

NO. Item Unit Value
1 Power W 30
2 Luminoux Flux Lm 3600
3 Lighting effect Lm/W 120
4 Voltage V AC100-277
5 CRI - Ra>80
6 LED Quantity pcs 40
7 Working Temperature ℃ -20~+50
8 Beam Angle ° 120°
9 Weight kg 17.5
10 Size mm 175*135*44
11 Waterproof Grade - IP66

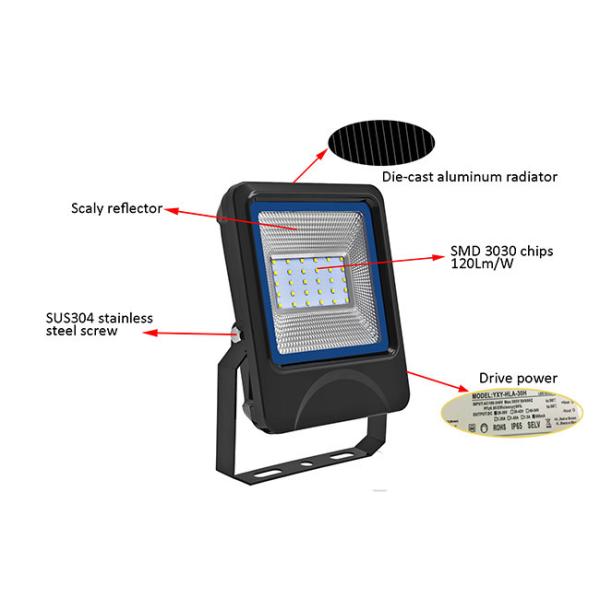

Product Shows

1. Scaly Reflector: Special scaly type reflector, improving the reflectivty rate of light.

2. Die-cast Aluminum Radiator: Fast heat dissipation, extend the life of the floodlight.

3. SUS304 Stainless Steel Screw: High quality screws, waterproof, no rust, can fix the floodlight for very long time.

4. SMD3030 Chips 120Lm/W: Energy saving , high light efficiency.

5. High Grade Driver:Durable and powerful.

3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor

Light Distribution Curve

3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor

Installation

1.Seat Mounting

2. Wall Mounting

3.Ceiling Mounting

3600Lm 30W Ip65 Smd Flood Light / Commercial Led Floodlight Outdoor

Package

Carton Size
N.W
G.W
QTY
620*330*250mm
18.5kg
20kg
15pcs/CTN
