Black Aluminum alloy 5W 220Lm CREE Rechargeable Tactical Led Flashlight
No. | Item | Unit | Value | |
1 | Power | W | 5 | |
2 | Material | - | Aluminum Alloy | |
3 | Light Source | - | CREE XPE-Q5 | |
4 | Battery | Battery Type | - | 18650 |
Capacity | mAh | 2200 | ||
Voltage | V | 3.7 | ||
5 | Luminoux Flux | High | Lm | 220 |
Middle | 90 | |||
Low | 10 | |||
Strobe | 220 | |||
SOS | 220 | |||
6 | Working Time | High | h | 2.5 |
Middle | 6 | |||
Low | 55 | |||
7 | Charging Time | h | 6 | |
8 | Waterproof Grade | - | IPX7 | |
9 | Impact Resistant | m | 1.5 | |
10 | Lighting Distance | m | 100 | |
11 | Dimension | mm | Φ45*145 | |
12 | Weight | g | 195 |
1. Battery installation: Unscrew the tail cap, pay attention to the positive and negative poles of the battery,
put the battery into it, and screw the tail cap.
2. Working Modes: Press the switch to enter the high light, tap the switch to change the mode,
high light -> middle light -> low light -> Strobe -> SOS. Press the switch again to turn off the flashlight.
3. Mouse Tail Switch: Long press to enter the high light, release, then long press to change the working mode,
cycle like high light -> middle light -> low light -> Strobe -> SOS.
4. Charging Battery: Put the battery into the special charging box. Pay attention the positive and negative poles of the battery,
when charging, the indicator on the charger is red; when fully charged,indicator changes from red to green. At this time,
the battery can be taken out for use.
● T3 Tactical LED Flashlight
● Mouse Tail Switch
● Lanyard

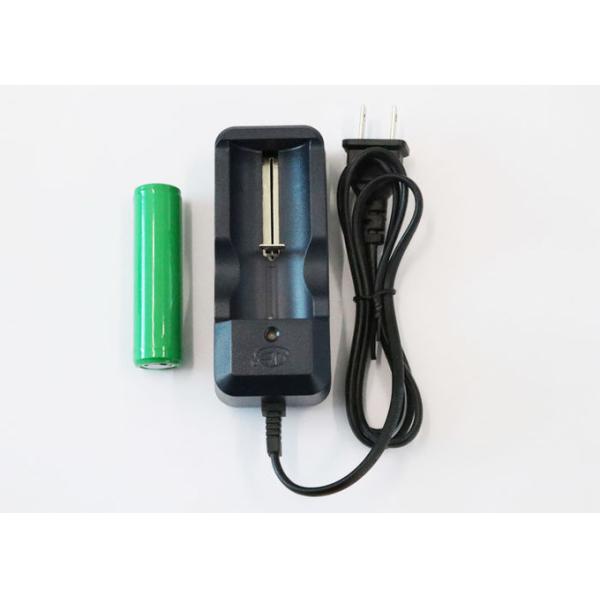

● Charging Box
● User Guide
