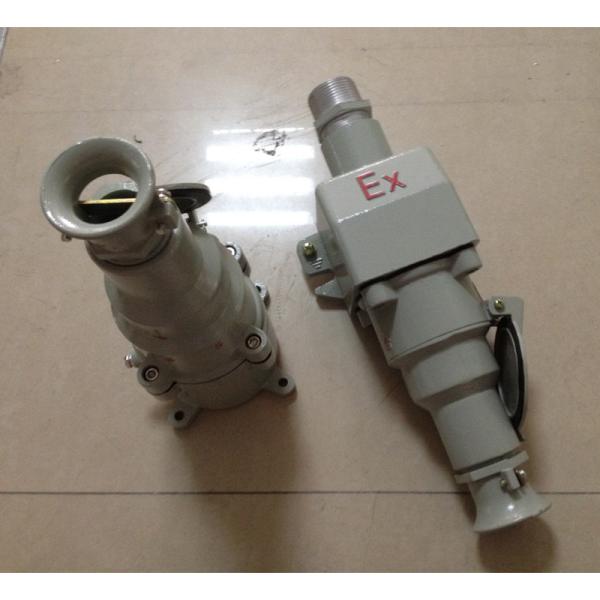

100A Explosion Proof Plug And Socket , IP54 Protection Rated Light Socket
100A Explosion Proof Plug And Socket , IP54 Protection Rated Light Socket
Specifications
Brand Name :
Vican
Model Number :
V-AC-100
Certification :
CNEX,ISO,CE,RoHS
Place of Origin :
China
MOQ :
10
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000 pieces per month
Delivery Time :
10-15 days
Packaging Details :
Carton
Material :
aluminum alloy
Type :
plugs and receptacles
Rated Current :
100A
Rated Voltage :
220V/380V
Ex marking :
ExdeIIBT4 Gb
IP rating :
IP 54
Description

100A explosion proof plug and socket , IP54 protection rated light socket

Description:

Applicable to the rated voltage of 380V or less, rated current 6-16A in the line, as a connection hand tool and lighting power supply, cast aluminum alloy shell, surface spray. The socket has a split and a protective cover, and it is strictly forbidden to open the cover. The grounding contact of the plug is longer than the main contact, so that the ground wire is connected before the main contact is not turned on. When the plug is pulled out, the grounding wire is finally disconnected to ensure safety, and the latch and the switch are made into a chain structure. After the plug is inserted, the swivel sleeve on the plug is rotated to the right to a certain angle, and the inside of the socket is closed, and the plug cannot be pulled out. Conversely, if the swivel sleeve is rotated to the left by a certain angle, the switch is disconnected, and then the plug can be unplugged. The socket is provided with a protective cover. After the plug is unplugged, the protective cover shields the socket to prevent foreign objects from entering, steel pipe or cable wiring. Cable routing must be equipped with cable clamp sealing joint

Specification:

type Rated voltage Rated current Ex marking IP rating
AC-Z15 220/380V 15A ExdeIIBT4 Gb IP 54
AC-X15 220/380V 15A ExdeIIBT4 Gb IP 54
AC-Z16 220/380V 16A ExdeIIBT4 Gb

IP 54
AC-Z32 220/380V 32A ExdeIIBT4 Gb IP 54
AC-X32 220/380V 32A ExdeIIBT4 Gb IP 54
AC-63 220/380V 63A ExdeIIBT4 Gb IP 54
AC-100 220/380V 100A ExdeIIBT4 Gb IP 54

Remark:

AC-Z:Vertically plugged type

AC-X:Deflectedly plugged type
