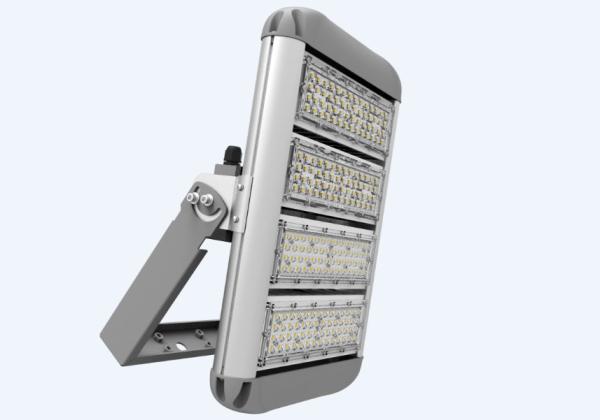

180LPW Exterior LED Lighting / 200W Stadium Light 480V 60°C Environment

PERFORMANCE: 200W Sports Light

Brand of LED Chip: Lumileds 5050 + SS/MW driver.
Color Temperature: 4500~5500K (2500~5500K Optional)
CRI ≥70
Lumen Maintenance: L70>150,000 Hours (Calculated Using Tm-21 Calculator)
Power Factor: 0.95 Minimum

Input Voltage 100-277 VAC (347/480 VAC Optional) Dimming Optional

IP Rating IP66

DownLoad

2019 E-Lite NEW EDGE Modular Premium Flood Light(1...

Specific:

^{Wattage: 200W}

^{Input Voltage: AC 100~277 V/ AC 200~480 V}

^{LED Driver: Sosen / Meanwell}

^{LED Chip: Lumileds}

^{Power Factor: ≥0.95}

^{Efficacy: 180 lm/W}

^{Luminous Flux: 36,000 lm}

^{CRI: ≥70}

^{Lumen Maintenance:L70>150,000 Hrs}

^{Colour Temperature: 4500~5500K}

^{Beam Angle: 30×120° ,40×100° 90° ,110° ,150° 60×100° ,60×120°, 60×150°,70×135°,75×150°,80×150°}

^{IP Rating: IP66}

^{Operating Temperature:-30 to 60°C (-22 to 140°F)}

^{Dimensions:496x365x224mm}

^{Net Weight: 7.9 kg}

ENVIRONMENTAL

Operating Temperature -30 to 60°C (-22 to 140°F)
Storing Temperature -40 to 80°C (-40 to 176°F)
Humidity 15% to 95% RH

PHYSICAL
Fixture Material Aluminum Alloy

Package:

Good Neutral packing,Or packing as you require.OEMs/ODMs are welcomed.

Shippment:

1. FedEx/DHL/UPS/TNT for samples

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 7-25 days for batch goods.

E-lite:

As the 11,000sqm BSI accredited ISO9001 factory, the staff of E-Lite is more than 150, and the professional engineering R&D department and sales team up to 30 persons. All of E-lite’s, produced well through assembling, SMT, precision processing, spray painting and injection mould. And the ETL/DLC/CB/TUV/CE/RoHS/SAA/WEEE certifications have be approved.
