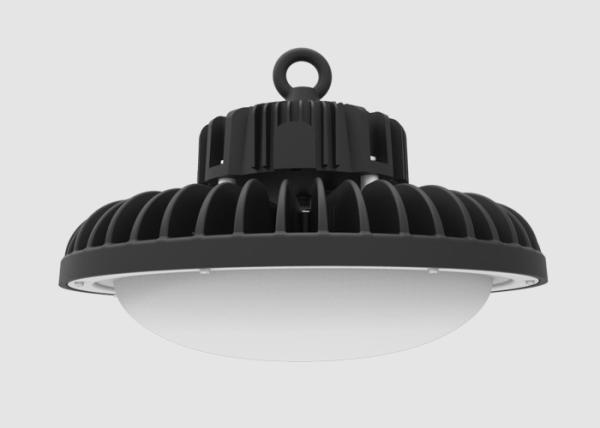

LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
Specifications
Brand Name :
E-lite
Model Number :
Grapheneism™ 140LPM High Bay
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
LED Chip :
Lumileds / Cree
Color Temperature :
4500~5500K (Standard) 2500~5500K (Optional)
Lumen Maintenance :
L70>120,000 hours TM-21 Calculated
Wattage :
200W
Lumens :
28000Lm
IP Rate :
IP65
Description

LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay

■ Features

System light efficacy 140 LPW
40% lighter in weight compared to regular LED highbay,easy installation /maintenance.
Superior electrical and thermal conductivity.
Much stronger and durable than steel,suitable for all tough environment.
Tilted heat sink back design for easy wash-off.
Eco friendly and recyclable.
5 Years warranty
cETLus, DLC4.2 Premium, CE, RoHS, SAA, CB,WEEE, GS

■ Applications

Warehouse/Manufacturing Facilities
Convention Centers/Sporting Arenas
Big-Box Retail Stores
Cold Storage Facilities
Gymnasiums

Download

LED High Bay Lighting Fixture with Graphene Compos...

Wattage 200W
Input Voltage AC 100~277 V/ AC 200~480 V
LED Driver E-Lite / Sosen
LED Chip Lumileds / CREE
Power Factor ≥0.95
Efficacy 140 lm/W
Luminous Flux 28,000 lm
CRI ≥70
Lumen Maintenance L70>120,000 Hrs
Colour Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 90° Ribbed Lens
120° Ribbed Lens
120° Clear Flat Lens
120° Diffused Dome Lens
120° Clear Dome Lens
90° Reflector
100° Reflector
IP Rating IP65 & IP69K
Operating Temperature -30 to 45°C (-22 to 113°F)
Dimensions 325x325x183mm
Net Weight 5.3 kg
Certification ETL DLC CB GS TUV CE ROHS SAA
Warranty 5 years
Material Graphene Composite Hear Sink

LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay

Graphene and graphene composite materials have remarkable physical properties, therefore many promising commercial applications.

It is ultra-light yet immensely tough.
It is 200 times stronger than steel, but it is incredibly flexible.
It is the thinnest material possible as well as being transparent.
It is a superb conductor both electrically and thermally and can
act as a perfect barrier - not even helium can pass through it.

LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay

LED High Bay Gym Lighting / 200W LED Indoor Lighting 0-10V High Bay
