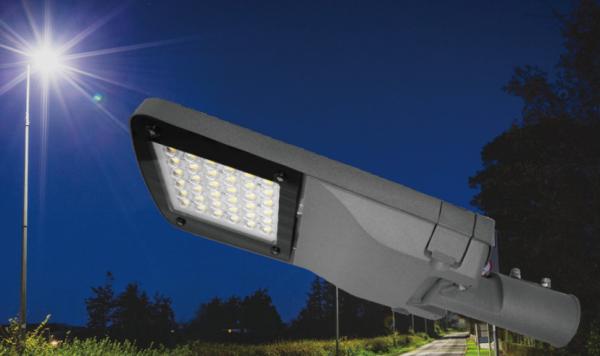

200W LED Cobra Head Street Light / Solar Street Light System All-In-One Design
200W LED Cobra Head Street Light / Solar Street Light System All-In-One Design
200W LED Cobra Head Street Light / Solar Street Light System All-In-One Design
200W LED Cobra Head Street Light / Solar Street Light System All-In-One Design
Specifications
Brand Name :
E-lite
Model Number :
Icon Series Tool Free Die Cast Street Light
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Watt :
200W
LED Driver :
Mean Well / E-Lite
LED Chip :
Lumileds
Efficacy :
135 lm/W
Luminous Flux :
27,000lm
Lumen Maintenance :
L70>100,000 Hrs
Description

200W LED Cobra Head Street Light / Solar Street Light System All-In-One Design​

Features

  • System Light Efficacy 135 LPW.
  • Tool Free Access to Driver Box.
  • Rugged One-piece Die Cast Housing.
  • Easy Installation,Direct Slide-in Mount.
  • IP66.
  • Five Years Warranty.

E-Lite ICON Series LED Street Light 200W.pdf

Input Voltage AC 100~277 V/ AC 200~480 V
LED Driver Mean Well / E-Lite
LED Chip Lumileds
Power Factor ≥0.95
Efficacy 135 lm/W
Luminous Flux 27,000lm
CRI ≥70
Lumen Maintenance L70>100,000 Hrs
Colour Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 100 x 150°(TYPE Ⅲ-S)
80 x 135°(TYPE Ⅲ-VS)
IP Rating IP66
Operating Temperatur -30 to 55°C (-22 to 131°F)
Dimensions 767×300×103mm
Net Weight 6.5 kg

Key Specifications/Special Features:

Solar-powered street lights are a very good example on what can be done with solar energy

A growing number of solar street lighting projects are running in Africa, Asia and the Middle East

Some European and US cities are currently running pilot projects

Concept is straightforward and we shall see more countries migrating this way

Well chosen, solar street lights are cost-effective, cost-saving and reliable solar street light system/garden light is integration design (panel + battery + LED lamp all in one)

Applications:

Solar LED street light

Pathway lighting

Ramp lighting

Sidewalk lighting

Private road lighting

Square lighting

Jogging and bike path lighting

Perimeter security lighting

Farm and ranch lighting

Wildlife area lighting

Park lighting

Gate lighting

Yard lighting

Campus lighting boat dock lighting

Remote area lighting

Parking lot lighting

200W LED Cobra Head Street Light / Solar Street Light System All-In-One Design

Photometrics:

1. 80 x 135° (TYPE Ⅲ-VS)

200W LED Cobra Head Street Light / Solar Street Light System All-In-One Design

2. 100 x 150° (TYPE Ⅲ-S)

200W LED Cobra Head Street Light / Solar Street Light System All-In-One Design
