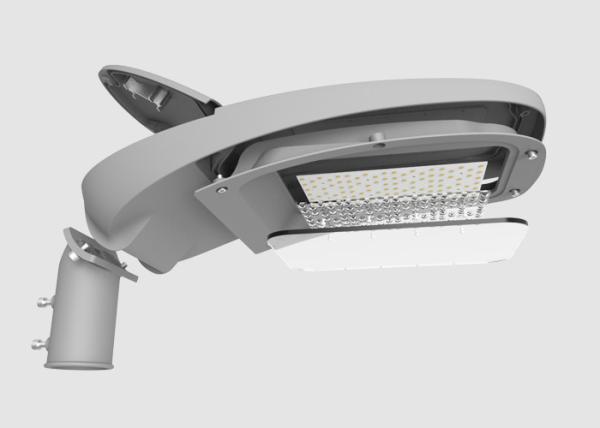

LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount
LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount
LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount
LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount
LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount
LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount
Specifications
Brand Name :
E-lite
Model Number :
Phantom Series Die Cast Street Light
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Watt :
80W
Luminous :
10,800lm
Efficacy :
135 lm/W
CRI :
≥70
Lumen Maintenance :
L70>100,000 Hrs
Colour Temperature :
4500~5500K (2500~5500K Optional)
Description

LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount

Features:

  • System Light Efficacy 135 LPW.

  • Slim Cobra Head Design.

  • One-piece Die-cast Aluminum Housing With Integral Mounting For Strength And Durability.

  • Easy Installation,Direct Slide-in Mount.

  • Tool-free Access To Mounting And Electrical Components.

  • IP66

  • Three to Five Years Warranty

  • cETLus, DLC Premium, CE, RoHS

Phantom Series LED Street Light 80W.pdf

Input Voltage AC 100~277 V
LED Driver Sosen
LED Chip Lumileds
Power Factor ≥0.95
Efficacy 135 lm/W
Luminous Flux 10,800lm
CRI ≥70
Lumen Maintenance L70>100,000 Hrs
Colour Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 70 x 140°(TYPE Ⅱ-S)
70 x 150°(TYPE Ⅱ-M)
IP Rating IP66
Operating Temperatur -30 to 45°C (-22 to 113°F)
Dimensions 616x259x186mm
Net Weight 5.5kg

Typical Applications:

  • Road Way Lighting

  • Walkway Lighting

  • Plaza Lighting

  • Area Lighting

LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount

Photometrics

1. 70 x 150° (TYPE Ⅱ-M)

LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount

2. 70 x 140° (TYPE Ⅱ-S)

LED Cobra Head Street Light 80W Exterior Pole Fixtures Direct Slide In Mount
