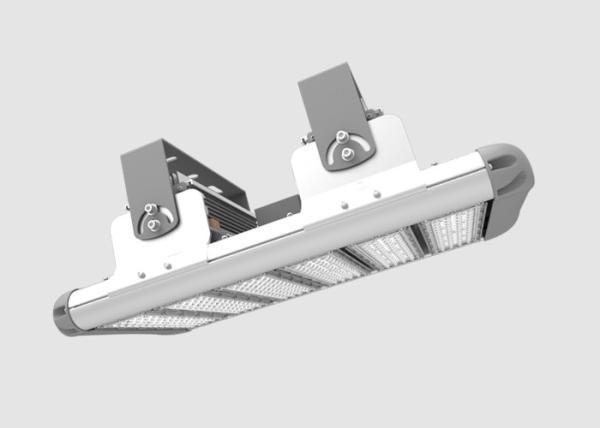

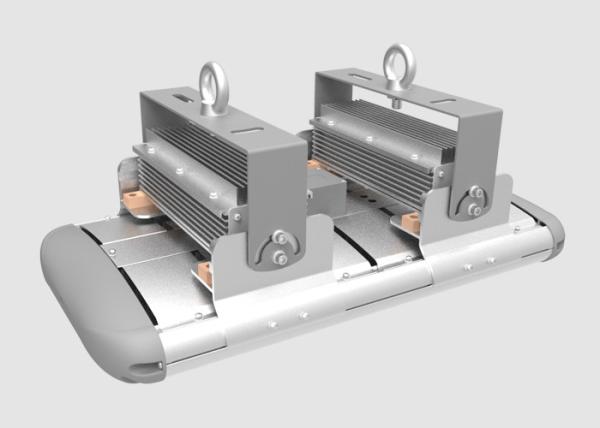

80°C High Temperature Resistance LED Lights / 300W High Bay for steel mills
80°C High Temperature Resistance LED Lights / 300W High Bay for steel mills
80°C High Temperature Resistance LED Lights / 300W High Bay for steel mills
80°C High Temperature Resistance LED Lights / 300W High Bay for steel mills
Specifications
Brand Name :
E-lite
Model Number :
Edge™ 80°C High Bay
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Temperature :
80°C/176°F
Voltage :
347V/480V
LED Chip :
Osram / Lumileds
LED Driver :
MW
Wattage :
300W
Efficiacy :
130lm/W
Description

80°C High Temperature Resistance LED Lights / 300W High Bay for steel mills

The EDGE-HT80 is an explosion proof fixture that allows it to be mounted and used in a extremely environment where high temperature. .

  • IP67 weather protection rating allows it to be used indoors or outdoors and protects the light from coming into contact with harmful dust
  • Delivers 130 lumens per watt
  • Operating Temperature from -30°C to +80°C
  • Available in 50W-450W.
  • Lighting for petrochemical complexes, painting facilities, offshore platforms, and high heat locations

Product Specification:

Wattage 50W 100W 150W 200W 300W 450W
Modular Quantity 1 2 3 4 6 9
Input Voltage AC 100~277 V/ AC 200~480 V
LED Driver HT80°C(MW driver)
LED Chip Osram / Lumileds
Power Factor ≥0.95
Efficacy 130lm/W
Luminous Flux 6,500lm 13,000 lm 19,500 lm 26,000lm 39,000lm 58,500lm
CRI ≥70
Lumen Maintenance L70>100,000 Hrs ( Tm-21 Calculation )
Colour Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 30x100° 60x100° 30° 90° 110° 150° 70x130° 70x135° 75x145° 73x133° 60x150°
IP Rating IP66
Operating Temperature -30 to 80°C (-22 to 176°F)
Dimensions 273x366x245mm 308x366x245mm 402x366x245mm 496x366x245mm 684x366x245mm 966x366x245mm
Net Weight 5.2 kg 7.8 kg 9.3 kg 10.7 kg 16.5 kg 28 kg
Certification ETL DLC CB GS TUV CE ROHS SAA
Warranty 5 years
Material Aluminum Alloy

80°C High Temperature Resistance LED Lights / 300W High Bay for steel mills

TYPICAL APPLICATIONS

  • Heavy Industry
  • High Temp Applications
  • Indoor Sports Ground
  • Car Dealership
  • General Industrial Applications
  • Warehouse

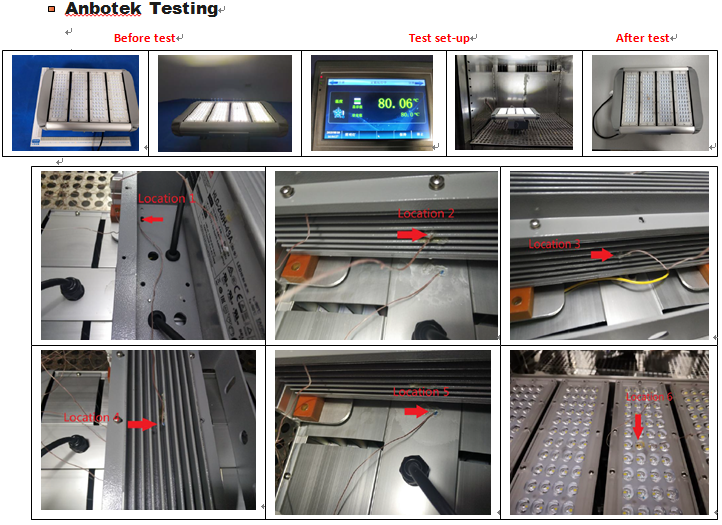

Appendix 1: The temperature of each required point

High Chamber Test

0H

 36H 72H
1.Power supply cavity 29.33°C 83.82°C 83.85°C
2.Power supply radiator right center 29.14°C 83.44°C 83.49°C
3.Power supply radiator left center 29.00°C 82.47°C 82.35°C
4.Power supply radiator upper center 29.03°C 82.83°C 82.85°C
5. Power supply radiator back side center 29.16°C 84.92°C 85.03°C
6. Aluminum substrate light source center 33.22°C 98.87°C 99.24°C
7. Radiator front position 30.40°C 93.92°C 94.3°C
8.Point Tc 29.30°C 83.80°C 83.83°C
9.The chamber temperature 35.01°C 80.70°C 80.37°C

80°C High Temperature Resistance LED Lights / 300W High Bay for steel mills

80°C High Temperature Resistance LED Lights / 300W High Bay for steel mills
