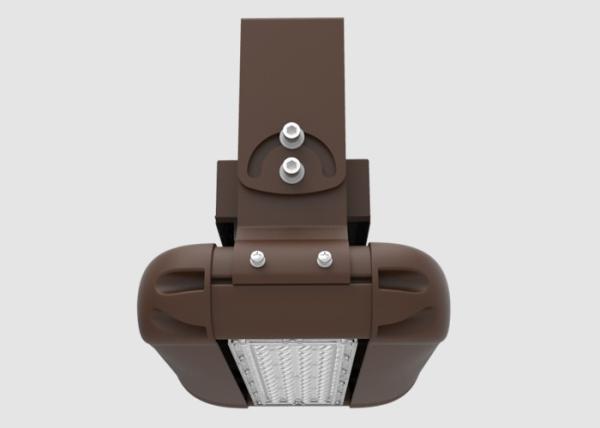

Modular High Bay Workshop Lights / 165 LPW Super Brightness Led High Bay Canopy Light
Modular High Bay Workshop Lights / 165 LPW Super Brightness Led High Bay Canopy Light
Modular High Bay Workshop Lights / 165 LPW Super Brightness Led High Bay Canopy Light
Modular High Bay Workshop Lights / 165 LPW Super Brightness Led High Bay Canopy Light
Specifications
Brand Name :
E-lite
Model Number :
New Edge Modular High Bay
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Wattage :
120W
Lumens :
19,200 lm
Efficacy :
165 lm/W
Lumen Maintenance :
L70>150,000 Hrs
Beam Angle :
40×1100° 60×100° 90° 110° 150°
Operating Temperature :
-30 to 60°C (-22 to 140°F)
Description

Modular High Bay Workshop Lights / 165 LPW Super Brightness Led High Bay Canopy Light

FEATURE:

·System Light Efficacy 160~165 LPW
·Ultra Bright, Up to 96,000Lm
·Flexible, Modular Design
·Multiple Choice of Optical Lenses
·Easy Installation & Maintenance
·Five Years Warranty
·IP66

Wattage 120W 200W 300W 400W 600W
Input Voltage AC 100~277 V/ AC 200~480 V
LED Driver Sosen
LED Chip Lumileds
Power Factor ≥0.95
Efficacy 160-165lm/W
Luminous Flux 19,200 lm 33,000 lm 49,500 lm 66,000 lm 96,000 lm
CRI ≥70
Lumen Maintenance L70>150,000 Hrs ( Tm-21 Calculation )
Colour Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 40×1100° 60×100° 90° 110° 150°
IP Rating IP66
Operating Temperature -30 to 60°C (-22 to 140°F)
Dimensions 221x366x145mm 308x366x145mm 402x366x145mm 496x366x145mm 590x366x145mm
Net Weight 5.4 kg 6.5 kg 7.5 kg 7.9 kg 12.5 kg
Certification ETL DLC CB GS TUV CE ROHS SAA
Warranty 5 years
Material Aluminum Alloy

FAQ:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.


Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
