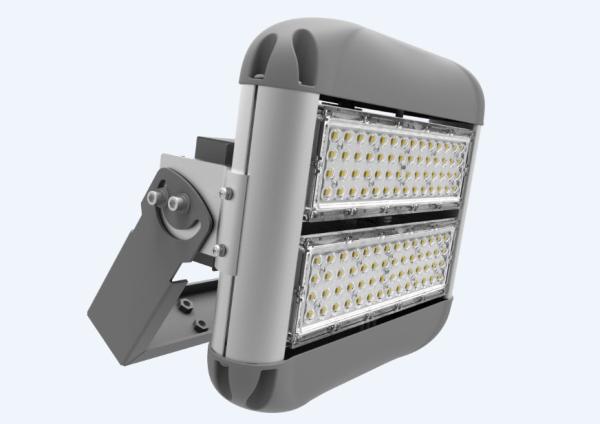

Energy Saving 80% High Lumen 100W Outdoor Led Floodlight MW Driver​

E-Lite LED Area Lighting System – 100,000 Hours Commercial Grade Sports Lighters
Replace your old outdoor sports lights or 250 watt metal halide lights with a high efficiency LED area light. Save money and replace bulbs less often with a 100,000 hour rated LED. Fixture is also ideal for new installations. Light up an area of your house or building for safety and aesthetics.

Features:

1. IP66 waterproof grade, suitable for Indoor and outdoor court, construction site, tower crane, workshop, park, playground ETC.

2.Resist Lightning surge voltage 10KV.

3.High lumen efficiency up to 140lm/w.

4. Long lifespan 100,000 hours, 6-8 years if 12hrs/day working.

5. High thermal conductivity housing aluminum to assure strong dissipation.

6. Stable performance external constant-current driver, failure rate lower than 1‰.

7. Eco-friendly, no hazardous substance.

8. ETL/DLC/CB/CE/RoHS standard.

Catalogue:

2019 E-Lite EDGE High Bay - Flood(140LPW 60D).pdf

Specific:

• Input Voltage Range: 100-277VAC

• Frequency: 50/60Hz

• 10KV Surge Protector

• DLC Rated: 100W (50-450W available)
  >THD(%): <20

• Dimmability: 0-10V Compatible
  Efficiency: Up to 140lm/W

• Color Rendering Index (CRI): 70+
  Color Temperature (CCT): 5000K

• Lens Materials: PC Optics 13 types of beam Angle

• Housing Materials: Aluminum

• IP Rating: IP66 Outdoor Rated

• Certification: ETL DLC CB CE RoHS

• Life Span: 100000+ Hours

• Warranty: 5 Years

• Life Time 100,000 Hours

• UL Listed

• LM90 – 360000 Hours

• Warranty 5 Years Rock Solid

E-Lite lighting fixture selection considerations:

1. High power: Since the height of the gantry crane is about tens of meters, it has the characteristics of wide adaptability and large working range. In order to meet the illumination requirements of the working surface, the power of the general luminaire should be above 100-450W.​

2. Long service life: Due to the high height of the gantry crane, it is not easy to repair after the lamp is damaged, so it is necessary to install a lamp with a long service life.

3. Safe and reliable: There are many kinds of goods on the port terminal and the environment is complex. It is necessary to configure safe and reliable lighting fixtures to ensure the lighting safety of the port terminal and prevent fire events caused by short-circuit of the lamps.

4. High degree of protection: The port is in a humid environment all year round, so the waterproof and dustproof level of the lamp is required to be high. The lamp with high protection level can prevent water vapor from entering the inside of the lamp body and prolong the service life of the lamp. The lamp housing is made of high-quality aluminum alloy die-casting, and the outer surface is treated by high-pressure electrostatic spray to improve the overall anti-corrosion level of the product.

5. The whole lamp has an independent heat dissipation system, the drive is external, and the power supply is internally sealed with a rubber seal to provide heat dissipation. Waterproof, the protection level of the luminaire reaches IP66, and there is no fear of the wet environment of the port terminal.

6. Good light transmission: due to the relatively heavy fog at the port terminal, in order to meet the illumination requirements of the port terminal working surface, it is necessary to use light-transparent lighting fixtures.
