Super Bright Security flood lighting / Exterior outdoor parking flood fixture IECEE
Super Bright Security flood lighting / Exterior outdoor parking flood fixture IECEE
Super Bright Security flood lighting / Exterior outdoor parking flood fixture IECEE
Super Bright Security flood lighting / Exterior outdoor parking flood fixture IECEE
Super Bright Security flood lighting / Exterior outdoor parking flood fixture IECEE
Super Bright Security flood lighting / Exterior outdoor parking flood fixture IECEE
Specifications
Brand Name :
E-lite
Model Number :
EO-ED-200
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Sensor :
Photocell available
Mount Kits :
Slip fitter
Brand of Chips :
Lumileds 3030
PF :
>0.95
Maintenance :
L70>100,000 Hrs
Temperature :
60°C/140°F
Description

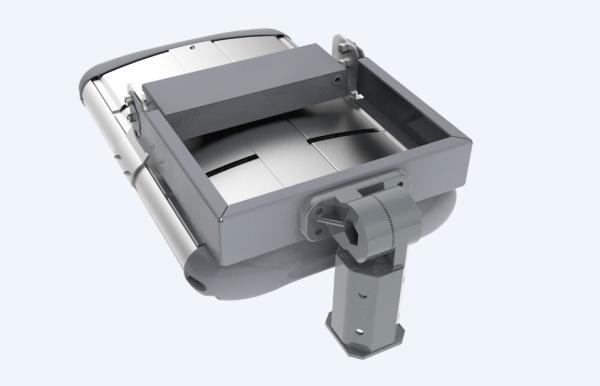

Super Bright Security flood lighting / Exterior outdoor parking flood fixture IECEE

E-lite Flood description:

-- PHOTOCELL OPTIONAL - EDGE LED parking lot flood lights comes with a dusk-to-dawn photocell sensor which detects ambient light and powers the LED on/off automatically as sun rise or fall.

-- Don’t worry about Led parking lot led shoebox light fixture very hot, environment 60℃ resistance and heat sink design make the lamp weight lighter and have better heat dissipation.

-- High power whte lighting - This 200W LED Parking Lot Lights Fixture output 28000 Lumens at 5000K Daylight White. That is a staggering LED Efficiency of 140lm/w, additional 180lm/w available...

-- Say No For flicker! High Quality LED lamp bead,led shoebox lights Environment protection without UV or IR radiation.

-- 5 years warranty for light fixture, 7 years warranty for MW driver. 10 years warranty upon cients special request.

Catalogue:

2019 E-Lite EDGE High Bay - Flood(140LPW 60D).pdf

Specific:

Power

 200W

Lumen

28,000lm

G.W

7.9KG

Input Voltage

100-277V/347-480V

Power Factor

>0.95

CRI

≥70Ra

Driver

Meanwell / Inventronics

Beam

Angels

40x100° 60x100° 20° 30° 50° 90° 110° 150° 70x130° 70x135° 75x145° 60x150° 73x133°

CCT

3000K/4000K/5000K/5700K/6500K (others available)

Dimming Options

0-10V dimming / Zigbee / IOT

Zigbee

Control

On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP)

Photocell

Twist-lock photocell available

SPD

10KV

IP Rating

IP66

Operating Temp

-30°C- 60°C / -22°F - 140°F

Lifespan

>100,000 Hrs (L70 @ 25°C)

Warranty

7-year warranty for 100-277V version, 5-year warranty for 347-480V version

Certificates

ETL/DLC/CB/CE/RoHS/WEEE/SAA

E-Lite lighting fixture selection considerations:

1. High power: In order to meet the illumination requirements of the working surface, the power of the general luminaire should be above 200W.

Since the height of the gantry crane is about tens of meters, it has the characteristics of wide adaptability and large working range.

2. Long service life: It is necessary to install a lamp with a long service life L70(10K)>150000hrs. In case of the high height of the gantry crane, it

is not easy to repair after the lamp is damaged,

3. Safe and reliable: It is necessary to configure safe and reliable lighting fixtures to ensure the lighting safety of the port terminal and prevent fire

events caused by short-circuit of the lamps. There are many kinds of goods on the port terminal and the environment is complex.

Application of Multifunctional 7 years warranty 100-277V and 347V-480V optional 200w led high bay & flood light:

Large outdoor fields - stadiums, riding arenas, baseball and football fields, pool
Large indoor sport facilities, courts, concert halls and arenas
Other large outdoor areas: parks, docks, shipyard,airport
Other large-scale landscape lighting.

Super Bright Security flood lighting / Exterior outdoor parking flood fixture IECEE

EDGE Flood optional:

Housing: 6063 extrusion aluminum alloy

Thermal conductivity: 225W/m.k

LED: Lumileds 3030 SMD

CRI: RA>70(80/90 option)

SDCM:<6 step

THD: <15

Dirver: Meanwell XLG/HLG

Protection: OTP,OCP,OVP,SCP

Surge protection: 6kv, 10kv or 20kv

Impact test: IK08
