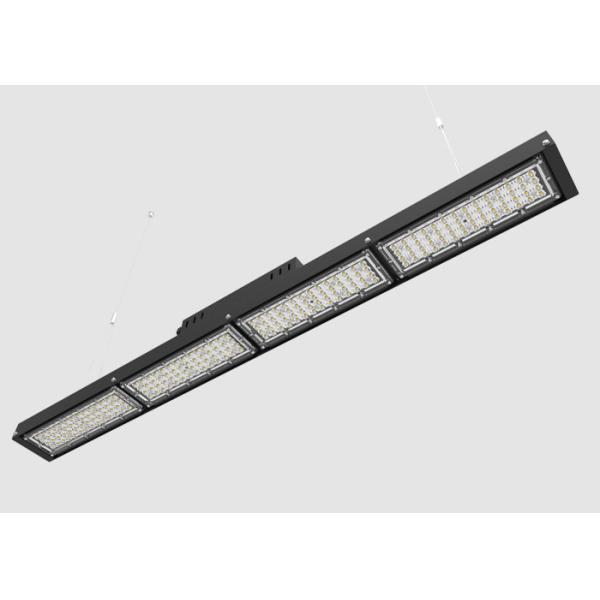

Suspended Linear Channel Light Linkable Dimmable Office Lighting Fixture
Suspended Linear Channel Light Linkable Dimmable Office Lighting Fixture
Suspended Linear Channel Light Linkable Dimmable Office Lighting Fixture
Suspended Linear Channel Light Linkable Dimmable Office Lighting Fixture
Suspended Linear Channel Light Linkable Dimmable Office Lighting Fixture
Suspended Linear Channel Light Linkable Dimmable Office Lighting Fixture
Specifications
Brand Name :
E-lite
Model Number :
EO-LN-Series
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Shape :
Linear high bay
Beam angle :
30x120D
Dimmale :
0-10V available
LED Chip :
Lumileds
Efficacy :
130 lm/W
PF :
>0.95
Description

Suspended Linear Channel Light Linkable Dimmable Office Lighting Fixture

Installation:

1. Installation must be completed by a qualified electrician in accordance with all recognised local and national electrical and construction regulations.

2. Ensure that the power is OFF during installation and that power cannot be unexpectedly reconnected.

3. The light fitting is designed to operate with a 100V-277V 50Hz/60Hz electricity supply. Do not use the light fitting if damaged or if the LED protective cover is missing or damaged. Do NOT open or remove the driver on the rear of the unit or remove the front protective cover. There are no serviceable parts inside.

4. This light fitting is rated IP65 (see Technical Features table) – suitable for indoor and outdoor use, on industrial and commercial applications.

5. Do NOT cover the light source or heat-sink.

6. To avoid damage; do NOT lift, carry or let the light fitting hang, by its cable.

7. Suitable to be mounted suspended by wires.

8. Failure to comply with the recommendations and instructions provided herein may cause damage to the light fitting or present a risk of injury or death (e.g. short-circuit, fire, burns or electric shock). Any modifications to the light fitting, incorrect installation or unsuitable positioning may be dangerous to users and may cause the warranty to become void.

9. Figure images are for illustrative purposes only. Please note the size of the luminaire differs depending on product wattage.

Specification:

Brand

E-Lite

Manufacturer Part Number

EL-LN-50

Light Source

LED

Lumens

6,500 Lumens

Wattage

50 W

Lumens Per Watt

130 lm/W

LED Features

Dimmable, Great Heat Dissipation, Instant On, Long Life Span, Warranty

Approvals / Listings

DLC Premium, FCC Compliant, UL Listed

Voltage

AC100-277V

Beam Angle

110 Degrees

CRI

80

Bulb Shape

Linear High Bay

Base Type

Hardwire

Warranty

5 Year

Life Hours

50,000 Hours

Mounting Options

Suspension Mount

Country of Origin

China

Case Quantity

1

Clearance

Non-Clearance

Suspended Linear Channel Light Linkable Dimmable Office Lighting Fixture

Compact, powerful and efficient - The Compact Tough Linear High Bay is built to last in the most rigourous industrial workplace. Offering a high lumen output for its size at an incredibly efficient 130lm/W, the Compact Tough is IP65 dust-proof and IK10 shock-resistant, making it ideal for warehouses, production facilities, factories and many other industrial environments.

This model has a light output of 130 LPW and a 30x100 assymetrical degree beam angle.

Widely Application:

Warehouses, Factories, Gyms, Manufacturing facilities, Storage facilities, Retail Spaces.

Recreation Centers, Hangars, Garages , Exhibition Hall, Natatorium, Airport and other areas.

Product tags

suspended linear led fixture

,

linear suspended light fixture

,

suspended linear led lighting
